AXLE LOCK (TRU–LOK™) — IF EQUIPPED
The Axle Lock switch is located on the lower center of the
instrument panel.
This feature will only activate when the following con-
ditions are met:
•
Key in ignition, vehicle in 4L (Low) range.
•
The vehicle must be traveling at 10 mph (16 km/h) or
less.
To activate the system, press the switch once to lock the
rear axle only (the REAR LOCK indicator light will
illuminate), press the switch again to lock the front axle
(the FRONT LOCK indicator light will illuminate). Once
the rear axle is locked, pressing the switch again will lock
or unlock the front axle.
NOTE: The indicator lights will flash until the axles are
fully locked or unlocked. A chime will sound three times
and the indicator lights will continue to flash at a
different rate if the key is removed while the axles are still
in the locked position.
To unlock the axles, pull up on the switch.

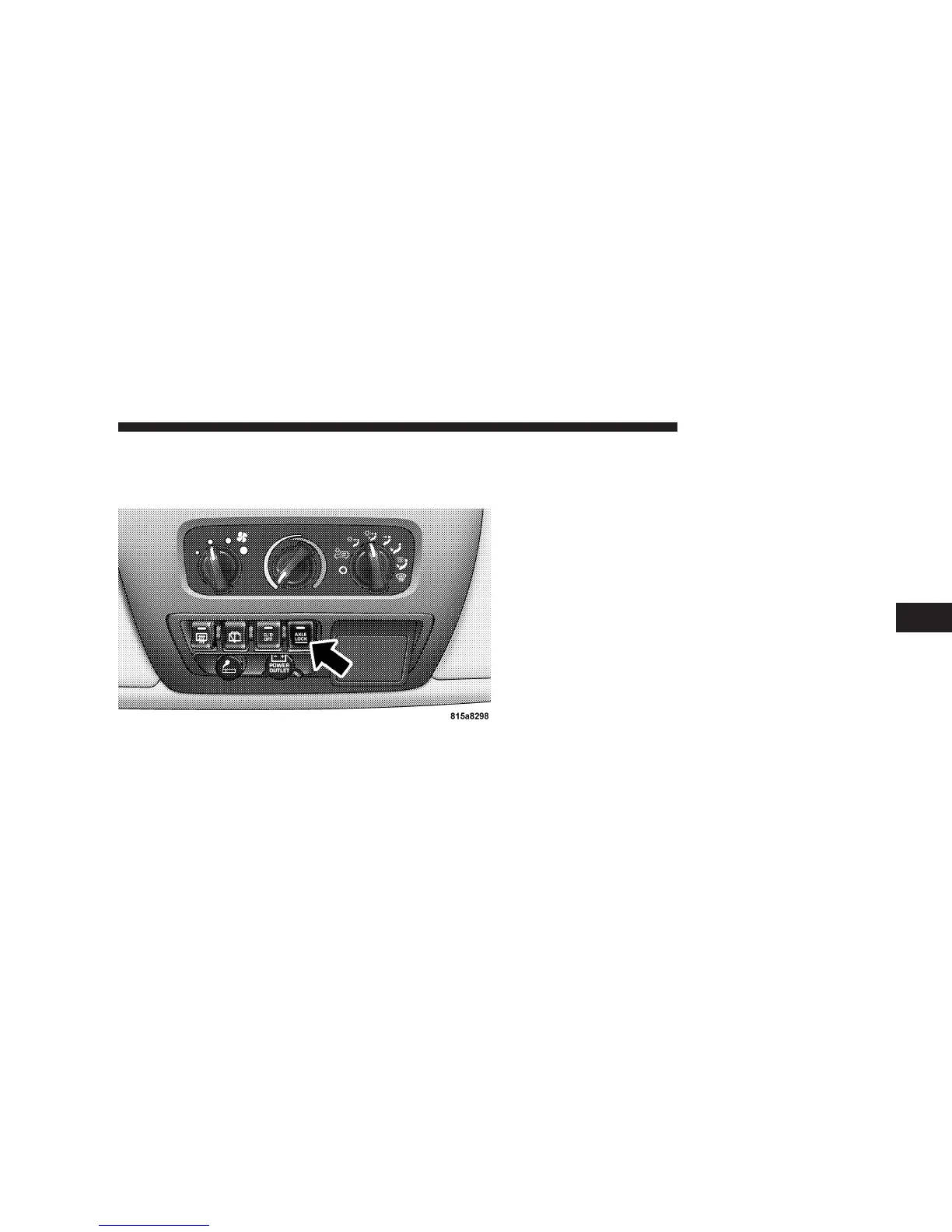

Axle Lock Switch
STARTING AND OPERATING 195
5
