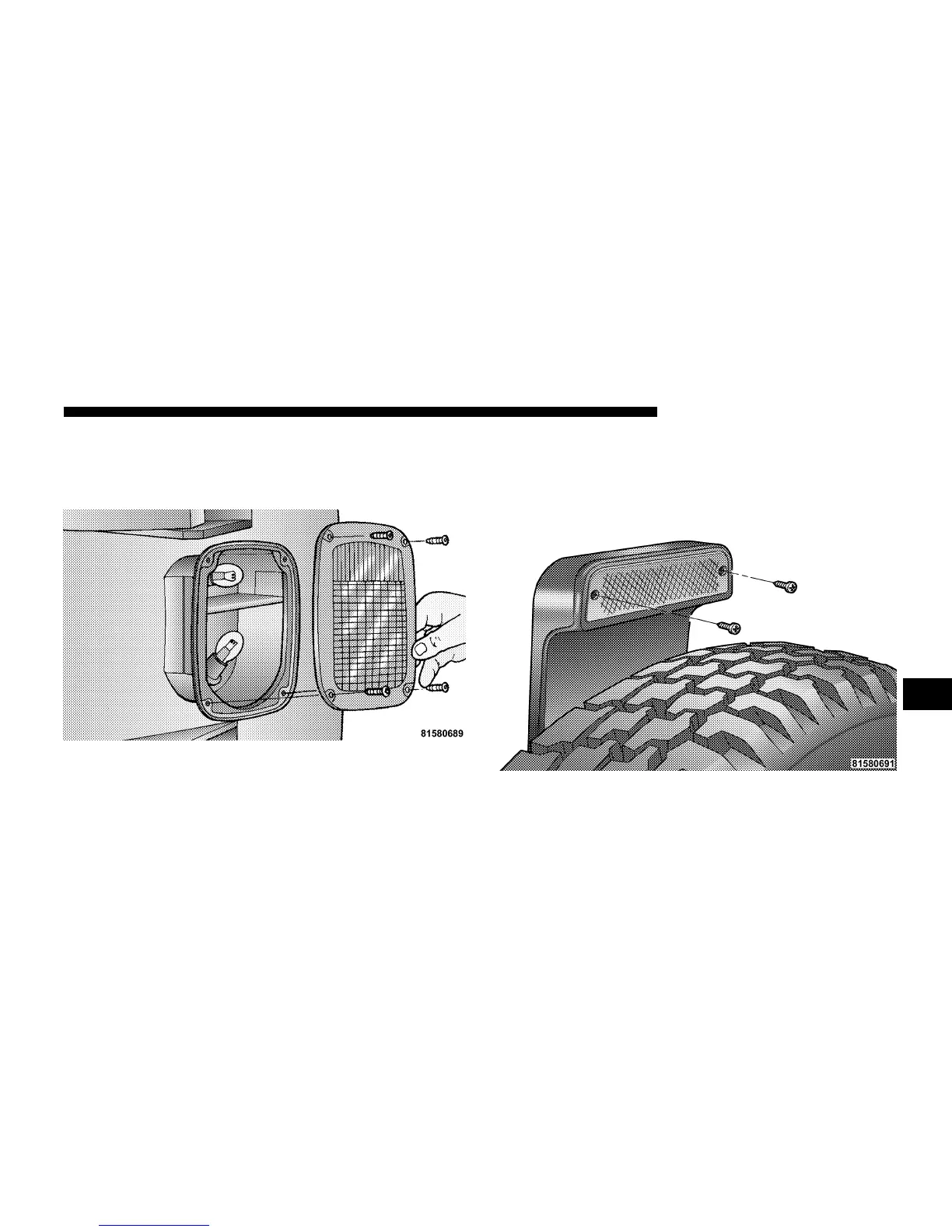

Rear Tail, Stop, Turn Signal, and Back-Up Lights
1. Remove the screws attaching the lens to the tailight
housing.
2. Separate the lens from the housing.
3. Push the bulb in, turn it counter-clockwise 1/3 turn,
then remove it from the housing, and replace.
Center High Mounted Stop Light (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate. Remove the two screws hold-
ing the lens in place. Take the lens off and pull the bulb
from the socket.
MAINTAINING YOUR VEHICLE 313
7
