Front Panel(s) Installation
NOTE: The front panel (s) must be positioned properly
to ensure sealing. Set the panels on the windshield frame
so that there is no overhang. Also, make sure that the
panels are sitting flush with the body.
1. Install right panel first, then the left panel.
2. Reinstall panel(s) using the same steps for removal in
reverse order.
Front Panel(s) Installation Only (With Rear Hard
Top Removed)

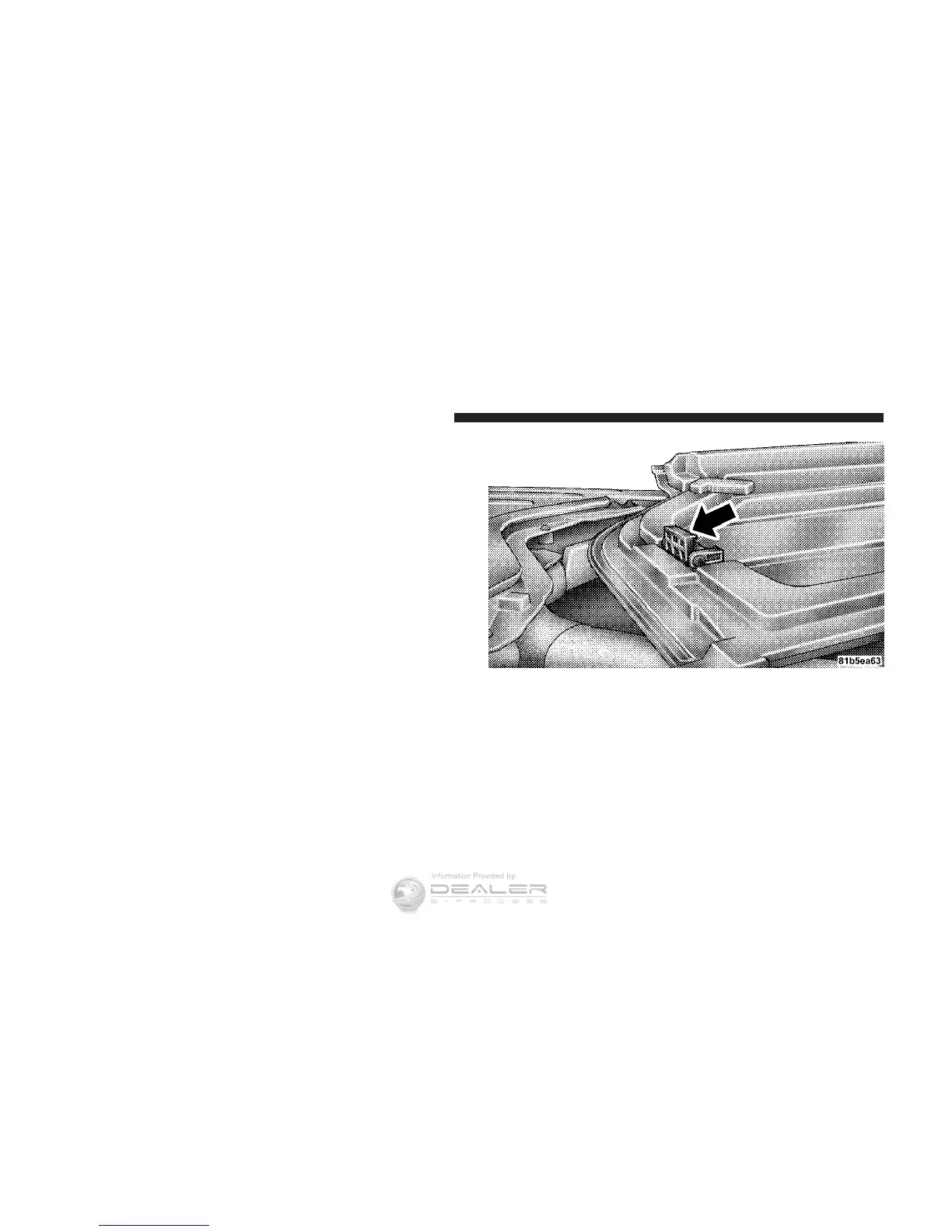

1. Turn left and right panels over and move spacer block
(located on rear of panel) upward 90 degrees.
NOTE: The front panel (s) must be positioned properly
to ensure sealing. Set the panels on the windshield frame
so that there is no overhang. Also, make sure that the
panels are sitting flush with the body.
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
