Jensen JHD40BT User Manual

JHD40BT

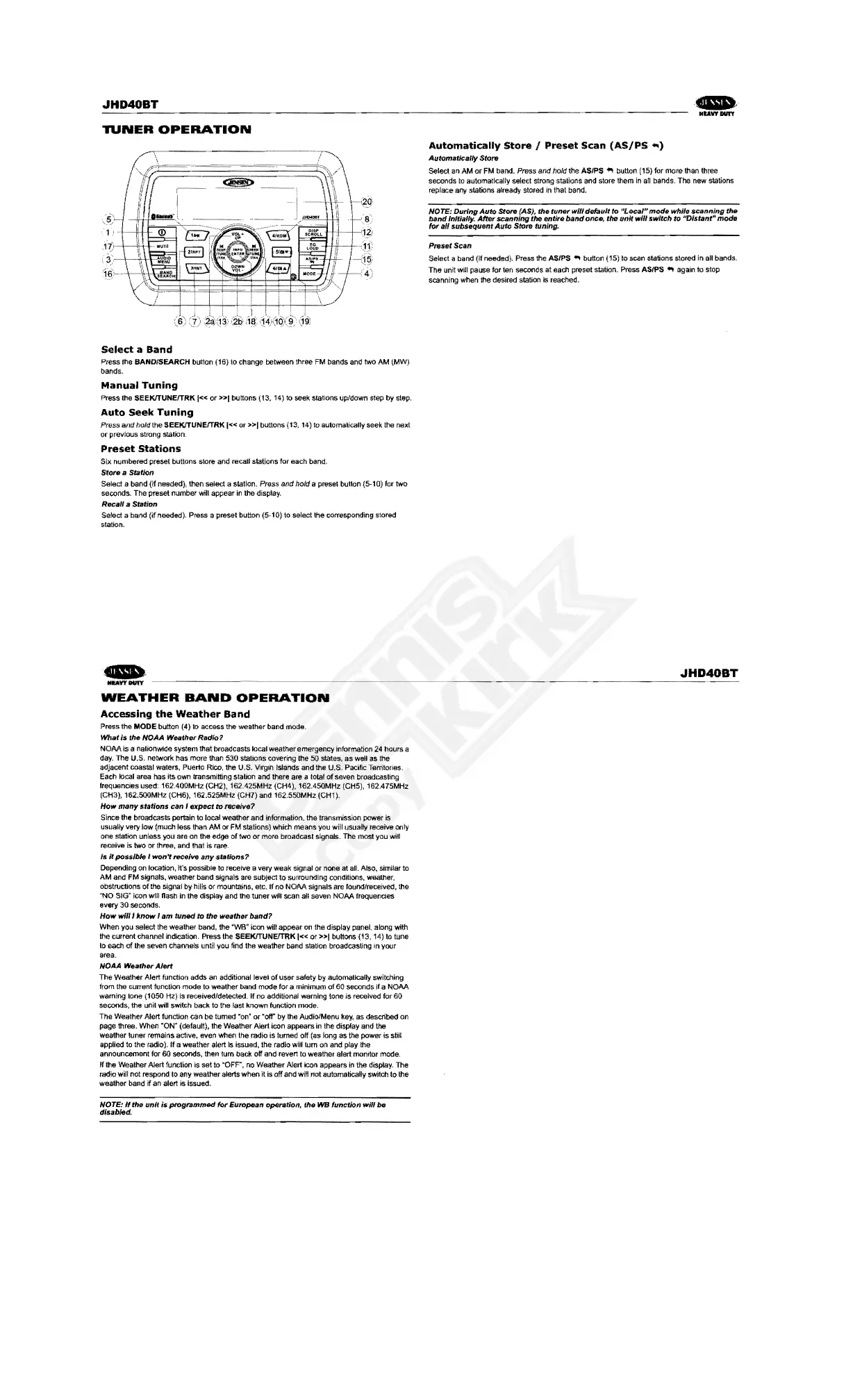

'tUNER OPERATION
Automatically Store / Preset Scan (AS/PS ... )
Automatically Store
Select an AM or FM band. Pross and hold the AS/PS __ button (15) for mote than three
seconds to automatically select strong stations and store them in all bands. The new stations
replace
any stations already stored in that band.
NOTE: During Auto Store (AS), the tuner will default to "Local" mode while scanning the
band Initially. After scanning the entire band once, the unit will switch to "Distanfl mode
for all subsequent Auto Store tuning.
Preset Scan
Select a band (if needed), Press the ASIPS ... button (15) to scan stations stored in all bands.
The unit will pause for ten seconds
at each preset station, Press AS/PS ~ again to stop
scanning
when the desired station is reached.
Select a Band
Pressllle BAND/SEARCH button (16) to change between three FM bands and two AM (MW)
bands.
Manual Tuning
Press lIle SEEKITUNEfTRK 1« or »1 buttons (13,14) to seek stations up/down step by step.
Auto Seek Tuning
Pross and hoJdthe SEEK/TUNEffRK 1« or »1 buttons (13, 14) to automatically seek the next
or previous strong station.
Preset Stations
Six numbered preset buttons store and recall stations for each band.
Store a Station
Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two
seconds. The preset number will appear in the display.
Recall a Station
Select a band (if needed). Press a preset button (5-10) to select the corresponding stored
station.
tI\'ID. JHD40BT
~~ - .... ~---------------- .... ---~---------------~.-~------.--------~---------------------------------------
WEATHER BAND OPERATION
Accessing the Weather Band
Press the MODE button (4) to access the weather band mode.
What Is the NOAA Weather Radio?
NOAA is a nationwide system that broadcasts local weather emergency information 24 hours a
day. The U.S. network has more than 530 stations covering the SO st:.rtes, as well as the
adjacent coastal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific TenitOri8S,
Each local area has its own transmitting station and there are a total of seven broadcasting
frequencies used: 162.400MHz (CH2), 162.425MHz (CH4). 162.450MHz (CH5), 162.475MHz
(CH3),
162,SOOMHz (CH6), 162,525MHz (CH7) and 162.550MHz (CH1).
How many stations can I expect to receive?
Since the broadcasts pertain to local weather and information, the transmission power is
usually very low (much less than AM or FM stations) which means you will usually receive only
one station unless you are on the edge of two or more broadcast Signals. The most you will
receive
is two or three. and that is rare.
Is itpossible I won't receive any stations?
Depending on location, rt's possible to receive a very weak signal or none at aiL Also, similar to
AM and FM signals, weather band signals ar'e SUbject to surrounding conditions, weather,
obstructions
of the signal by hills or mountains, etc. tf no NOM signals are found/received, the
~NO SIG" icon will flash in the display and the tuner will scan all seven NOAA frequencies
every
30 seconds.
How will Jknow I am tuned to the weather band?
When you select the weather band, the WWB~ icon will appear on the display panel, along with
the current channel indication. Press the SEEKfTUNEfTRK
1« or »1 buttoos (13, 14} to tune
to each of the seven channels until you find the weather band station broadcasting In your
area.
NOAA Weather Alort
The Weather Alert function adds an additional level of user safety by automatically switching
from the current function mode to weather band mode for a minimum of
60 seconds if a NOAA
warning tone (1050 Hz) is received/detected. If no additional warning tone is received for 60
seconds, the unit will switch back to
the last known function mode.
The Weather Alert function can be turned ~on" or MOff' by the AudiolMenu key, as described on
page three, When ·ON" (defaufi), the Weather Alert icon appears in the display and the
weather tuner remains actIve, even
when the radio is lumed off (as long as the power is still
applied
to the radio). If a weather alert is issued. the radio wiil turn on and play the
announcement for 60 seconds, then tum back off and revert to weather alert monitor mode.
If the Weather Alert function is set to ~OFP', no Weather Alert icon appears in the display. The
radio will not respond to any weather alerts when it is off and will not automatically switch to the
weather
band if an alert is issued.
NOTE: /fthe unit is _rammed for European operallon, the WB function will be
disabled,

Jensen JHD40BT Specifications

General

Brand	Jensen
Model	JHD40BT
Category	Car Receiver
Language	English
