13

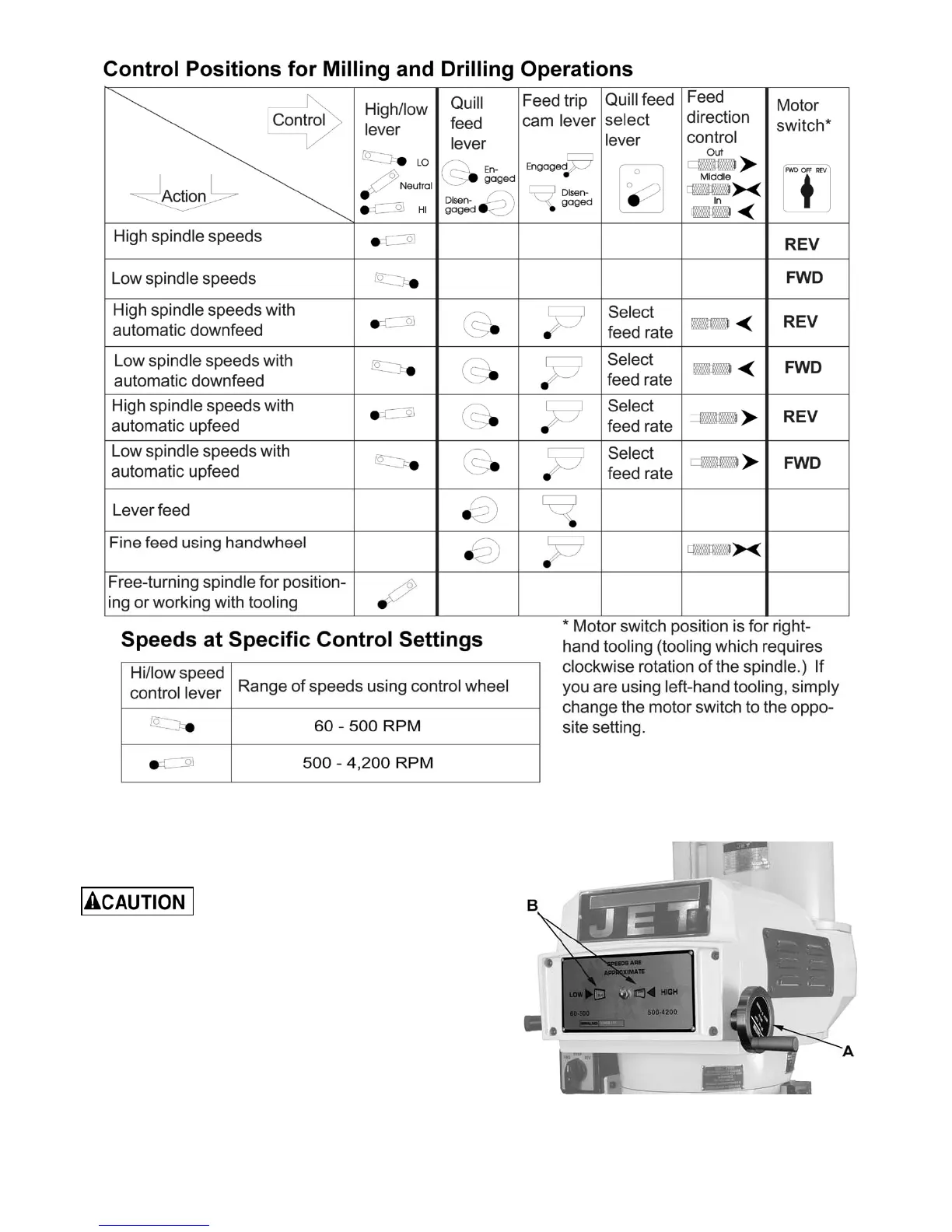

Figure 6
Variable Speed Control
Change speed only while the
spindle is turning.
The vari-speed handwheel (A, Figure 7) is used to
control the spindle speed. The speeds for high and
low speed ranges are displayed on the panel on the
front of the mill head (B, Figure 7).
All speed changes must be made while the motor is
running. Attempting speed changes without the motor
running can result in damage to the drive
mechanism.
Figure 7
