Jetmaster UNIVERSAL 700D Installation & Operation Instructions

10 11

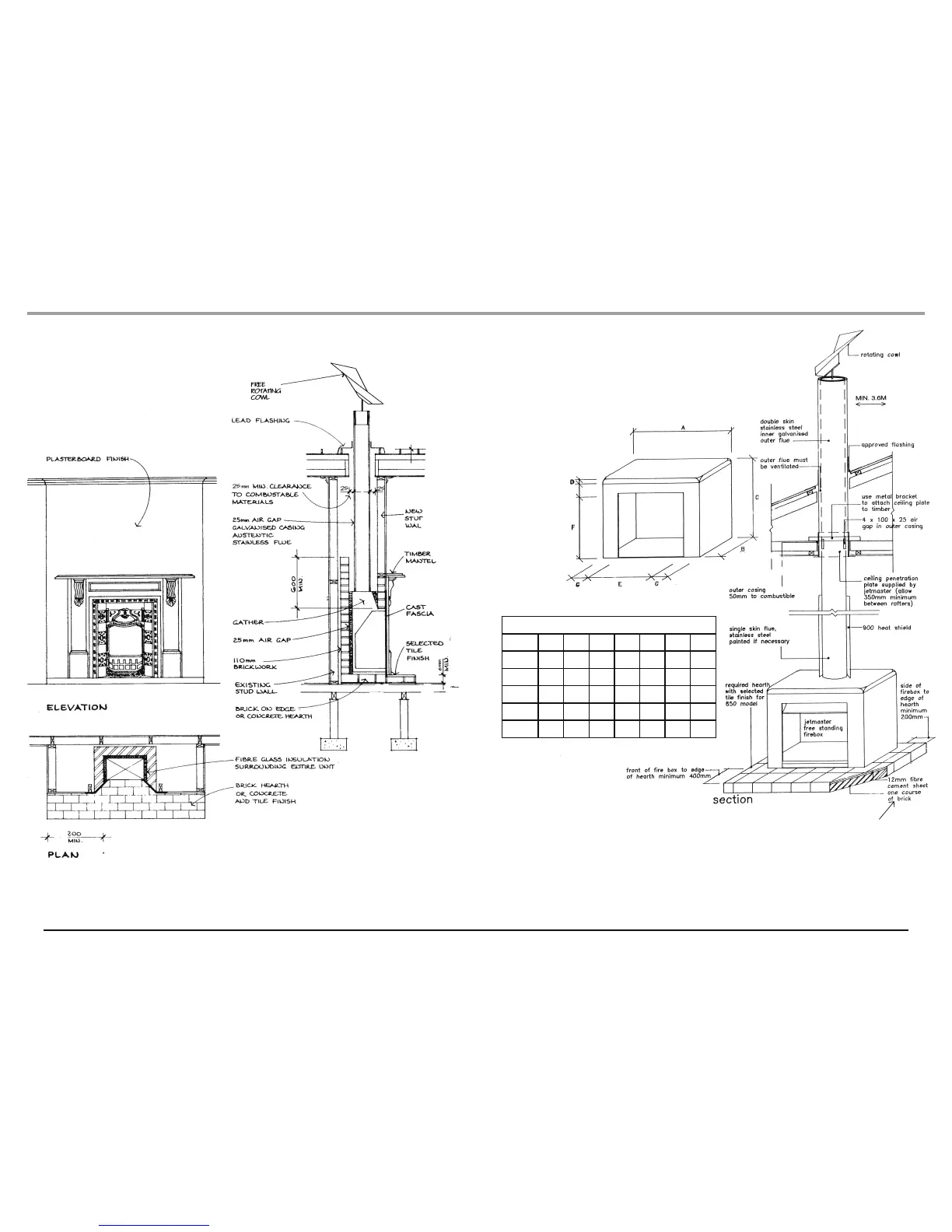

Construction Specifications - Jetmaster Traditional Edwardian On Stud Wall Construction Specifications - Jetmaster Free Standing Metal Casing “A”
Typical installation with exposed “flue” and or one length
heat shield, refer to decro mesh diagram for firebox and
flue clearances to combustibles.
Hearth Thickness
Hearth Thickness
Models 400 to 850 26mm
Models 400 to 850 26mm
Model 1050 100mm
Model 1050 100mm
* Hearth extends 100mm behind firebox
* Hearth extends 100mm behind firebox
DIMENSIONS IN MILLIMETRES
MODEL A B C D E F G
600 1000 390 810 40 600 600 200
700S 1050 390 810 40 700 600 175
700D 1100 440 119 40 700 650 200
850 1200 490 983 40 850 700 175
1050 1400 550 1050 40 1050 750 175

Jetmaster UNIVERSAL 700D Specifications

General

Brand	Jetmaster
Model	UNIVERSAL 700D
Category	Indoor Fireplace
Language	English
