Operating Controls - 11
OPERATING CONTROLS
Operating Controls

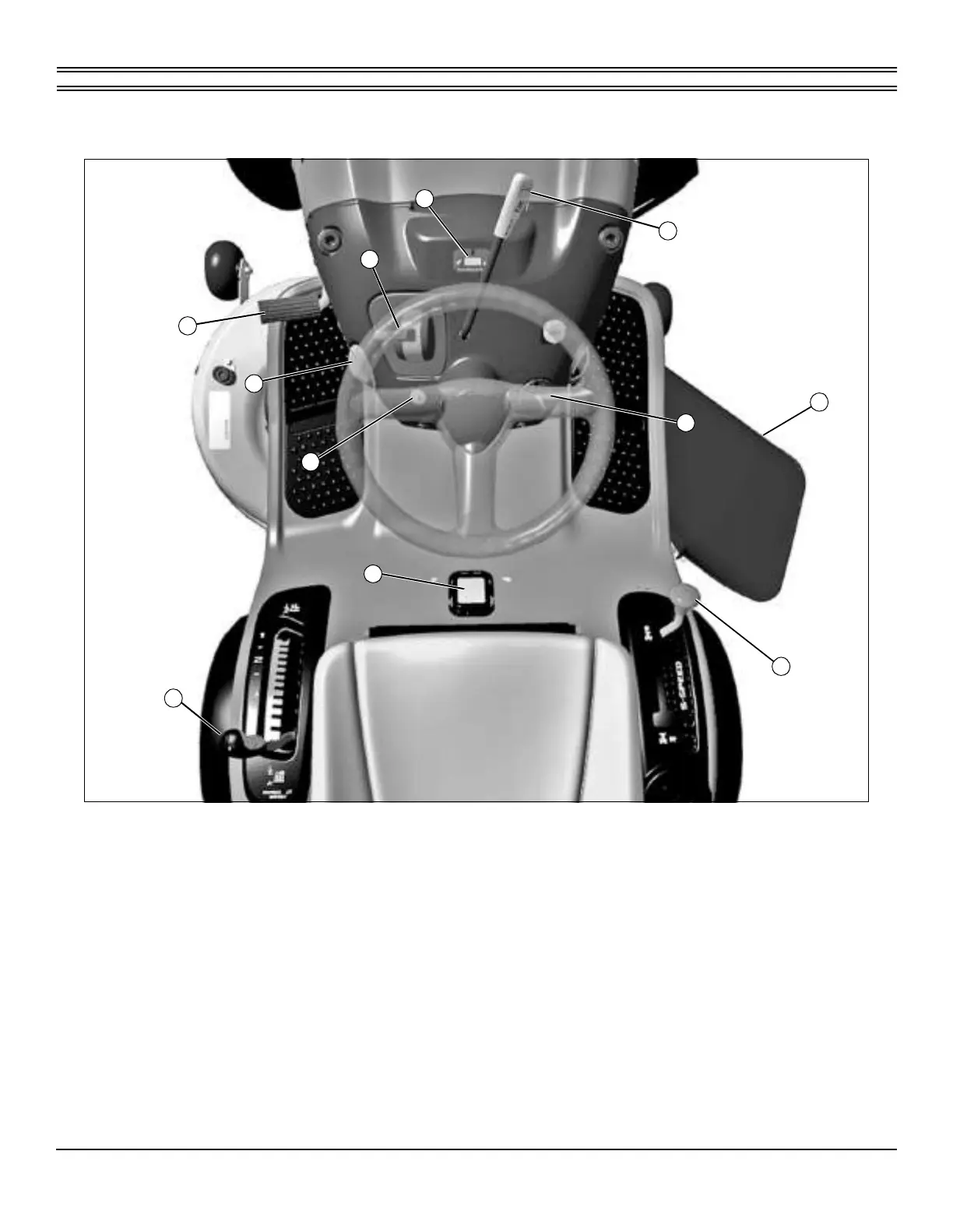

Operator Station Controls (LA105)
MX27230
ABrake/Clutch Pedal
B Park Brake Lock Lever
C Throttle/Choke Lever
D Reverse Implement Option (RIO) Switch
E Service Reminder/Hour Meter
FKey Switch
G Attachment Engagement Lever
H Deflector Shield
I Transmission Shift Lever
J Fuel Level Window
K Attachment Lift Lever
A
G
F
J
C
D
B
K
I
H
E
