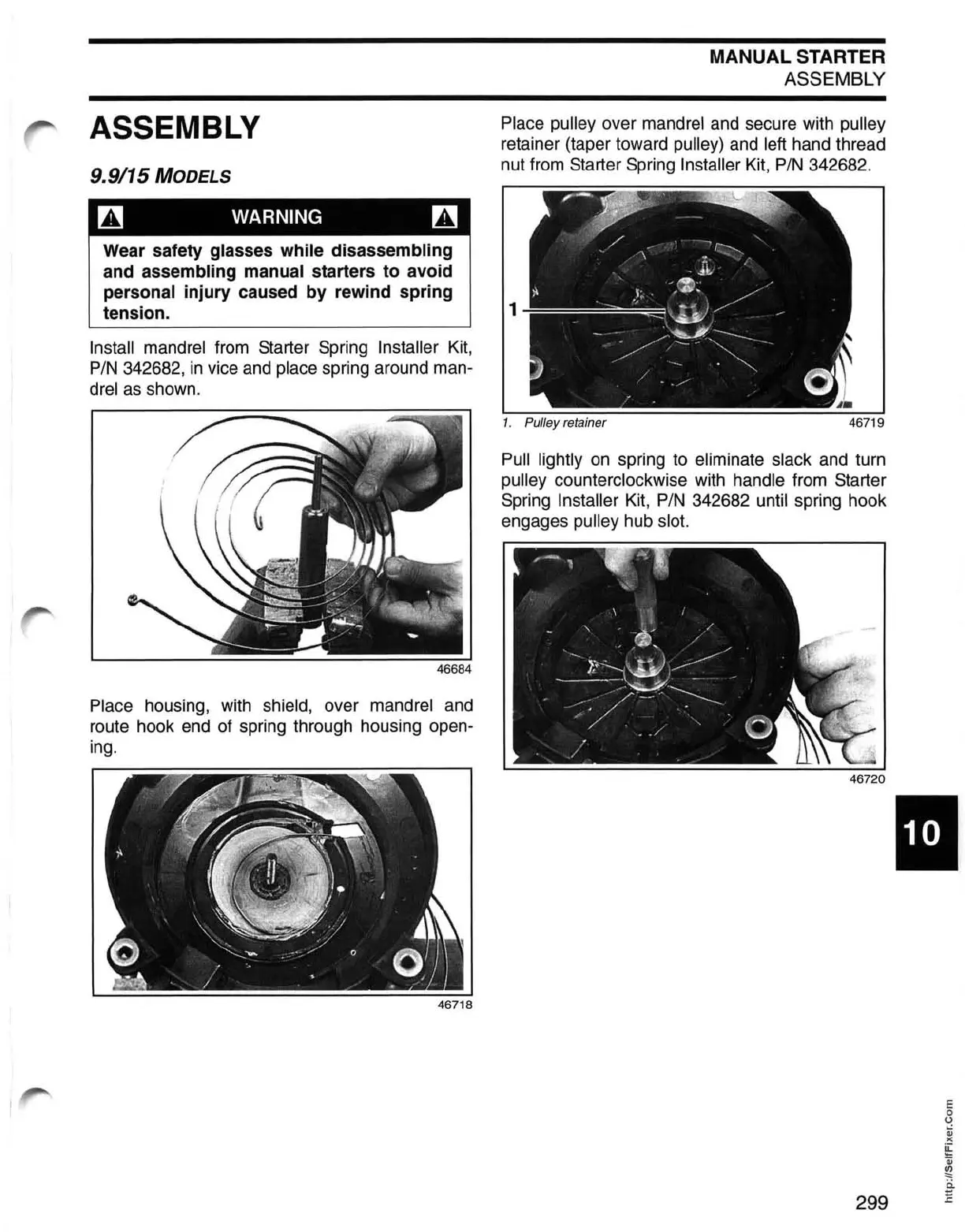

ASSEMBLY
9.9/15 MODELS
m WARNING m
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused
by
rewind spring
tension.
Install mandrel
from
Starter Spring Installer
Kit,
PIN
342682,
in
vice and place spring around man-
drel
as
shown.
Place housing,
with
shield, over mandrel
and
route hook
end
of spring through housing open-
ing.
MANUAL
STARTER
ASSEMBLY
Place pulley over mandrel and secure with pulley
retainer (taper toward pulley)
and
left hand thread
nut from Starter Spring Installer
Kit,
PIN
342682.
1. Pulley retainer 46719
Pull lightly
on
spring
to
eliminate slack
and
turn
pulley counterclockwise with handle from Starter
Spring
Installer
Kit,
PIN
342682 until spring hook
engages
pulley hub slot.
46720
E
o
o
~
><
~
Qj
~
i:i
299
