DESCRIPTION
The one-man sawmill consists of two main
sections:
• Carriage with motor and saw
• Rails
In addition, the band saw is equipped with the
necessary safety devices.

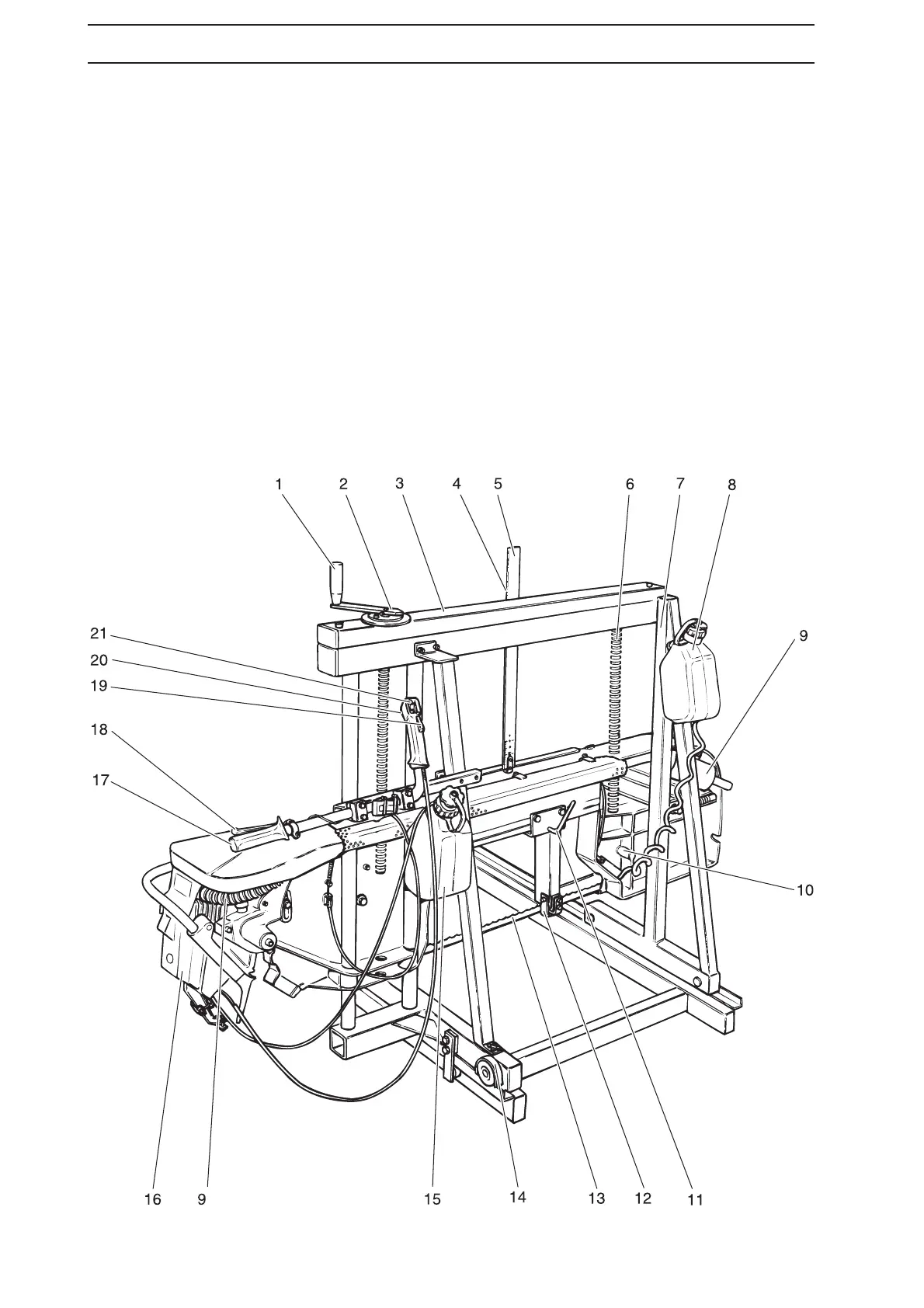

1. Crank for height adjustment
2. Pitch disc
3. Chain guard
4. Pointer
5. Scale
6. Height adjustment rod
7. Stand
8. Cleaning liquid tank (saw blade cleaning)
9. Exhaust systemwith muffler
10. Blade lubrication valve
11. Locking device for moveable blade guide
12. Moveable blade guide
13. Saw blade
14. Rail guard
15. Fueltank
16. Motor
17. Steering handle
18. Brake handle
19. Throttle stop
20. Throttle control
21. Stop control (emergency stop)
22. Guide rod
23. Decompression valve
24. Starter handle
25. Blade wheel guard
26. Rail
27. Saw blade guard
28. Blade wheel
29. Scraper
30. Exhaust pipe guard
31. Adjusting of the blade wheel
32. Crank for band tensioning
