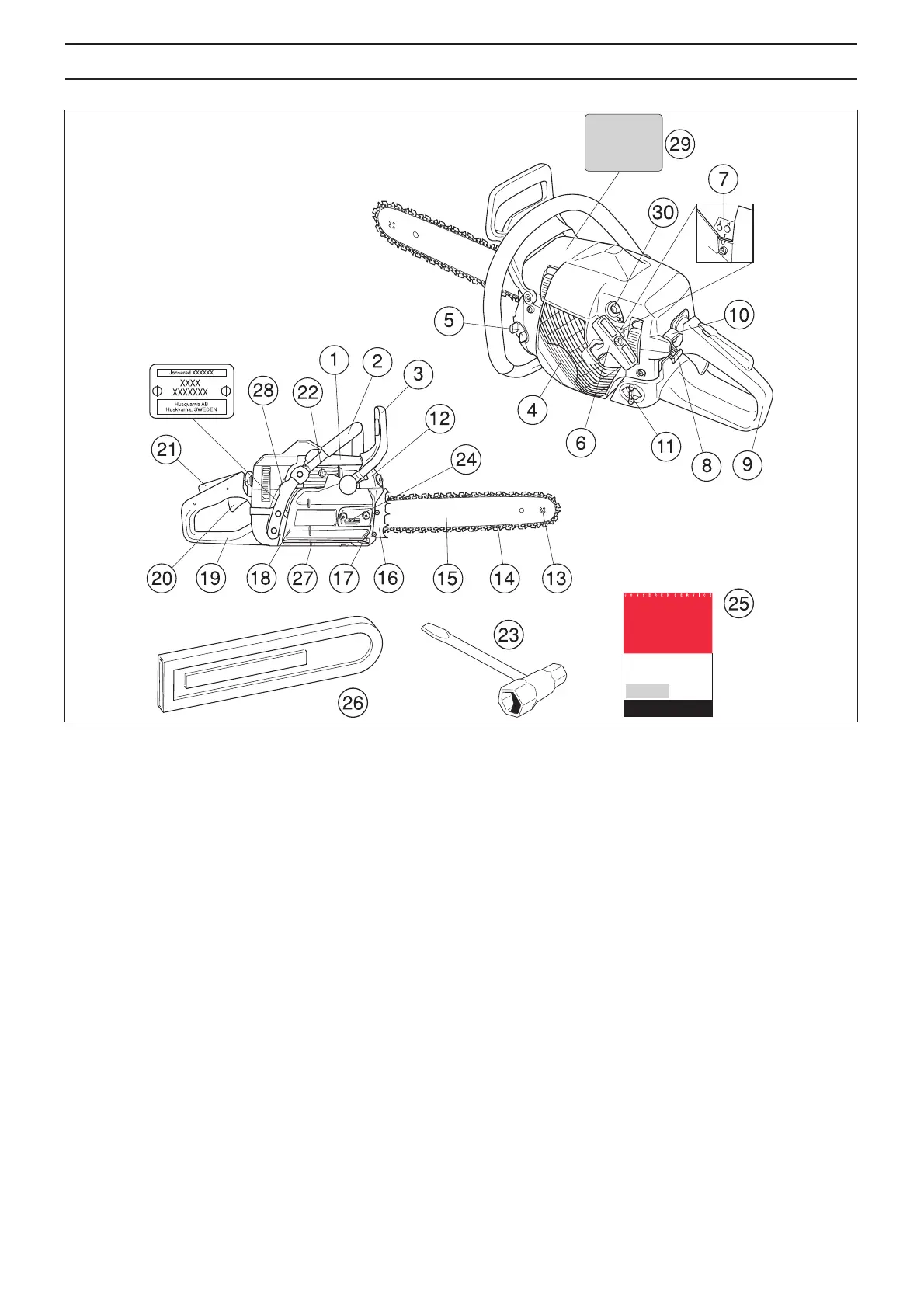

What is what on the chain saw?
1
Cylinder cover
2 Front handle (Felling direction guide)
3 Front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburetor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Bumper spike
17 Chain catcher
18 Clutch cover
19 Rear handle with right hand guard
20 Throttle control
21 Throttle lockout
22 Decompression valve
23 Combination spanner
24 Chain tensioning screw
25 Operator’s manual (EPA)
26 Bar guard
27 Oil pump adjustment screw
28 Switch for heated handle (W)
29 Warning decal
30 Air purge
