English – 15

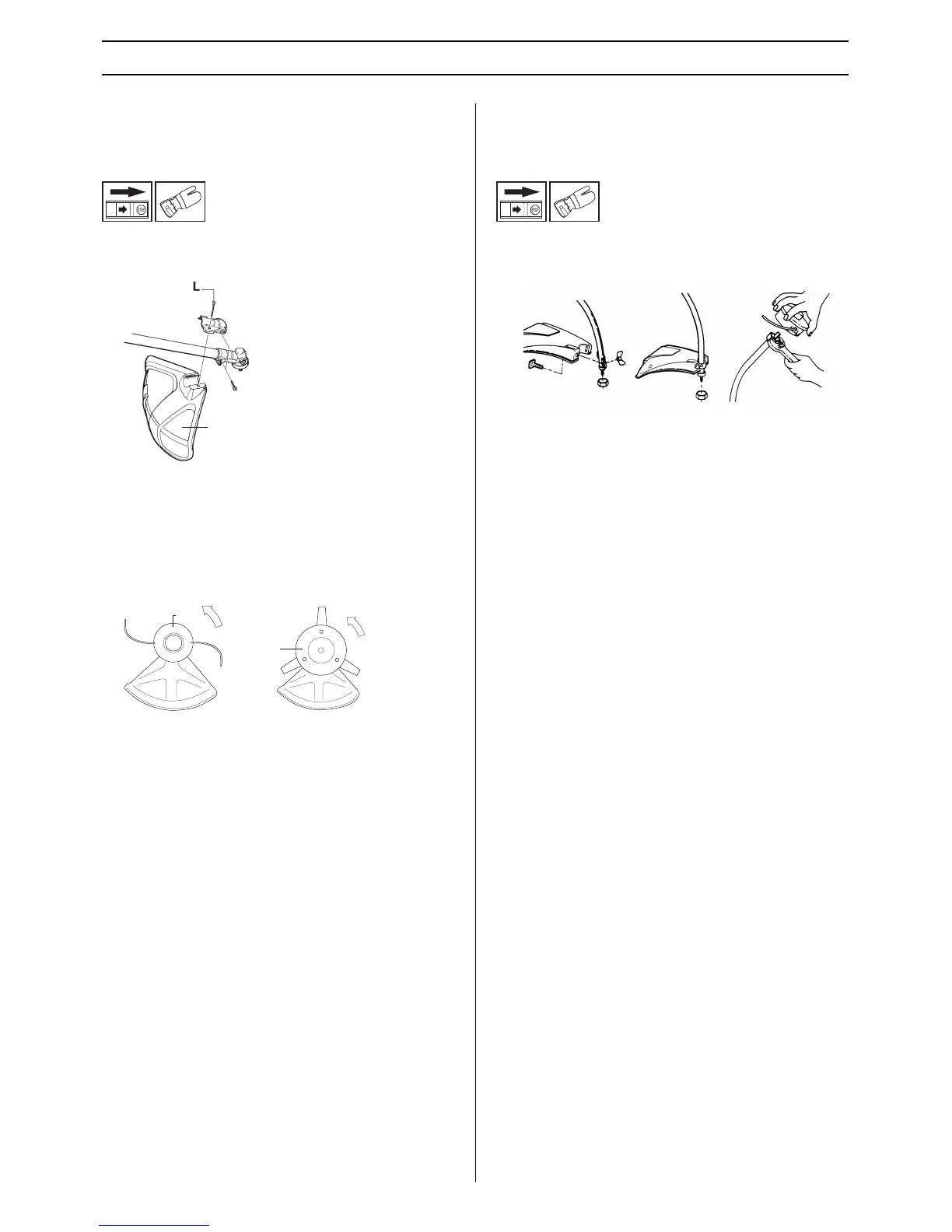

ASSEMBLY
Fitting other guards and cutting
attachments
(GC 2125)
• Fit the correct trimmer guard (A) for use with the trimmer
head. Hook the trimmer guard/combination guard onto
the fitting on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
Fitting the trimmer guard and
trimmer head
(GT 2125)
Guard
• Fit the guard as shown in the diagram. Tighten securely.
Trimmer head
• Fit the dust cup on the shaft. The nut must be completely
covered by the dust cup.
• Hold the dust cup with a spanner to prevent the shaft from
rotating.
• Screw the trimmer head onto the shaft.
A
H
H
