Joyor F3 User Manual

Joyor User Manual

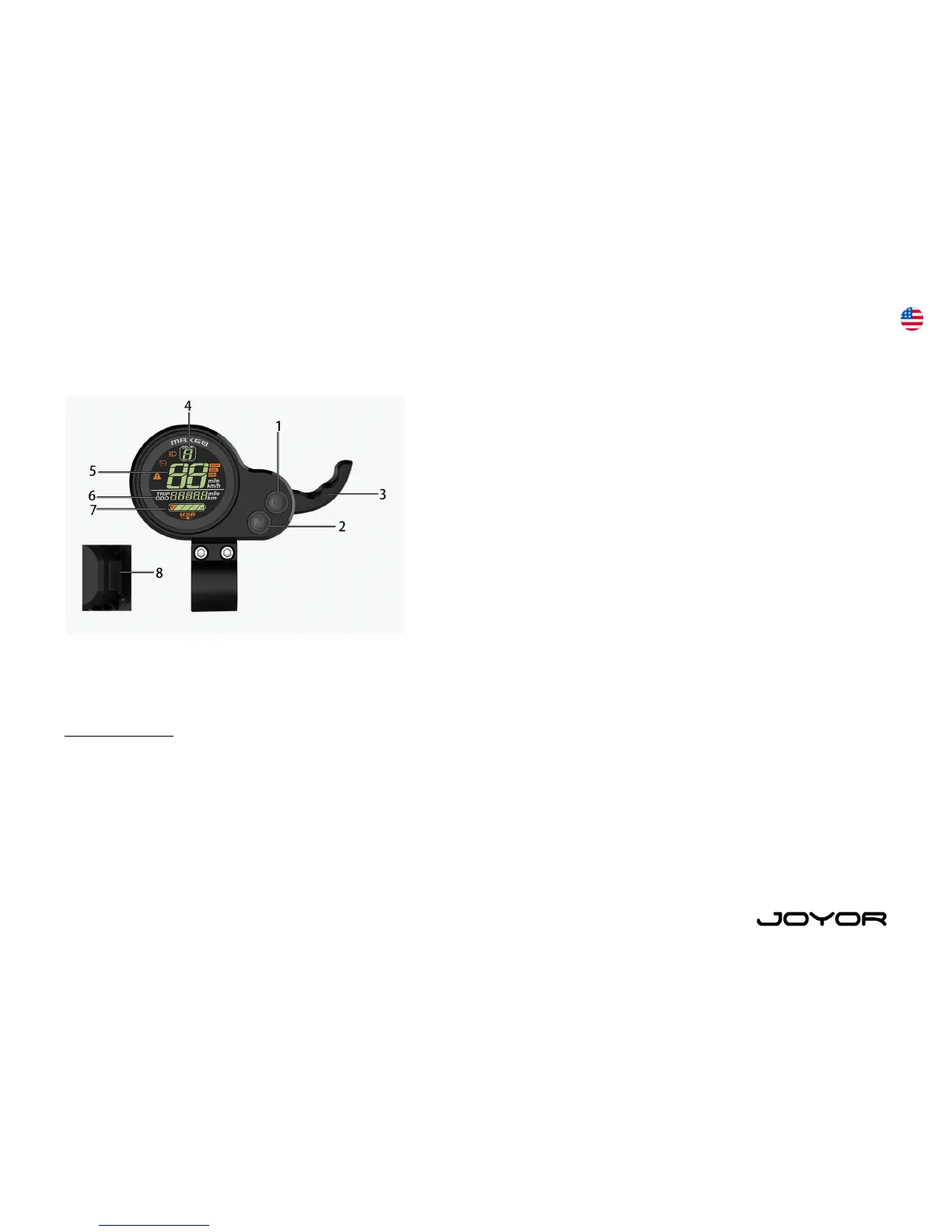

3.2 Display
1) On/Off Switch
2) Gear switch
3) Acceleration handle
4) Gear indicator
5) Speed indicator
6) Multi-indication area/mileage indicator
7) Battery charge level indicator
8) USB charging port
Model: 882
Working Voltage: DC24V/36Vcompatible, 36V/48Vcompatible
Communication protocol: UART
Wire Connections
1. Red Wire (D+): Positive pole input
2. Black Wire (GND): Negative pole
3. Blue Wire (DS): Controller electric door lock
4. Green Wire (RX): Communication reception
5. White Wire (TX): Communication launch

Joyor F3 Specifications

General

Brand	Joyor
Model	F3
Category	Scooter
Language	English
