- 15 -
• This switch is used to temporarily make the thread trimming function inoperative.
The other performance of sewing machine is not affected by this switch.
(If the automatic reverse stitching (for end) is specied, the sewing machine will perform the automatic
reverse stitching at the end of sewing.)
• If the automatic thread trimming switch
and the thread trimming prohibition switch are both speci-
ed, the machine will not perform thread trimming but stop with its needle up.

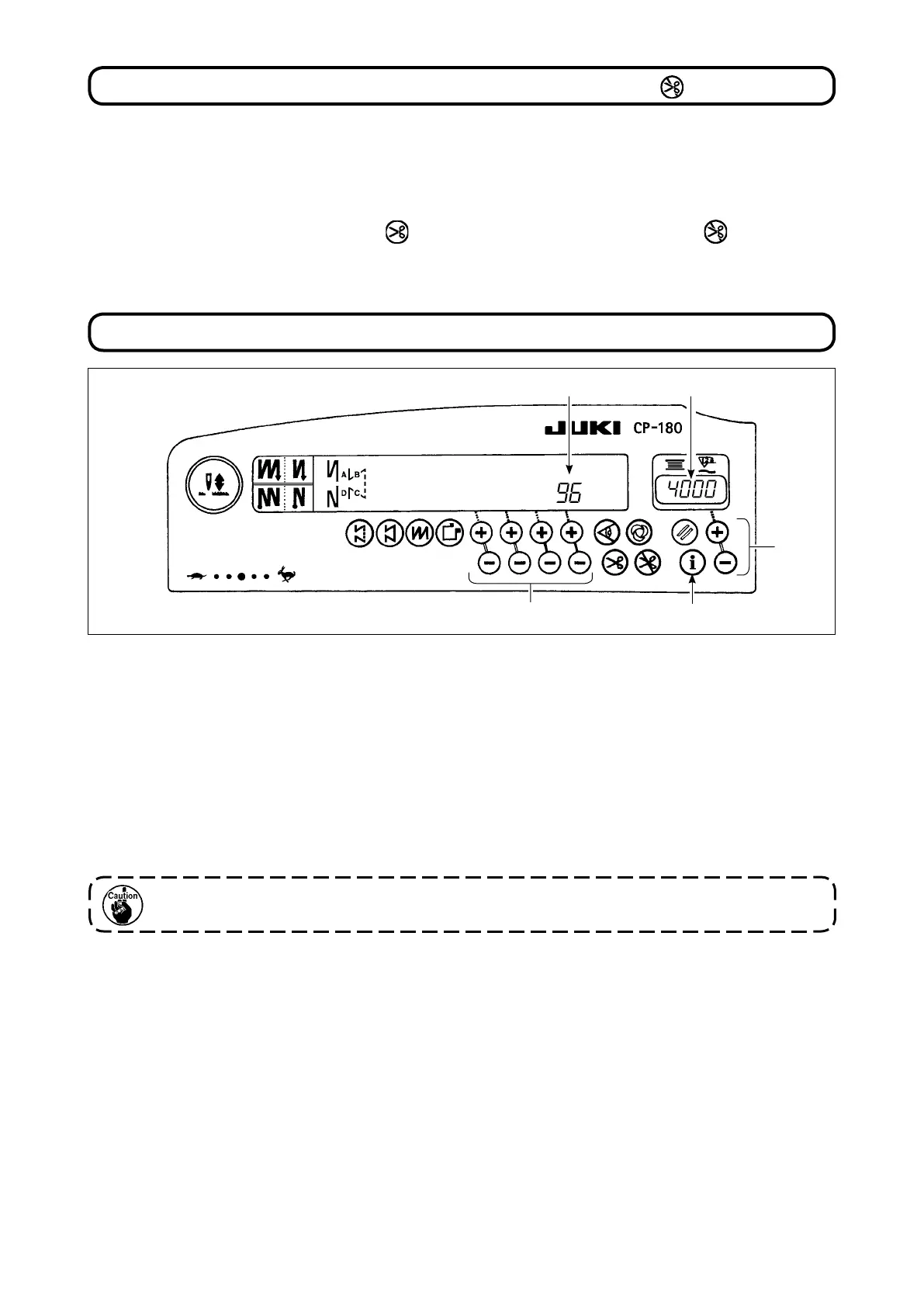

17. THREAD TRIMMING PROHIBITION SWITCH
1) Pressing function setting switch
1
, turn ON the power to the machine.
2) The indication on the control panel is changed over to the function setting indication mode.
Function setting No. is shown at section
A
and the set value is shown at section
B
of counter indication section.
* The contents to be shown will be different according to the contents that were set in the last time.
3) Function setting No. can be changed over by operating switch
2
.
4) Function set value (setting state in case of on/off) can be changed over by operating switch
3
.
5) After completion of setting, by operating switch
2
the changed contents are stored in memory and re-
ected from the next time.
6) For the details of the contents of function setting, refer to the Instruction Manual supplied with the control box.
Refer to SC-920 instruction manual for the function setting list, details of the function setting and the
optional input/output connector.
18. FUNCTION SETTING SWITCH
B
2
1
A
3

JUKI DDL-8700-7 Specifications

General

Max Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Lift of the Presser Foot	By hand: 5.5 mm, By knee: 13 mm
Lubrication	Automatic
Needle	DB×1
Hook	Full rotary hook
Power Requirement	Single-phase 100~120V, 200~240V
Motor	Direct-drive servo motor
Weight	45 kg
