5
–
Rear face
○

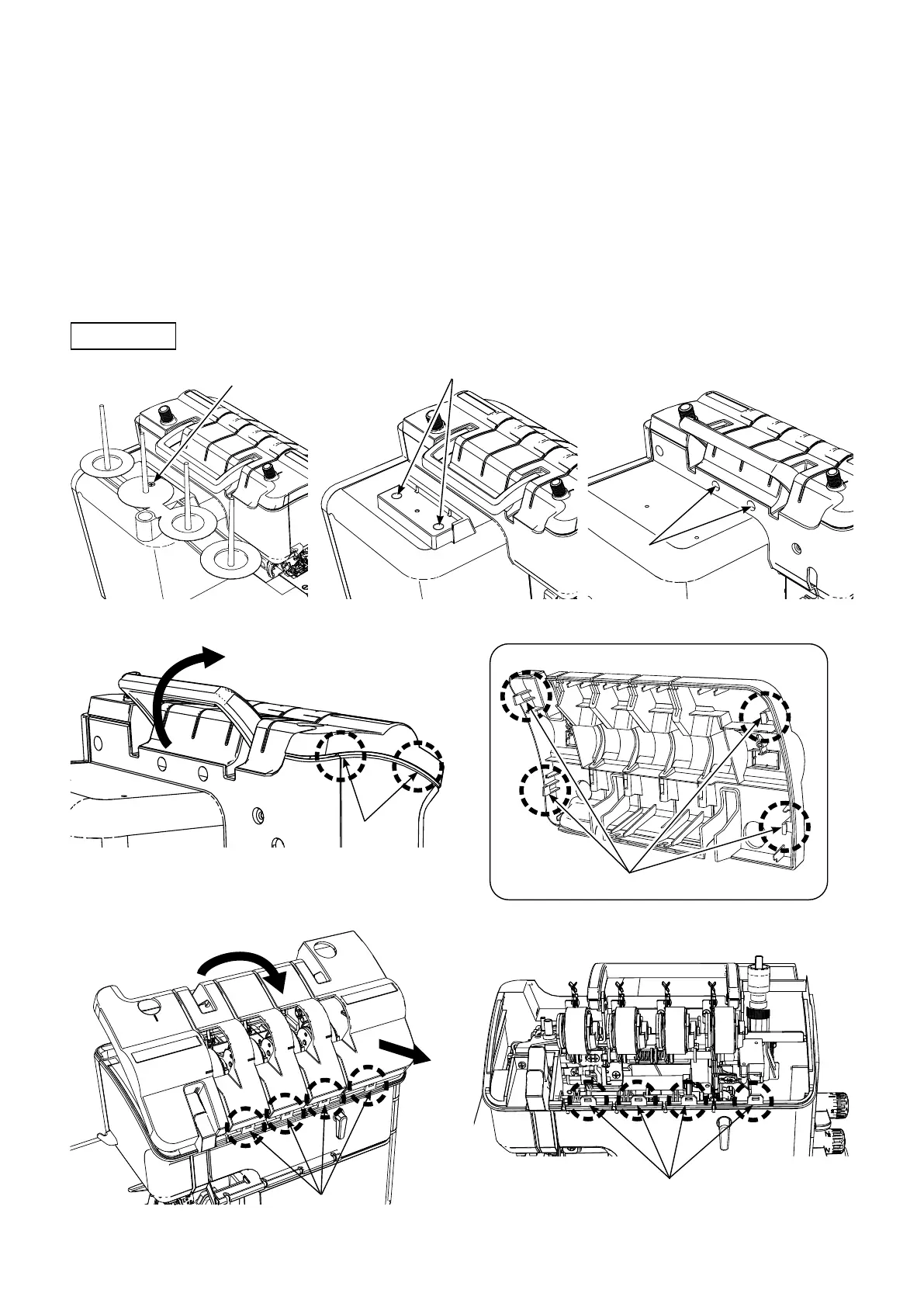

Remove one screw
❹
to remove the thread stand.
○
Remove two screws
❺
to remove the thread stand base.
○
Remove two screws
❻
.
○
While lifting up the rear side of the top cover, remove it by prying out the claws on the side face (at four
locations on the right and left) with a at-blade screwdriver or the like.
○
While lifting up the rear side of the top cover further, remove the top cover from the four claws on the front
face by pushing them in the forward direction.
❹
❺
❻
Claws
Claws
Claws (after the top cover is removed)
Claws
To Next Page
