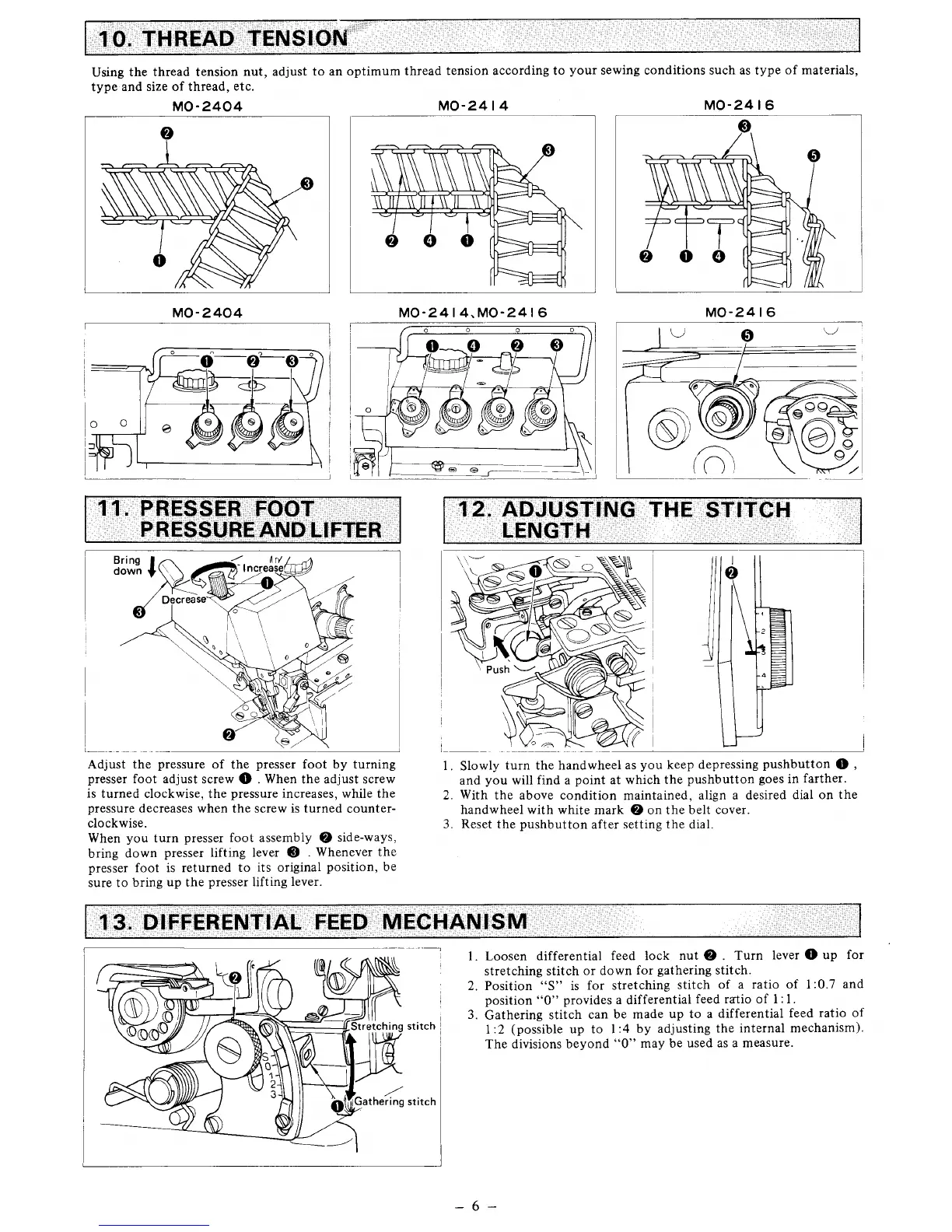

JUKI MO-2416 User Manual

MO-2404
MO-2414
Using
the thread tension
nut, adjust
to an optimum
thread
tension according to
your
sewing conditions such as type
of materials,
type
and size of thread,
etc.
11.
PRESSER
FOOT
PRESSURE
AND LIFTER
MO-2404
Adjust
the
pressure
of
the
presser
foot by turning
presser
foot adjust
screw
O
.
When
the adjust screw
is
turned clockwise, the
pressure
increases,
while the
pressure
decreases when
the
screw is turned
counter-
clockwise.
When
you
turn
presser
foot assembly
O
side-ways,
bring
down
presser
lifting lever
@
.
Whenever the
presser
foot is returned
to
its
original
position,
be
sure to
bring
up
the
presser
lifting
lever.
MO-24 t4.MO-24tb
MO-24 t6
1.
Slowly
turn the handwheel
as
you
keep depressing
pushbutton
O
,
and
you
will
find
a
point
at which
the
pushbutton
goes
in
farther.
2.
With
the above condition
maintained,
align a desired
dial on
the
handwheel with
white mark
O
on the
belt cover.
3.
Reset
the
pushbutton
after
setting the
dial.
t t.
fro*r3f,IrNG
rHE
silrcH
MO-24
t6
13. DIFFERENTIAL
FEED
MECHANISM
l. Loosen differential
feed lock
nut
O
.
Turn lever O
up
for
stretching stitch
or
down
for
gathering
stitch.
2. Position "S" is
for stretching
stitch
of a ratio of l:0.7
and
position
"0"
provides
a
differential
feed rrtio of 1:1.
3.
Gathering
stitch
can
be made
up to a
differential
feed
ratio of
1:2
(possible
up to l:4
by adjusting
the
internal mechanism).
The divisions bevond
"0"
mav be used
as a measure.
-6-
