Caution:
Be sure to turn o the power switch
before opening the looper cover.
2
NAME OF EACH COMPONENT

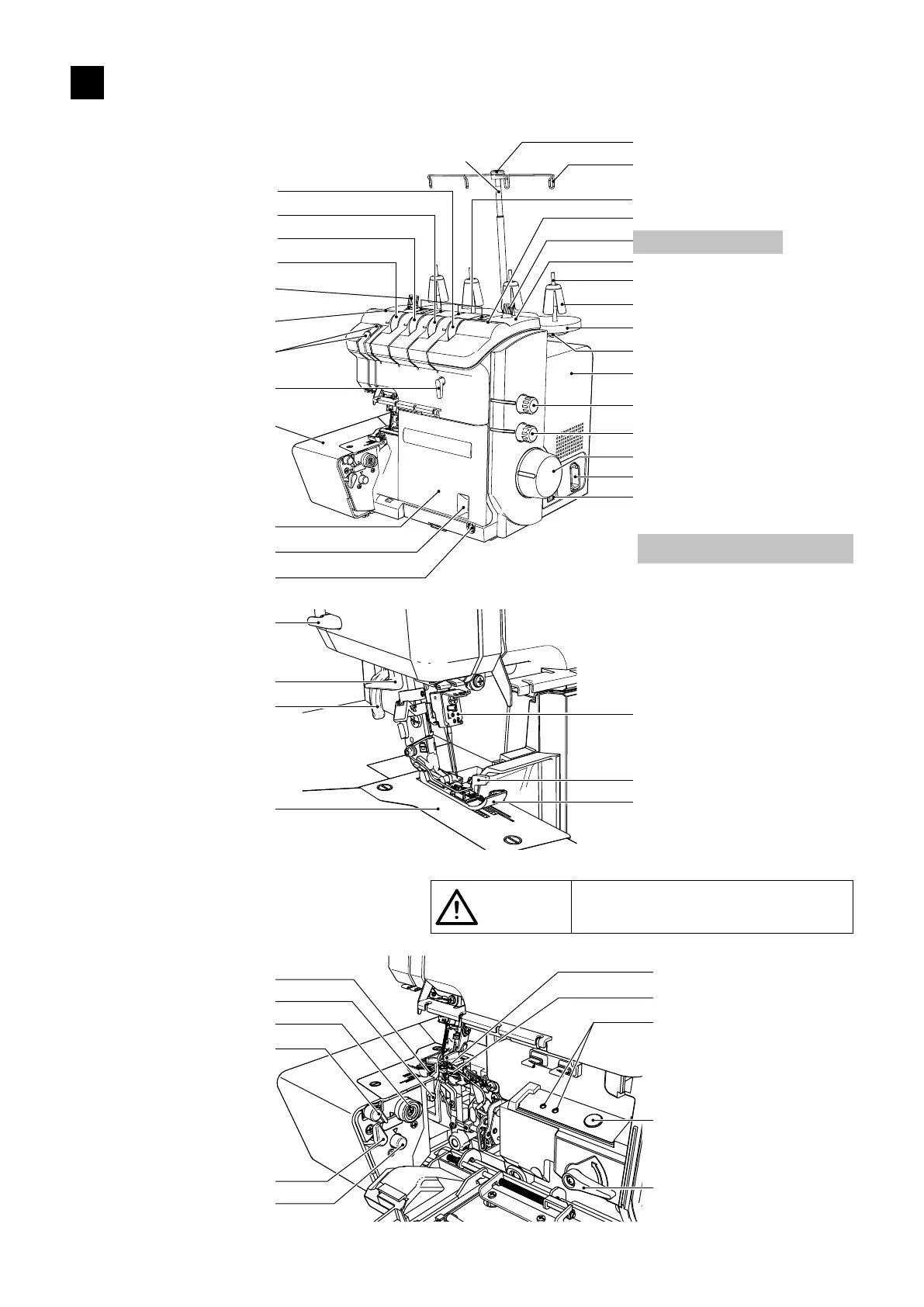

1. Appearance
Thread guide support
Open thread guide
■ View with looper cover open
Lower looper thread tension dial
Upper looper thread tension dial
Right needle thread tension dial
Left needle thread tension dial
Thread take-up cover
Stitch length adjustment dial
Dierential feed adjustment dial
Cloth plate
Handwheel
Machine socket
Main Power/Light switch
Looper cover with built in
knife guard
Looper cover opening indent
Thread cutter
Presser foot lifter
Stitch plate
Needle clamp
Upper knife
Presser foot
Automatic needle threader
Thread guide No. 1
Magnet needle tray
Micro-lifter dial *1
Top cover
Spool holder pin
Anti - vibration cone
Foam pad
Thread stand
Upper knife changeover knob
TWA
(Tweak Width Adjustment)
Upper looper
Lower looper
Threading hole
Lower knife
Upper knife xing screw
Cutting width adjusting dial
Selection lever for overlocking
or roll hemming
Air-control pushbutton
Threading changeover
lever
Presser foot pressure
regulating knob
*1: Only for MO-2500 type
Magnet needle tray
Roll hemming thread
tension lever
Knee lifting lever hole
Front cover
Retractable support rod
