– 18 –

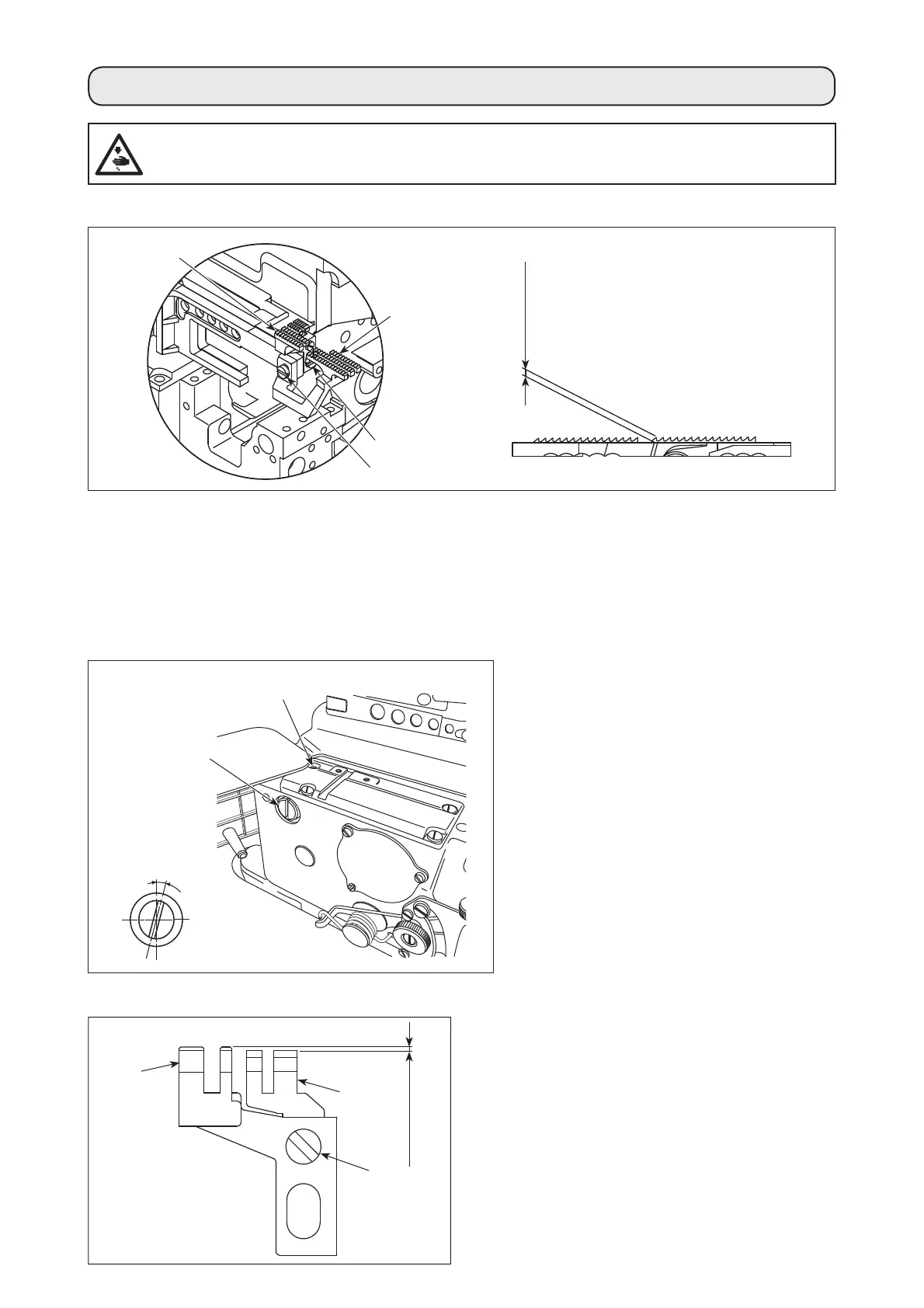

14. ADJUSTING THE FEED DOG
(1) Adjusting the feed dog height
(2) Adjusting the inclination of the feed dog
To adjust the inclination of the feed dog, loosen
screw ❶ and turn rear support shaft ❷. When
WKHIHHGGRJLVÀXVKZLWKWKHWRSVXUIDFHRIWKH
throat plate and the feed dog is levelled (30P:
The feed dog is positioned with its front part
low), tighten screw ❶.
(3) Adjusting the auxiliary feed dog height
The teeth section of auxiliary feed dog ❶ has to be po-
sitioned lower than main feed dog ❸ by 0.3 to 0.5 mm
(30P: 0.1 to 0.3 mm, 60H: 0.25 to 0.35 mm). The height
can be adjusted by loosening the screw ❷.
0.9 to 1.1 mm
0.3 to 0.5 mm
1) Turn the pulley to rise the feed dog the highest point.
2) Loosen the screw ❶. and move the main feed dog ❷ up and down in order to keep the teeth side over the
throat plate about 0.9 to 1.1 mm (30P: 0.7 to 0.9 mm, 60H: 1.0 to 1.2 mm). Then, tighten the screw ❶.
3) Loosen screw ❸. Move differential feed dog ❹XSDQGGRZQWRDGMXVWVRWKDWLWLVÀXVKZLWKPDLQIHHGGRJ
❷. Then, tighten screw ❸.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
❶
❹
❸
❷
❶
❷
❶
❷
❸
15°
In the case of 30P
TRIAL MODE − a valid license will remove this message. See the keywords property of this PDF for more information.

JUKI MO-6816S Specifications

General

Type	Overlock
Number of Needles	2
Stitch Length	1.0 - 4.0 mm
Lift of the Presser Foot	5.5 mm
Presser Foot Lift	Manual
Needle Size	9-18
Differential Feed Ratio	0.7-2.0
