JUKI MP-200N Series User Manual

−9 −
Standard Adjustment

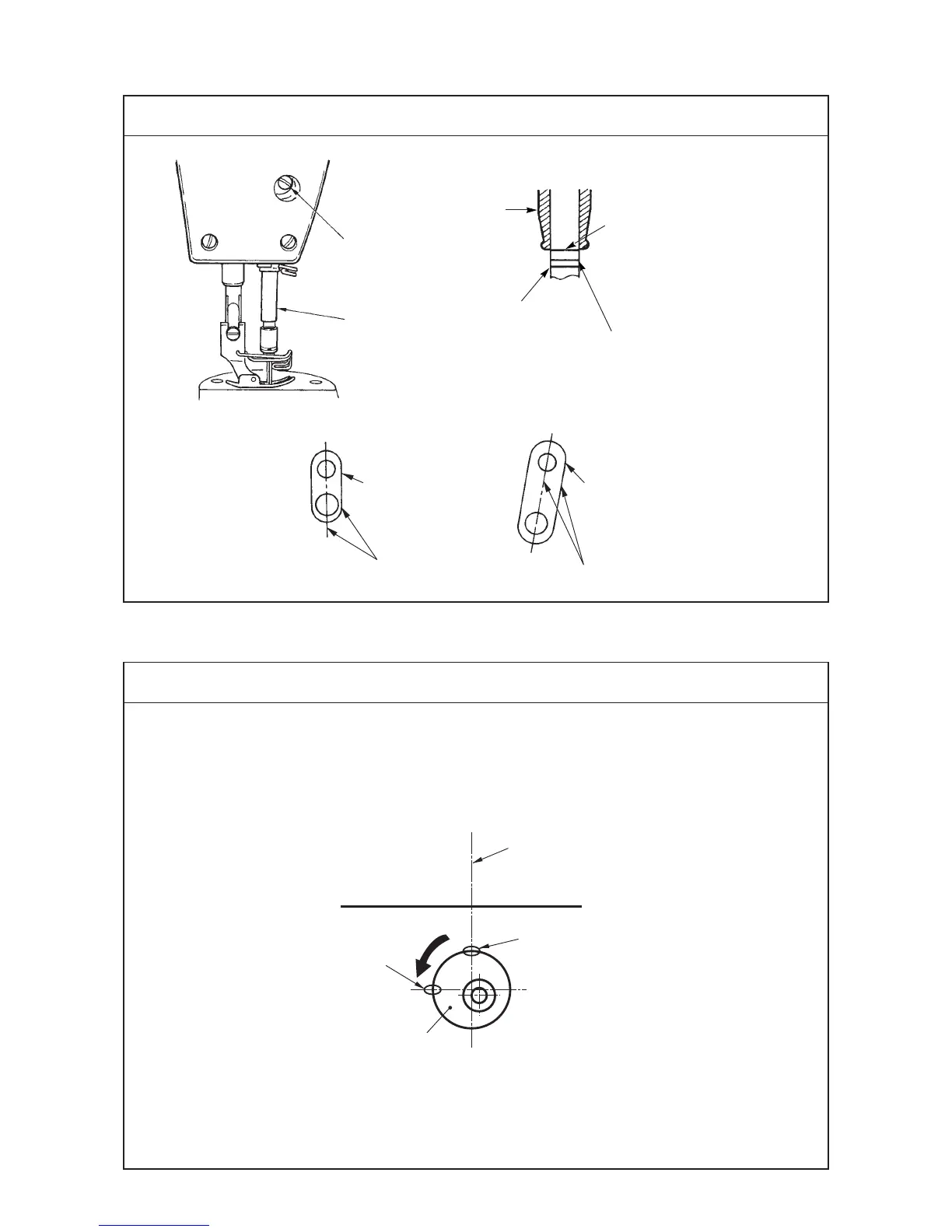

(5) Height of the needle bar
Standard Adjustment
(6) Looper crank timing
The timing of looper crank 1 located at the top end of the hook driving shaft should be fixed at the
position where setscrew No. 2 2 faces just right when the thread take-up lever is in its upper dead
point.
1
2
3
To be parallel
1st engraved marker line
3rd engraved marker line
2nd engraved marker line
To be parallel
4
5
™MP-200NS ™MP-200NL
Needle entry point
Bed top surface
1
2
Setscrew No. 1
