Junkers miniMAXX WRD 11-2.B Series User Manual

WRDB - GB
Information about the heater
5

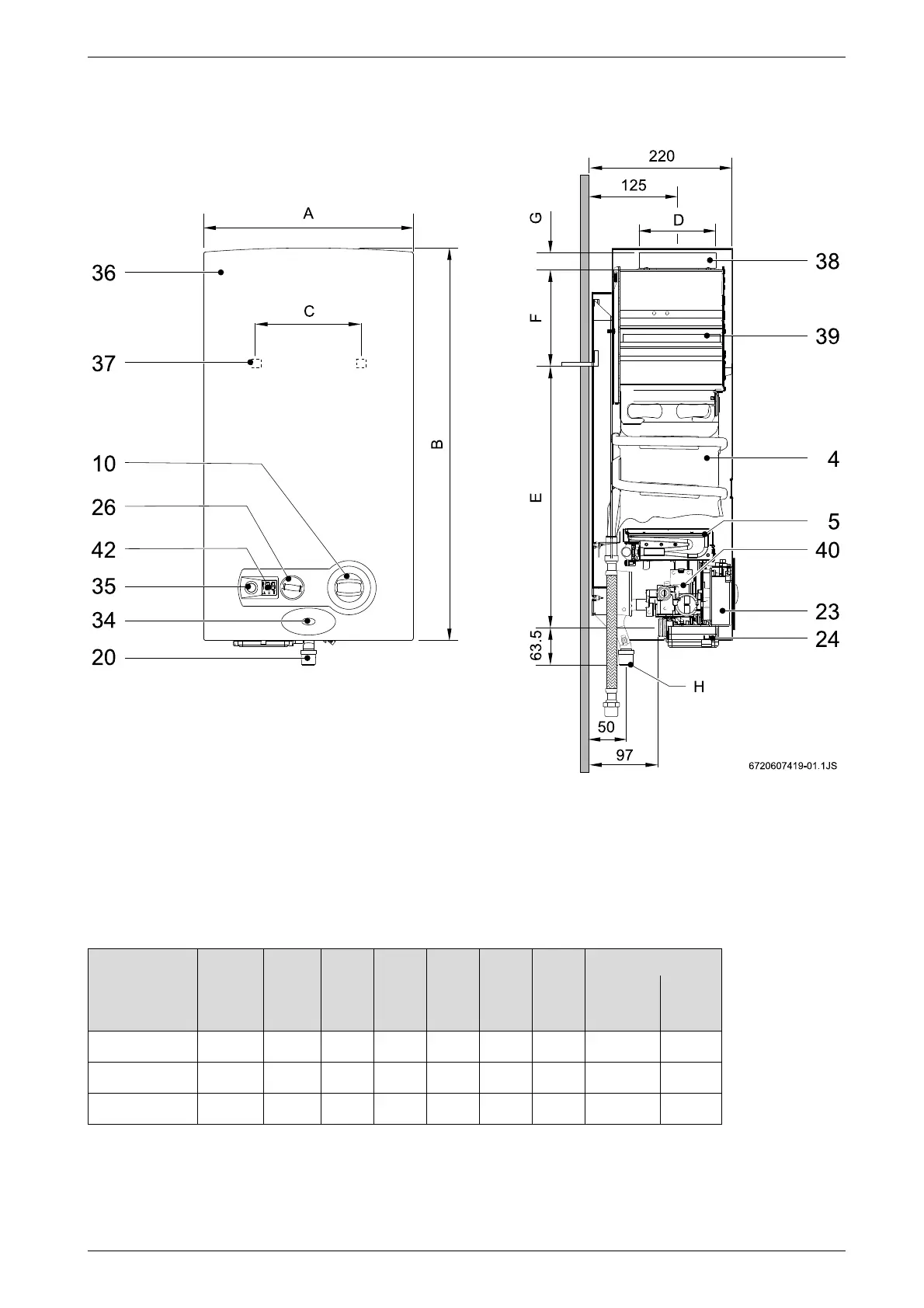

1.6 Dimensions
Fig. 1
4 Heat exchanger
5 Burner
10 Temperature/volume selector
20 Gas connection
23 Ignition unit
24 Battery compartment
26 Power selector
34 LED - Burner status check
35 Switch / LED - Battery status check
36 Front
37 Opening for mounting on the wall
38 Connection collar to the combustion gases pipe
39 Flue with non-return device
40 Gas automatic
42 Digital display
Dimensions
(mm) A B C D E F G
H (Ø)
Natural
gas LPG
WRD11B 310 580 228 110 463 60 25 3/4” 1/2”
WRD14B 350 655 228 130 510 95 30 3/4” 1/2”
WRD18B 425 655 334 130 540 65 30 3/4” 1/2”
Tab. 3 Dimensions
