JVC AX-F1GD User Manual

AX.FIGD

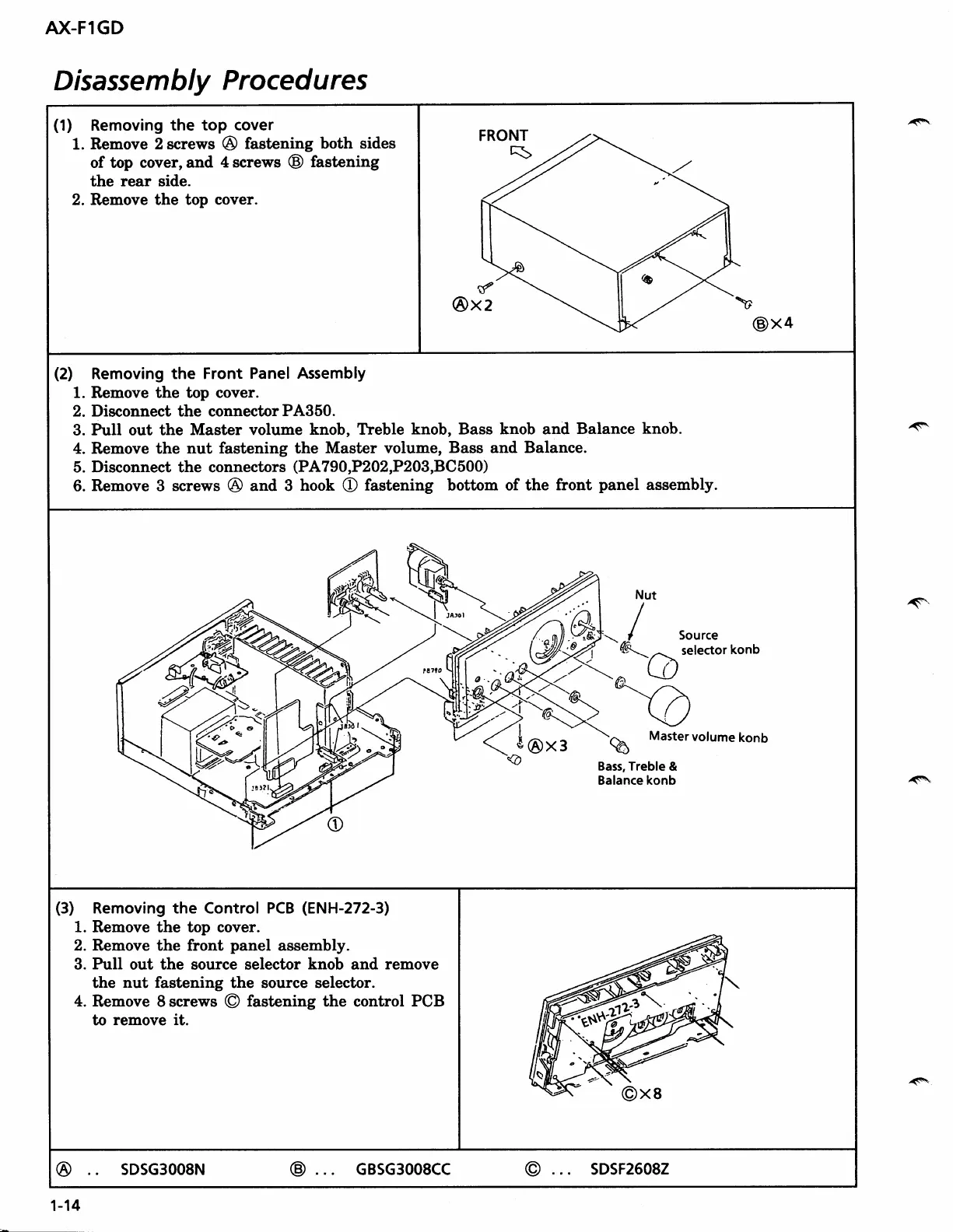

Disass embly
Proced
u
res
(1)
Removing
the top cover
t. Remove
2 screws
@
fastening
both sides
of top
cover, and
4 screws
@
fastening
the rear side.
2. Remove
the top cover.
f
@xz
@x4
(2)
Removing
the Front
Panel Assembly
1. Remove the top cover.
2. Disconnect the connector
PA360.
3.
Pull out the
Master volume
knob, Tleble
knob, Bass knob and
Balance
knob.
4.
Remove
the nut
fastening the Master
volume,
Bass
and
Balance.
5. Disconnect the connectors
(PA790,P202,P203,BC500)
6. Remove 3
screws
@
and 3
hook
O
fastening bottom of the
front
panel
assembly.
%
Mastervolume
konb
Bass, Treble
&
Balance konb
(3)
Removing the
Control
PCB
(ENH-272-3)
1. Remove the top cover.
2. Remove the front
panel
assembly.
3.
Pull
out the source selector
knob
and
remove
the
nut fastening
the source selector.
4.
Remove 8 screws
@
fastening
the control
PCB
to
remove it.
@
sDsG3008N
@
GBSG3008CC
@
SDSF2508Z
1-14
,(s
$
