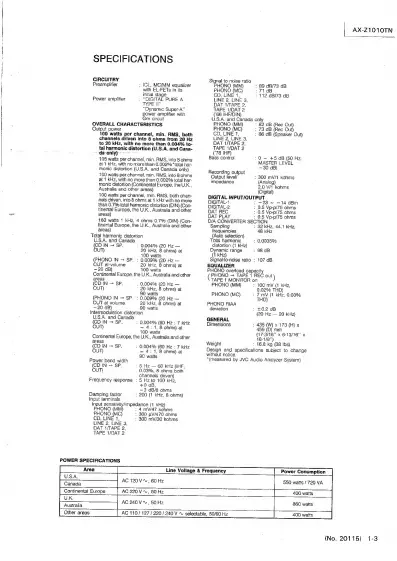

SPECIFICATIONS
CIRCUITRY
Preamplifier : ICL, MC/MM equalizer
with EL-FETs in its
initial stage
Power amplifier “DIGITAL PURE A
TYPE Ir"
“Dynamic Super-A””
power amplifier with
Gm circuit
OVERALL CHARACTERISTICS
Output power
100 watts per channel, min. RMS, both
channels driven into 8 ohms from 20 Hz
to 20 kHz, with no more than 0.004% to-
tal harmonic distortion (U.S.A. and Cana-
da-only)
105 watts per channel, min. RMS, into 8 ohms
at 1 kHz, with no more than 0.002%" total har-
monic distortion (U.S.A. and Canada only)
100 watts per. channel, min. RMS, into 8 ohms
at 1 kHz, with no more than 0.002% total har-
monic distortion (Continental Europe, the U.K.,
Australia and other areas)
100 watts per channel, min. RMS, both chan-
nels driven, into 8 ohms at 1 kHz with no more
than 0.7% total harmonic distortion (DIN) (Con-
tinental Europe, the U.K., Australia and other
areas)
160 watts 1 kHz, 4 ohms 0.7% (DIN) (Con-
tinental Europe, the U.K., Australia and other
areas)
Total harmonic distortion
U.S.A. and Canada
AX-Z1010TN
Signal to noise ratio
PHONO (MM) : 89 dB/73 dB
PHONO (MC) : 71: dB
CO, LINE 1, : 112 dB/73 dB
LINE 2, LINE 3;
DAT 4/TAPE 2,
TAPE 1/DAT 2
(66 IHF/DIN)
U.S.A. and Canada only
PHONO (MM) : 82 dB (Rec Out)
PHONO (MC) : 73 dB (Rec Out)
CD, LINE 7, : 86 dB (Speaker Out)
LINE 2, LINE 3,
DAT 1/TAPE 2,
TAPE 1/DAT 2
(78 IHF)
Bass contro! 10 ~ +5 dB (50 Hz,
MASTER LEVEL
~30 dB)
Recording output
Output level/ : 300 mV/1 kohms
impedance (Analog)
2.0 V/1 kohms
(Digital)
DIGITAL INPUT/OUTPUT
DIGITAL-1 1-23 ~ -14 dBm
DIGITAL-2 : 0.8 Vp-p/75 ohms
DAT REC :-0.5 Vp-p/75 ohms
DAT PLAY : 0.5 Vp-p/75 ohms
O/A CONVERTER SECTION
Sampling : 32 kHz, 44,1 kHz,
frequencies 48 kHz
{Auto selection)
Total harmonic : 0.0035%
distortion (1 kHz)
Dynamic range : 98 dB
(1 kHz)
(co IN > SP, : 0.004% (20 Hz —
UT) 20 kHz, 8 ohms) at
100 waits
(PHONO IN > SP. : 0.009% (20 Hz —
OUT at volume 20 kHz, 8 ohms) at
20 dB) 400 watts
Continental Europe, the U.K., Australia and other
areas
(CD IN + SP.
OUT)
(PHONO IN -+ SP
OUT at volume
—20 dB)
0.004% (20 Hz —
20 kHz, 8 ohms) at
90 watts
: 0.009% (20 Hz —
20 kHz, 8 ohms) at
90 watts
Intermodulation distortion
U.S.A. and Canada
(CD IN + SP,
Out)
004% (60 Hz : 7 kHz
= 4: 1, 8 ohms) at
00 watts
j
Continental Europe, the U.K., Australia and other
areas
(CD IN ~ SP,
OuT)
Power band width
(CD IN > SP.
oun
Frequency response
Damping factor
Input terminals
: 0.004% (60 Hz : 7 kHz
= 4: 1, 8 ohms) at
90 watts
5 Hz — 60 kHz (IHF,
0.03%, 8 ohms both
channels driven)
: 5 Hz to 100 kHz,
+0 dB,
-3 d8/8 ohms
: 200 (4 kHz, 8 ohms)
Input sensitivity/impedance (1 kHz}
PHONO (MM)
PHONG (MC)
CD, LINE 4,
LINE 2, LINE 3,
DAT 4/TAPE 2,
TAPE V/DAT 2
POWER SPECIFICATIONS
: 4 mV/47 kohms
: 300 1V/470 ohms
: 300 mV/30 kohms
Line Voltage & Frequency
Signal-to-noise ratio : 107 dB
EQUALIZER
PHONO overload capacity
(PHONO ~ TAPE 7 RE! out)
TAPE 1 MONITOR on
PHONO (MM) 100 mV (1 kHz,
0.02% THD)
PHONO (MC) : 7 mV (1 kHz, 0.03%
THD)
PHONO RIAA
deviation : £0.2 dB
{20 Hz — 20 kHz)
GENERAL
Dimensions : 435 (W) x 173 (H) x
459 (D) mm
(17-3/16" x 6-13/16" x
18-1/8""
Weight : 16.8 kg (38 Ibs)
Design and specifications subject to change
without notice.
“(measured by JVC Audio Analyzer System)
Power Conumption
USA.
Australia
AC 120V~, 60 Hz 550 watts / 720 VA
Canada __
Continental Europe AC 220 V~, 50 Hz 400 watts
UK AC 240 V~, 50 Hz 860 watts
Other areas
AC 110/127 / 220/240 V ~ selectable, 50/60 Hz 400 watts
(No. 20115) 1-3
