Connections
• Connect VIDEO OUT directly to the video input of your
TV. Connecting VIDEO OUT to a TV via a VCR may
interfere with your viewing when playing back a copy-
protected source. Connecting VIDEO OUT to an integrated
TV/VCR system may interfere with your viewing.
Do not connect the AC power cord until all other
connections have been made.
Supplied accessories
• FM antenna (x1)
• AM loop antenna (x1)
• Composite video cord (x1)
• Remote control (x1)
• Batteries (x2)
• AC plug adapter (x1)
(not supplied for Australia and the Middle East.)
If any item is missing, consult your dealer immediately.
! From AM/FM antenna
See page 4.
Ÿ From the digital input of digital audio
component
See page 4.
~ From the video input of TV/monitor
See page 4.
CA-DXJ10 and CA-DXJ20 do not have
component jacks.
⁄
From the subwoofers (CA-DXJ30 only)
See page 5.
From the speakers
See page 5.
CA-DXJ20 has 3 speaker terminals.
¤ Voltage selector
(not applicable for Australian models)
Before plugging in, confirm the position the
voltage selector points at. See page 5.
# To a wall outlet
Plug the AC power cord only after all
connections are complete.
• If the wall outlet does not match the AC plug,
use the supplied AC plug adapter (not
supplied for Australian and the Middle East
models).
@ From the analog audio output of auxiliary
equipment (VCR, etc.)
See page 4.

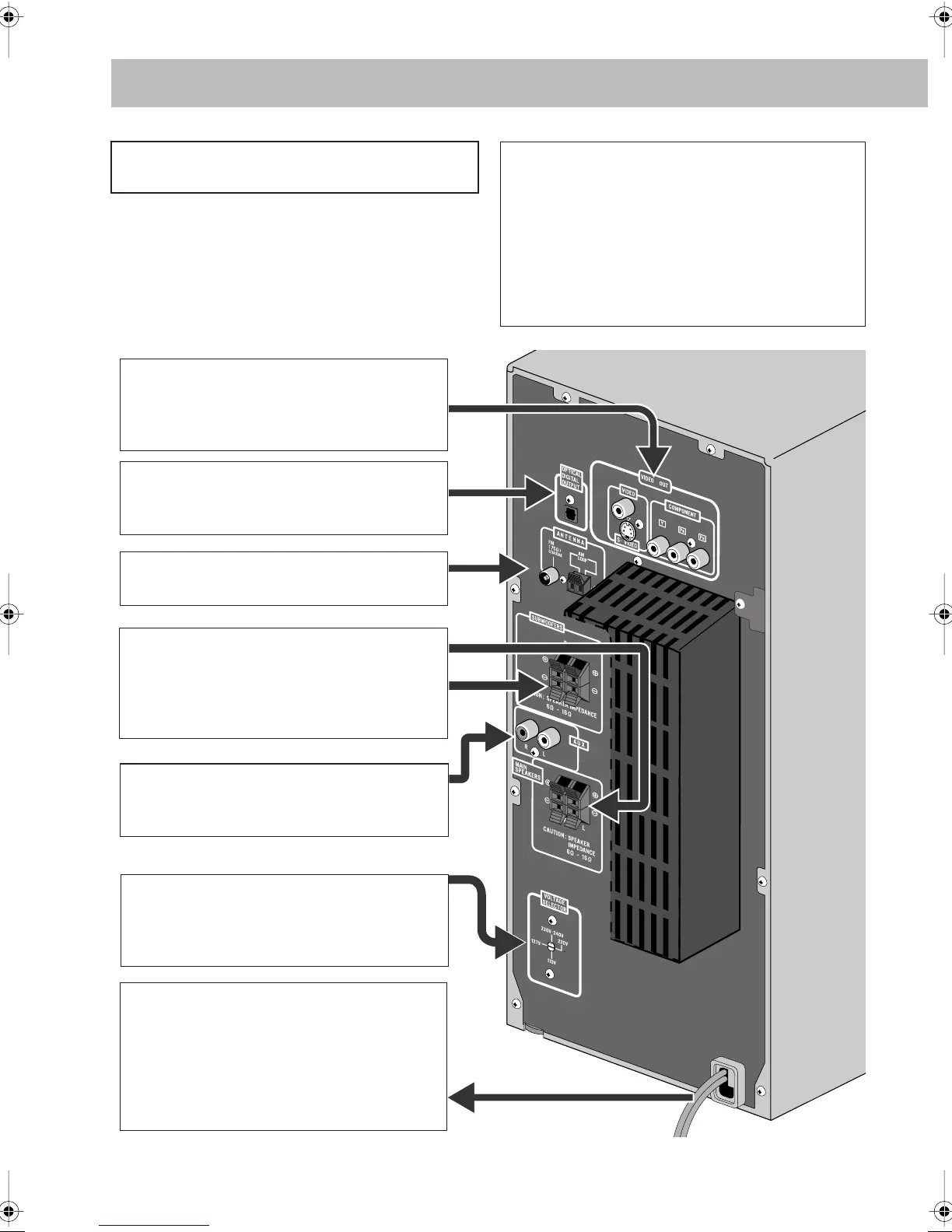

The illustration above is CA-DXJ30.
