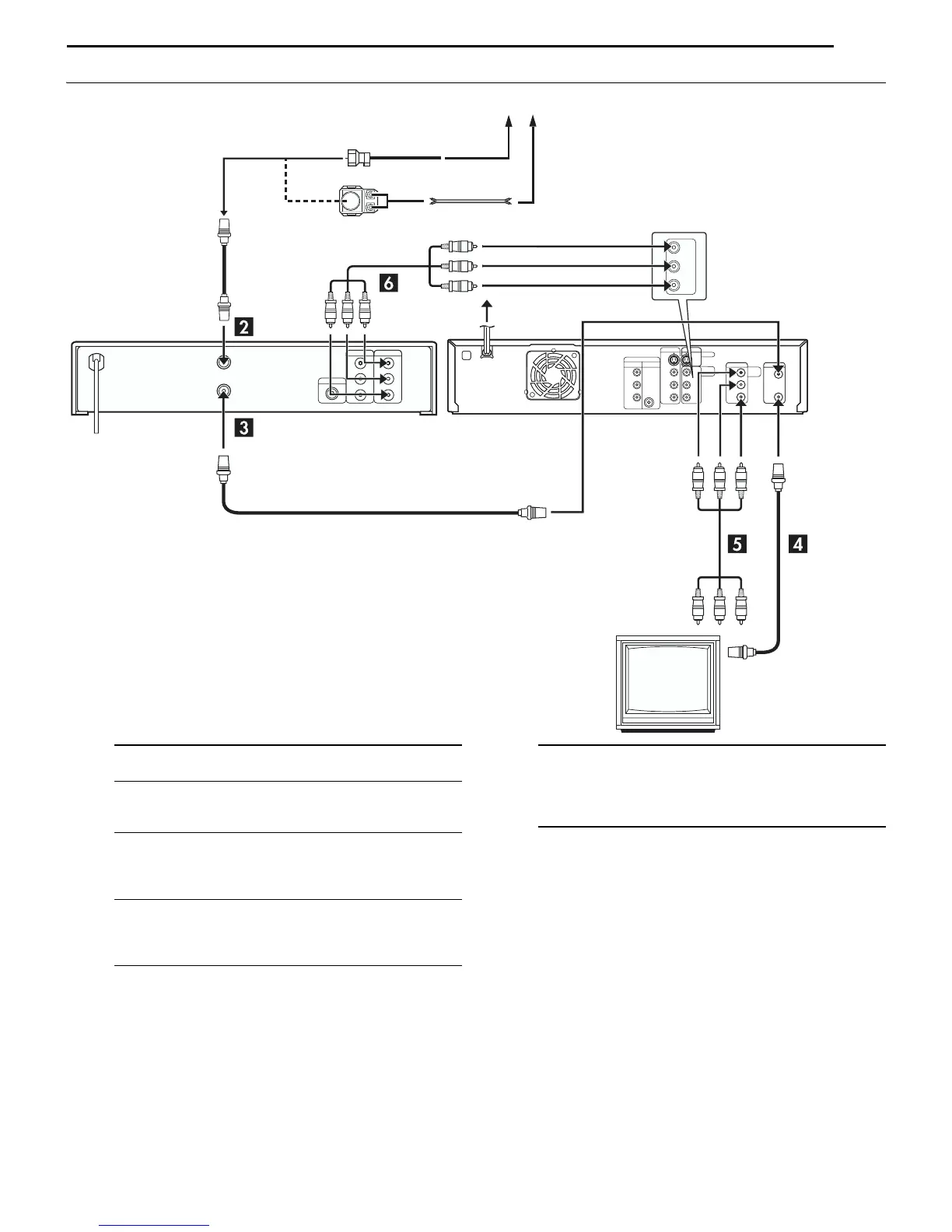

Composite Connection (With Cable Box Or DBS Receiver)
1 Disconnect the antenna from the TV.
2 Connect the antenna to the antenna input connector
on the cable box or DBS receiver.
3 Connect the RF cable between the unit’s [VHF/UHF
IN] connector to the antenna output connector on
the cable box or DBS receiver.
4 Connect the supplied RF cable between the [VHF/
UHF OUT] connector on the rear panel of the unit
and the TV’s antenna terminal.
5 Connect the supplied audio/video cable between the
[VIDEO/AUDIO OUTPUT (DVD/VCR)] connectors
on the unit and the TV’s audio/video input
connectors.
NOTE:
If your TV is compatible with S-VIDEO signals, connect the unit’s
[S VIDEO OUTPUT] connector to the TV’s S-VIDEO input connector.
● You can obtain high-quality S-VHS pictures.
● If your TV is not stereo-capable, use the unit’s [AUDIO OUTPUT]
connectors to connect to an audio amplifier for Hi-Fi stereo sound
reproduction.
6 Connect the audio/video cable between the [VIDEO/
AUDIO INPUT (DVD/VCR)] connectors on the unit
and the audio/video output connectors on the cable
box or DBS receiver.
7 Plug the end of the AC power cord into an AC outlet.
This unit performs Plug & Play Set automatically.
(墌 pg. 19)
● The clock and tuner channels will automatically be set when the
antenna is connected and when the AC power cord is first
connected to an AC outlet. (If “AUTO” and the channel indicator
are displayed on the front display panel before the unit is
powered on, the clock and tuner channels are being set
automatically. Wait for the time to be displayed on the front
display panel before turning on the unit.)
● “LOADING” blinks on the front display panel when the AC plug of
the AC power cord is connected into an AC outlet and it takes
approximately 50 seconds for the unit to be turned on. This is not
a malfunction.
