6
a Disc Tray (DVD deck)
Insert a disc here.
b Z OPEN/CLOSE
Opens or closes the disc tray.
c Cassette Compartment (VCR deck)
Insert a video cassette here.
d Z EJECT
Ejects the tape in the VCR deck.
e STANDBY/ON (1/`)
Switches the Recorder ON and OFF.
f N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
g x (STOP)
Stops playback
h z (REC)
Starts recording. Press repeatedly to set the
recording time. Press z (REC) for more than 3
seconds to set the unit to standby mode for
Timer-Link recording.
i m/M (BACKWARD / FORWARD)
-
DVD: Search backward or forward.
- VCR: Rewinds/Advances the tape during the STOP
mode, for fast reverse/ forward picture search.
j DUBBING
Press to copy DVD to VCR (or VCR to DVD).
DVD
BB
VCR
or Lights when recorder is dubbing.
DVD b VCR
k Display window
Shows the current status of the Recorder.
Lights when a disc is in the DVD deck.
The DVD deck is selected.
Lights when the Recorder is in playing mode
or flashes when search mode.
The VCR deck is selected.
Indicates when the recorder is in timer
recording or a timer recording is
programmed.
This indicator will flash when the unit is set
to standby mode for Timer-Link recording.
A VHS tape is inserted in the VCR deck.
The Recorder is recording.
Indicates PM time. (AM is not displayed.)
Indicates total playing time,
elapsed time, remaining time
or current deck status
(Playback, Pause, etc).
l Remote Sensor
Point the recorder Remote Control here.
m DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
n OUTPUT STATUS
Sets the output resolution for HDMI and COM-
PONENT OUTPUT jacks.
- HDMI: 1080p, 1080i, 720p, 480p, 480i
- COMPONENT: 480p, 480i
o DV IN
Connect the DV output of a digital camcorder.
p AV IN 2 (VIDEO /AUDIO (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/ Monitor, VCR,
Camcorder, etc.).
PM
REC
VCR
DVD

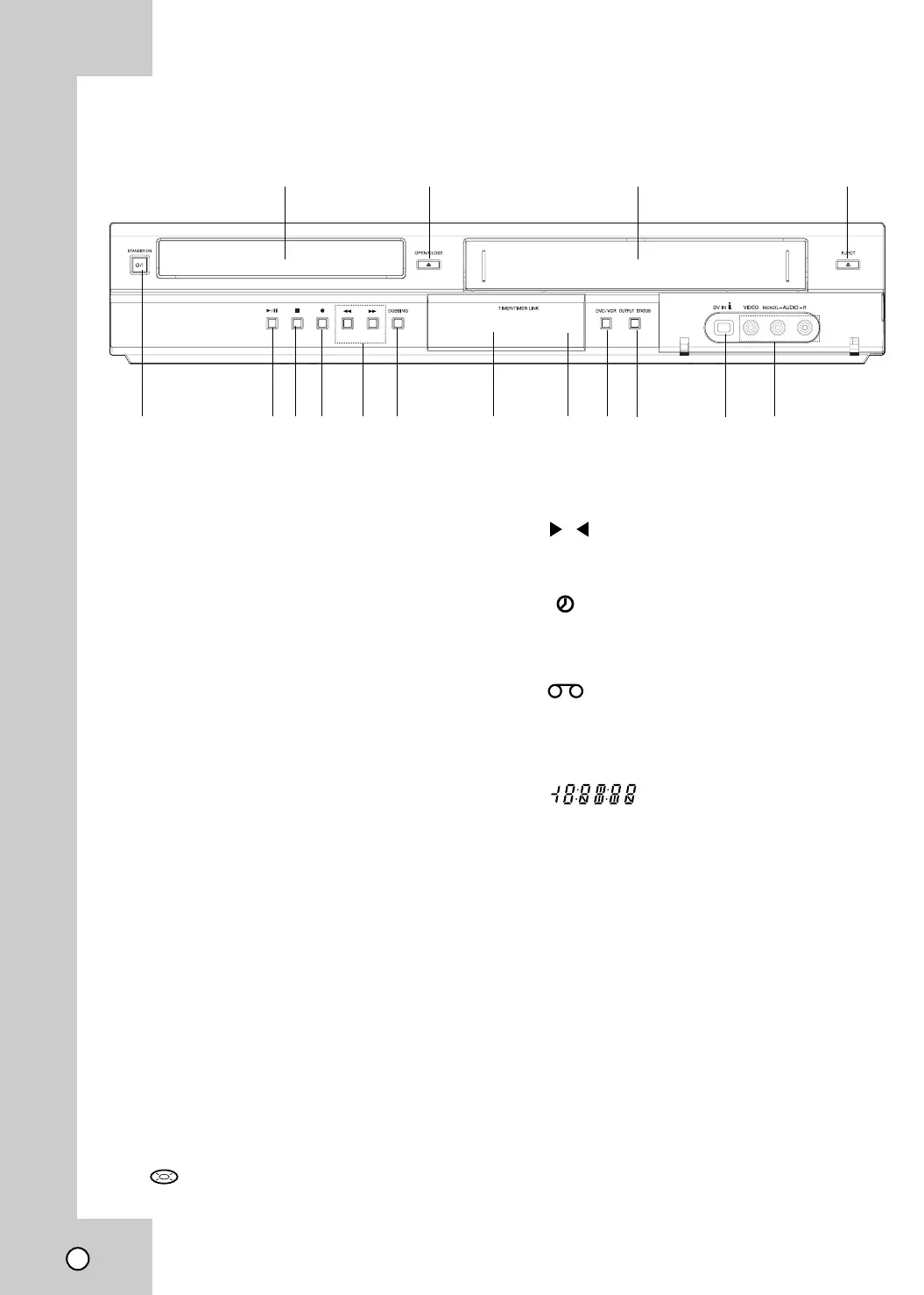

Front Panel
ab c d
e fgh i j k l m n o p
