Auxiliary equipment
@
Speakers and the subwoofer
To connect the speaker cords
• When connecting the speaker cords, match their polarity
with that of the speaker terminals: blue/red to (+) and black
to (–).
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the System.
• The main speakers and subwoofer are magnetically shielded
to avoid color distortions on TVs. However, if not installed
properly, it may cause color distortions. So, pay attention to
the following when installing the speakers.
– When placing the speakers near a TV set, turn off the
TV’s main power switch or unplug it before installing the
speakers.
Then wait at least 30 minutes before turning on the TV’s
main power switch again.
Some TVs may still be affected even though you have
followed the above instruction. If this happens, move the
speakers away from the TV.
¤
Power cord
Plug the AC power cord to a wall outlet.
Red
White
Stereo audio cord
(not supplied)

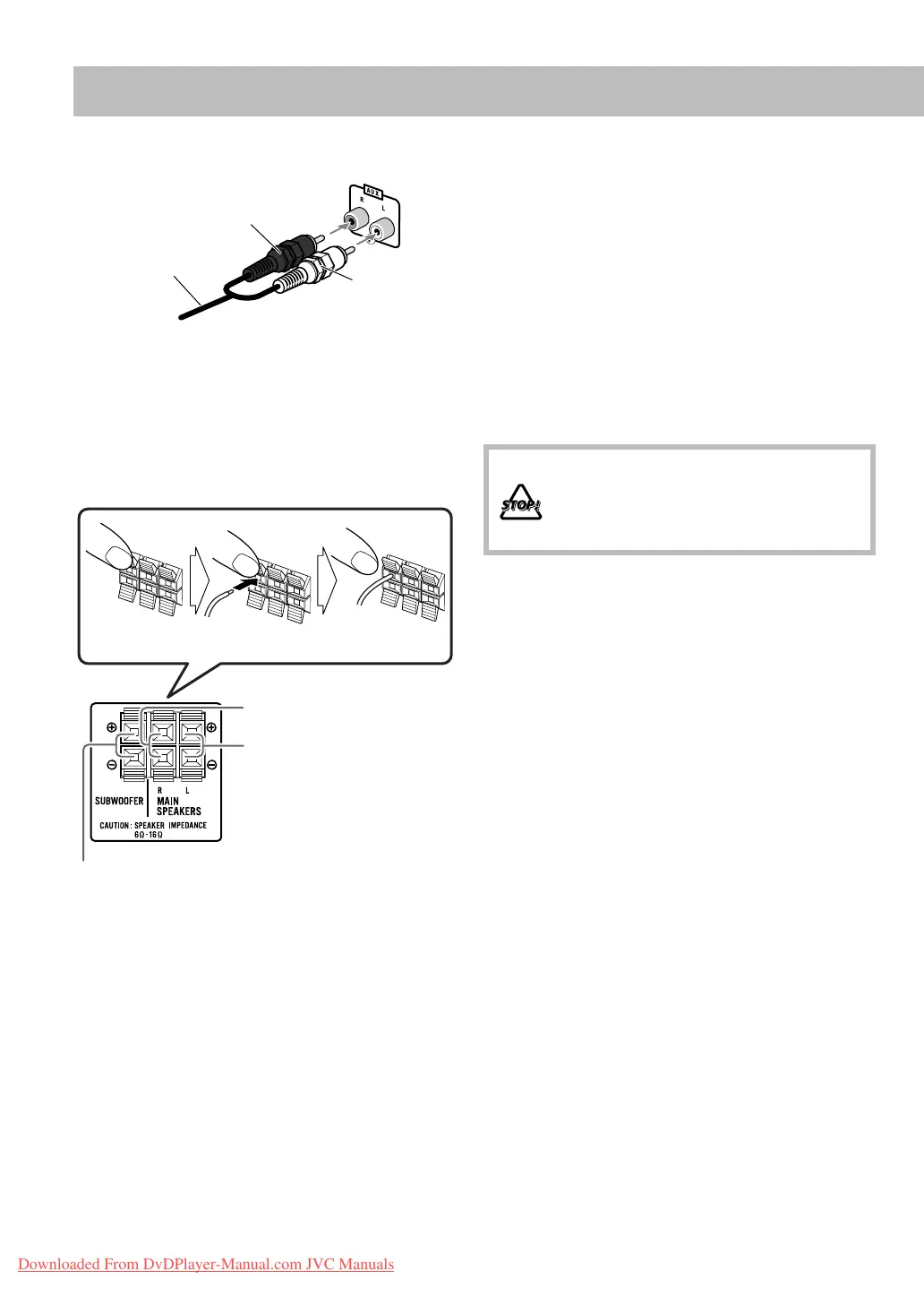

Press and hold Insert Release
From main right speaker (blue/
black)
From main left speaker (blue/
black)
From the subwoofer (red/black)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.
