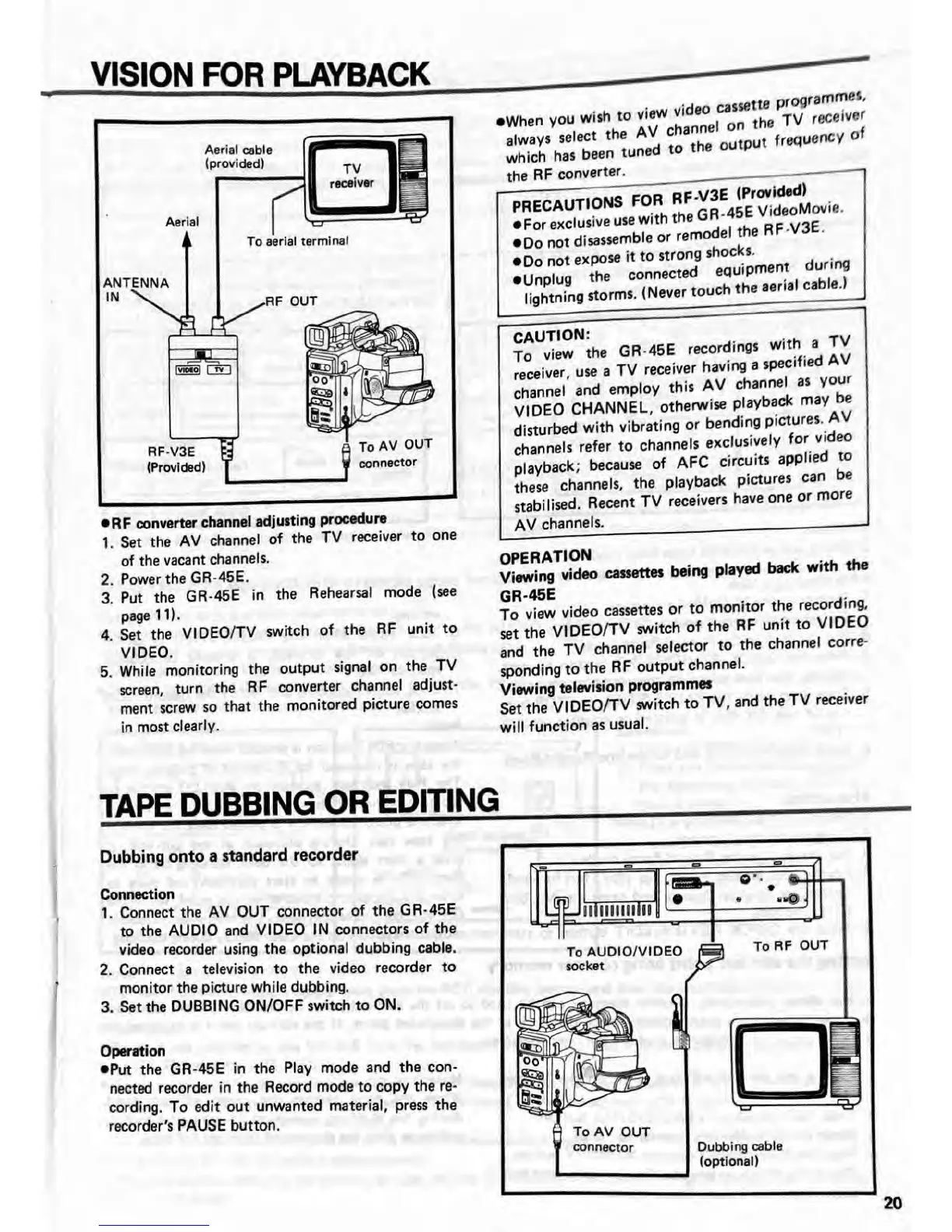

VISION FOR PLAYBACK
Aerial cable
(provided)
II receiver |
ANTENNA
IN \
To aerial terminal
.RF OUT
fvioiol f~TV~l
rSMfc
oo'"
RF-V3E
(Provided)
To AV OUT
connector
• RF converter channel adjusting procedure
1. Set the AV channel of the TV receiver to one
of the vacant channels.
2. Power the GR-45E.
3. Put the GR-45E in the Rehearsal mode (see
page 11).
4. Set the VIDEO/TV switch of the RF unit to
VIDEO.
5. While monitoring the output signal on the TV
screen, turn the RF converter channel adjust¬
ment screw so that the monitored picture comes
in most clearly.
•When you wish to ^ r eceiVe f r
which 8 has-been 1 tuned ttMhe output frequency
the RF converter---—- -
PRECAUTIONS FOR
• For exclusive use w.th the GR^45t
• Do not disassemble or remodel the RF Vd
• Do not expose it to strong * hockS n during
• Unplug the connected equipme
hghtni n g storms. (Nevertouch t heaenal^^
?o U vTew N ihe GR-45E recordings with a TV
receiver use a TV receiver having a specified A
channel and employ this AV channel as you
VIDEO CHANNEL, otherwise playback may
disturbed with vibrating or bending pictures,
channels refer to channels exclusively or vi eo
playback; because of AFC circuits applied to
these channels, the playback pictures can
stabilised. Recent TV receivers have one or more
AV c hannels. __
OPERATION
Viewing video cassettes being played back with the
To "view video cassettes or to monitor the recording
set the VIDEO/TV switch of the RF unit to VIDtU
and the TV channel selector to the channel corre¬
sponding to the RF output channel.
Viewing television programmes
Set the VIDEO/TV switch to TV, and the TV receiver
will function as usual.
TAPE DUBBING OR EDITING
Dubbing onto a standard recorder
Connection
1. Connect the AV OUT connector of the GR-45E
to the AUDIO and VIDEO IN connectors of the
video recorder using the optional dubbing cable.
2. Connect a television to the video recorder to
monitor the picture while dubbing.
3. Set the DUBBING ON/OFF switch to ON.
Operation
•Put the GR-45E in the Play mode and the con¬
nected recorder in the Record mode to copy the re¬
cording. To edit out unwanted material, press the
recorder's PAUSE button.
Illlllllllllll I
To AUDIO/VIDEO
socket
KID-
00*71 ■■
^ I
To RF OUT
□
To AV OUT
connector
Dubbing cable
(optional)
