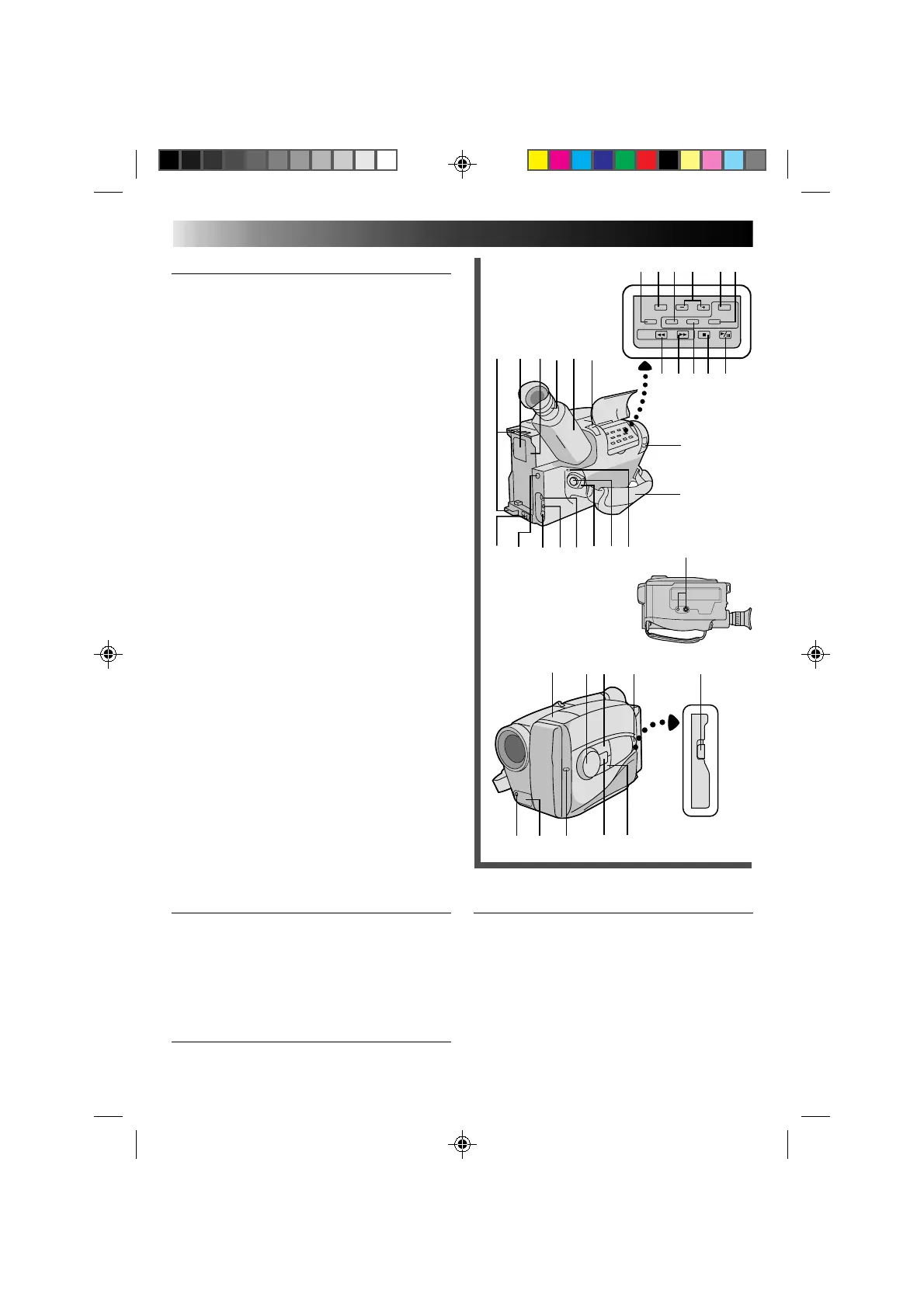

INDEX Controls
Controls
1 PROGRAM AE Select Dial .................. Z pg. 16
2 F1 [Function 1] Button ........................Z pg. 18
3 PUSH Button ....................................... Z pg. 11
4 Function SEL. Button ........................... Z pg. 18
5 F2 [Function 2] Button ........................Z pg. 18
6 EJECT Switch ....................................... Z pg. 11
7 Diopter Adjustment ............................. Z pg. 11
8 Power Zoom Switch ............................Z pg. 15
9 BATT. [Battery] RELEASE Switch ............ Z pg. 8
0 MWB [Manual White Balance]
Button ................................................. Z pg. 17
! Recording Mode [SP/EP] Select
Button .................................................
Z pg. 11
Tape Length [T20•T30•T40]
Select Button .......................................
Z pg. 11
COUNTER R [Reset]/M [Memory]
Button .................................................
Z pg. 31
@ EDIT Button (GR-AX310 only) ............. Z pg. 32
# DATE/TIME +/– Buttons ....................... Z pg. 10
CHAR. [Character] SET +/– Buttons ..... Z pg. 24
TRACKING +/– Buttons ....................... Z pg. 31
$ DATE/TIME SET Button ........................ Z pg. 10
CHAR. SET Button............................... Z pg. 24
R.A.EDIT IN/OUT Button
(GR-AX310 only) .................................
Z pg. 34
% R.A.EDIT Button
(GR-AX310 only) .................................
Z pg. 34
^ REW Button ........................................ Z pg. 30
RETAKE R [Quick Review] Button ....... Z pg. 15
& FF Button ............................................ Z pg. 30
RETAKE F Button .................................Z pg. 15
* R.A.EDIT CANCEL Button
(GR-AX310 only) .................................
Z pg. 34
( STOP Button ....................................... Z pg. 30
) PLAY/PAUSE Button ............................ Z pg. 30
q POWER Switch ...................................Z pg. 10
w Recording Start/Stop Button ................. Z pg. 12
Connectors
e REMOTE Jack ...................................... Z pg. 13
r Shoulder Strap Eyelets ......................... Z pg. 12
t EDIT Jack (GR-AX310 only) ................. Z pg. 32
y VIDEO Out Jack .................................. Z pg. 29
u RF DC OUT Jack .................................Z pg. 29
i AUDIO Out Jack .................................Z pg. 29
Indicators
o Tally Lamp .......................................... Z pg. 14
p Power On Indicator............................. Z pg. 14
Other Parts
Q Microphone
W Camera Sensor (Be careful not to cover this area;
built-in here is the sensor necessary for
shooting.)
E Clock Battery Compartment ................ Z pg. 10
R Battery Pack Mount ...............................Z pg. 8
T Electronic Viewfinder .......................... Z pg. 11
Y LENS COVER Switch ........................... Z pg. 14
U Grip Strap ........................................... Z pg. 12
I Tripod Mounting Socket ...................... Z pg. 12
0!@# $
^&*()
%
qw9
78
tyui
r
I
p
U
Y
ER T
12
45
6
3
e
Q
W o
