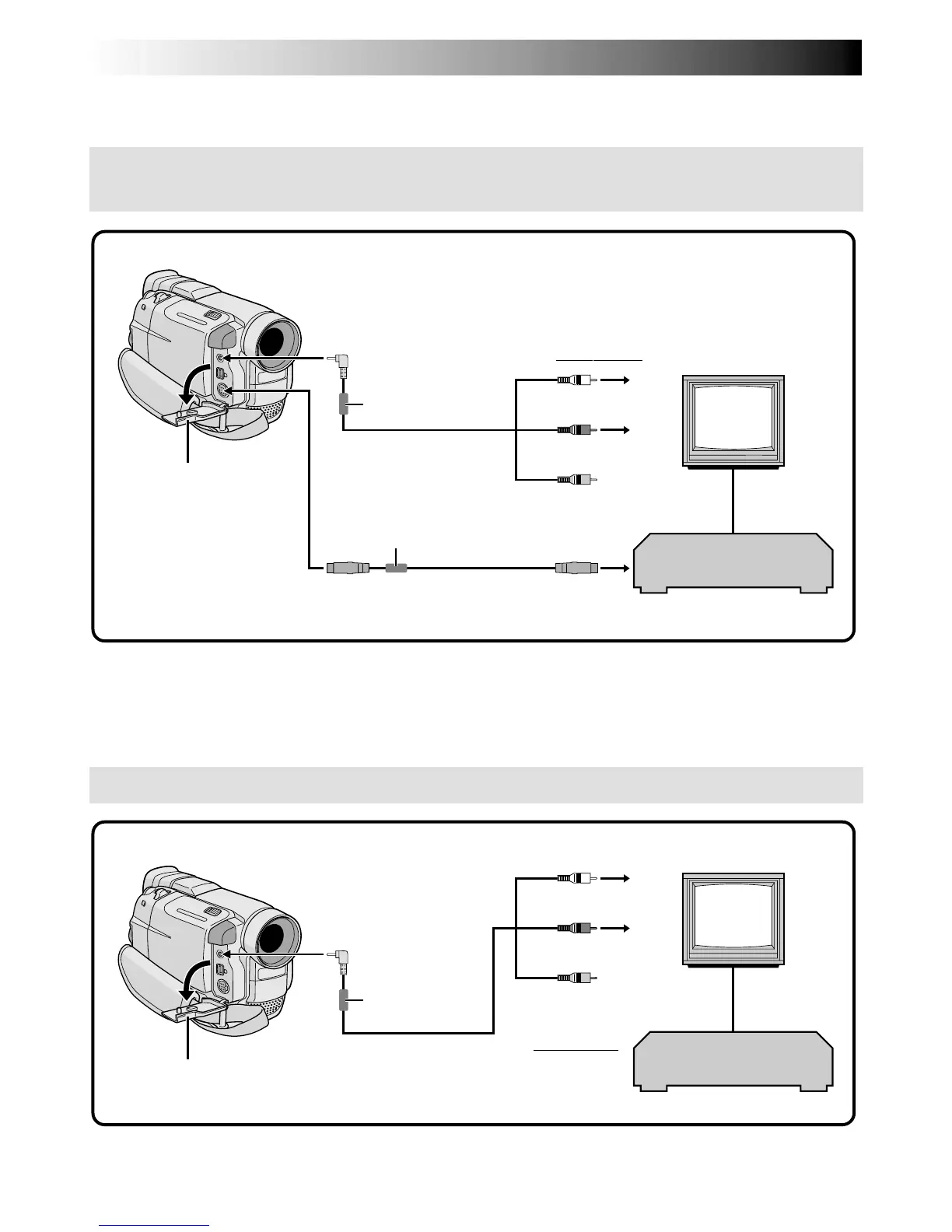

PLAYBACK Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
To AV
To S
Audio/Video cable
(provided)
Connector cover*
White to
AUDIO L IN
Red to
AUDIO R IN
To S-VIDEO IN
To TV or VCR
S-Video cable
(optional)
TV
VCR
Audio/Video cable
(provided)
To AV
Red to
AUDIO R IN
TV
VCR
To TV or VCR
White to
AUDIO L IN
* When connecting the cables, open this cover.
Connector cover*
Yellow: Not connected
Yellow to VIDEO IN
Core filter
Core filter
A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input
connectors
B.Connection to a TV or VCR equipped only with A/V input connectors
* When connecting the cables, open this cover.
Core filter
