VCR CODE LIST
Vicinity!
ne
PHILIPS
Oe i]
PANASONIC
‘SANYO
‘SHARP.
SONY
TOSHIBA
1GOO000900|00/00/0000/000/00/0: 1OOO0000|00/00/0000/000/00)0:
ZENITH
}O/O0| ©000/ 66/00 / 00000/00000/0: 1@|©0| ©000/ 00 /00/00068/00000/0)
if REMOTE. CONEROLUNIF (cont.)

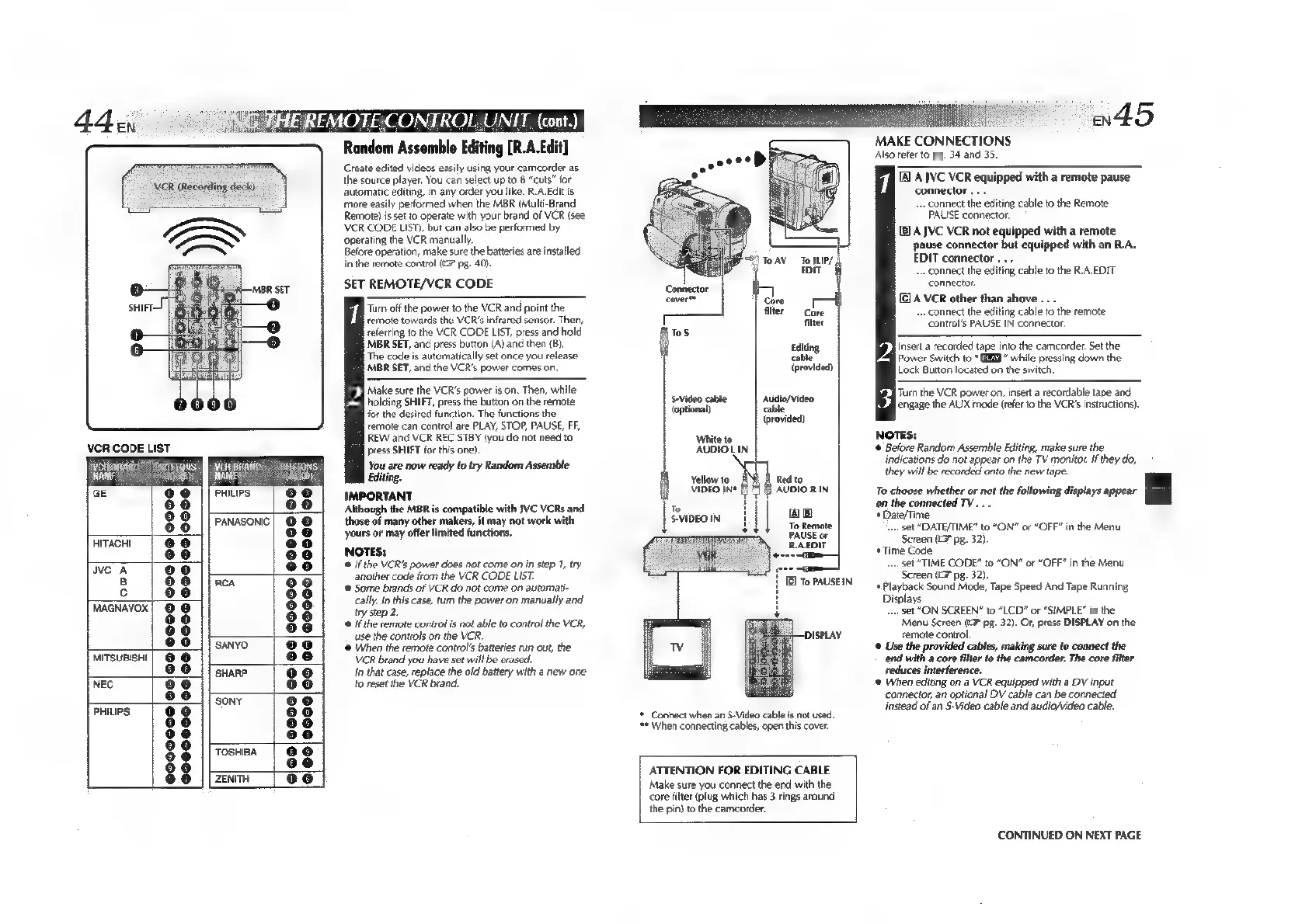

Random Assemble Editing [R.A.Edit]
Create edited videos easily using your camcorder as
the source player. You can select up to 8 “cuts” for
automatic editing, in any order you like. R.A.Edit is
more easily performed when the MBR (Multi-Brand
Remote) is set to operate with your brand of VCR (see
VCR CODE LIST), but can also be performed by
operating the VCR manually.
Before operation, make sure the batteries are installed
in the remote control (C# pg. 40).
SET REMOTE/VCR CODE
‘Tum off the power to the VCR and point the
remote towards the VCR's infrared sensor. Then,
referring to the VCR CODE LIST, press and hold
MBR SET, and press button (A) and then (B).
The code is automatically set once you release
MBR SET, and the VCR's power comes on.
Pog Sake sre the VCR's power ton. Then, while
holding SHIFT, press the button on the remote
for the desired function. The functions the
remote can contro! are PLAY, STOP, PAUSE, FF,
REW and VCR REC STBY (you do not need to
press SHIFT for this one).
You are now ready to try Random Assemble
Editing.
IMPORTANT
Although the MBR is compatible with JVC VCRs and
those of many other makers, it may not work with
yours or may offer limited functions.
NOTES:
© if the VCR’s power does not come on in step 1, try
another code from the VCR CODE LIST.
‘© Some brands of VCR do not come on automati-
cally. In this case, turn the power on manually and
try step 2.
© /f the remote control is not able to control the VCR,
use the controls on the VCR.
‘© When the remote control's batteries run out, the
VCR brand you have set will be erased.
In that case, replace the old battery with a new one
to reset the VCR brand,
Core
filter
Edit
cable
(provided)
S-Video cable Audio/Video
(optional) cable
(provided)
White to
AUDIO LIN
Yellow to Red to
VIDEO IN* AUDIO RIN
To
| Bhoc0 IN | | te
PAUSE or
RA.EDIT
* Connect when an S-Video cable is not used.
** When connecting cables, open this cover.
ATTENTION FOR EDITING CABLE
Make sure you connect the end with the
core filter (plug which has 3 rings around
the pin) to the camcorder.
w45
MAKE CONNECTIONS
Also refer to pg. 34 and 35.
AJVC VCR equipped with a remote pause
connector. .
... connect the editing cable to the Remote
PAUSE connector.
AJVC VCR not equipped with a remote
pause connector but equipped with an R.A.
EDIT connector
"connect the ed
connector.
TA VCR other than above...
.. connect the editing cable to the remote
control's PAUSE IN connector.
cable to the R.A.EDIT
£9 } Insert a recorded tape into the camcorder, Set the
Power Switch to " GJ” while pressing down the
Lock Button located on the switch.
Turn the VCR power on, insert a recordable tape and
F94 engage the AUX mode (refer to the VCR's instructions).
NOTES:
© Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If they do,
they will be recorded onto the new tape. =
To choose whether or not the following displays appear
on the connected TV...
* Date/Time
set “DATE/TIME” to “ON" or “OFF” in the Menus
Screen (CF pg. 32).
*Time Code
ssw S¢t "TIME CODE" to “ON’ or “OFF” in the Menu
Screen (F pg. 32).
* Playback Sound Mode, Tape Speed And Tape Running
Displays
sew S@t "ON SCREEN’ to “LCD" or “SIMPLE” in the
Menu Screen (&F pg. 32). Or, press DISPLAY on the
remote control.
‘© Use the provided cables, making sure fo connect the
end with a core filter to the camcorder. The core filter
reduces interference.
© When editing on a VCR equipped with a DV input
connector, an optional DV cable can be connected
instead of an S-Video cable and audio/video cable.
CONTINUED ON NEXT PAGE
