2-18
1
2
3
4
5
Cassette housing assembly
S1×3
W2×1
Reel disk (SUP) assembly
W2×1
W3a×1
P5×1
Reel cover assembly
S2a×2
S2b×1
W2×1
Reel disk (TU) assembly
Tension arm
assembly
Release guide
assembly
W3b×1
Idler arm
assembly
W3a×1
Pinch roller arm
assembly
Guide arm
assembly
Cleaner arm assembly
W4×1 P4a×1 P4b×1
Slant pole arm assembly
S4×3
Drum assembly
Guide roller (S) assembly
W5a×3 W5b×1
Rail assembly
2a
A
2b
3a 3b 3c 3d 3e
2c
4b
5b
4a
5a
4c

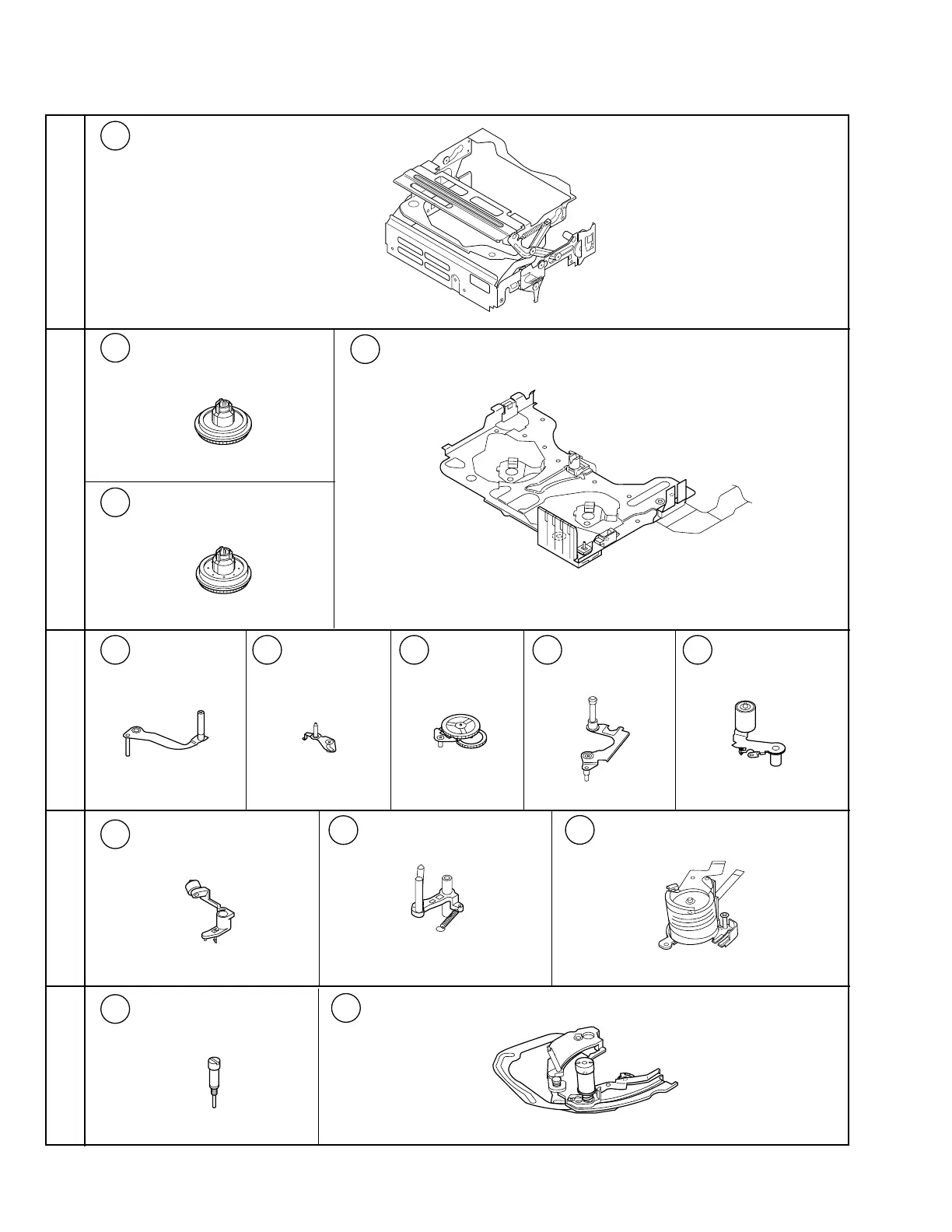

2.7 SERVICE NOTE
Use the following chart to manage mechanism parts that are removed for disassembling the mechanism.
Table 2-7-1a
