These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.

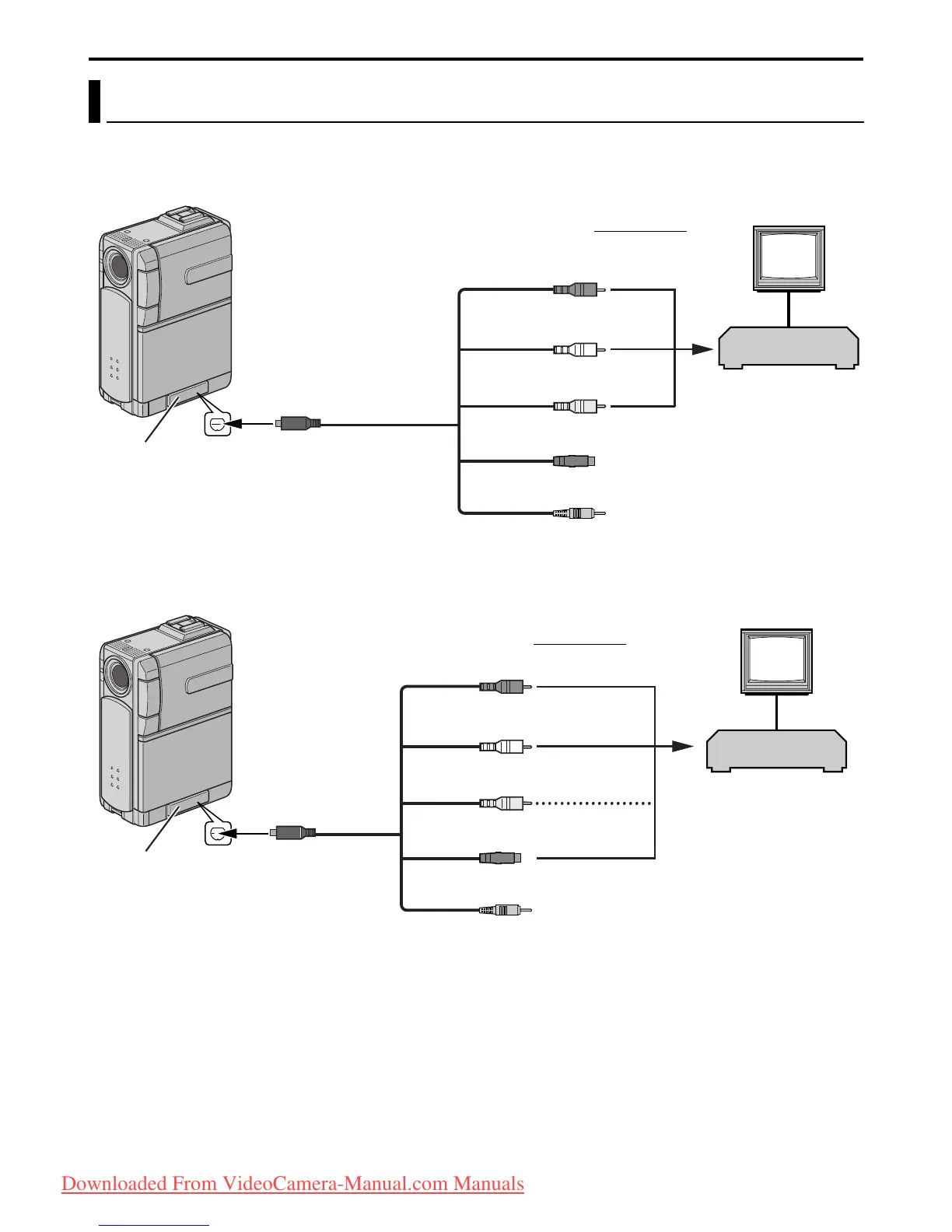

A. Connection to a TV or VCR equipped only with A/V input connectors
* Not required for watching still images only.
** When connecting the cable, open the cover.
B. Connction to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
* Not required for watching still images only.
** When connecting the cable, open the cover.
Connections To A TV Or VCR
TV
White to AUDIO L IN*
Red to AUDIO R IN*
VCR
To S/AV connector
S/AV/Editing cable
(provided)
Yellow to VIDEO IN
Black: Not connected
To TV or VCR
Not connected
Connector Cover**
To TV or VCR
TV
VCR
To S/AV connector
White to AUDIO L IN*
Red to AUDIO R IN*
Black to S-IN
Not connected
S/AV/Editing cable
(provided)
Connector
Cover**
Yellow: Not connected
VIDEO PLAYBACK (cont.)
