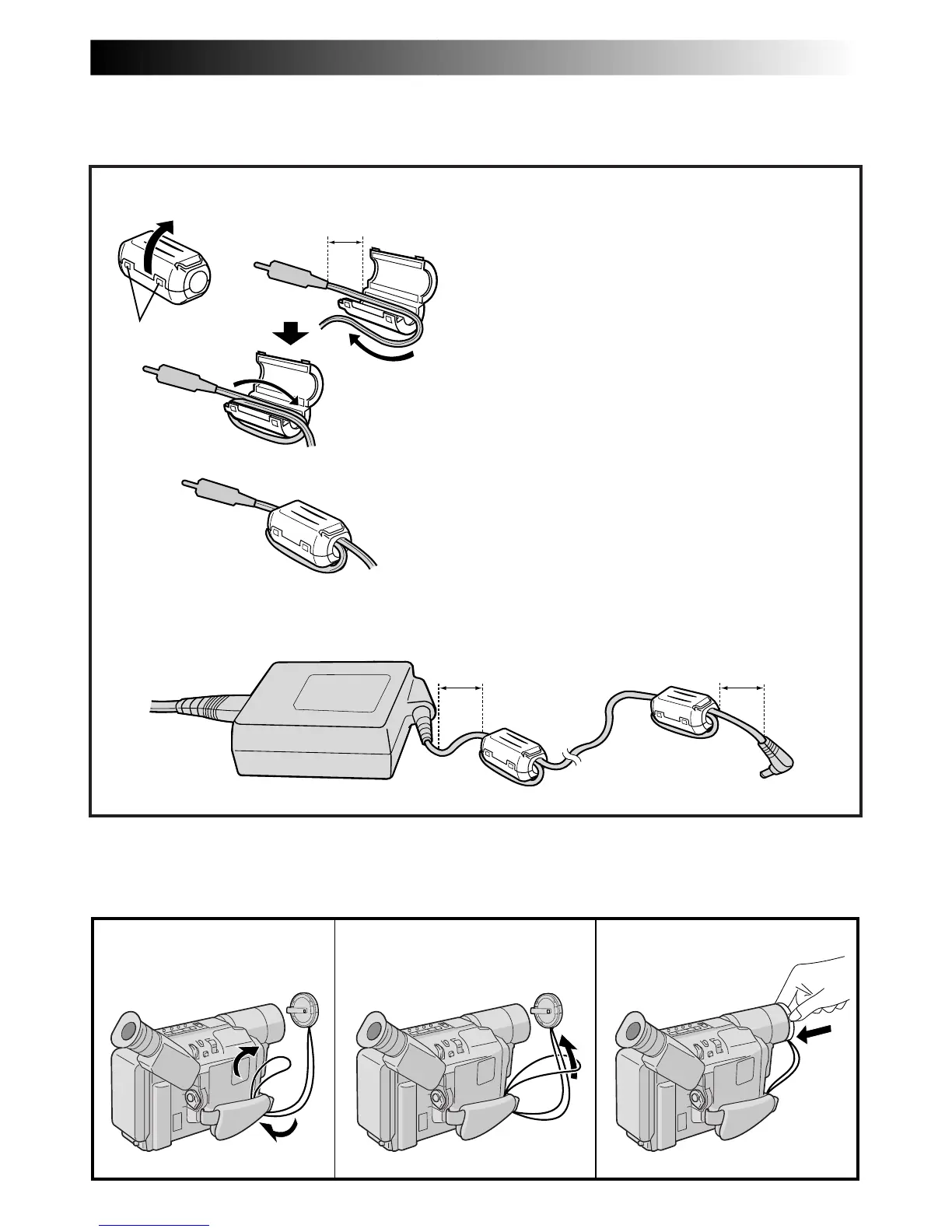

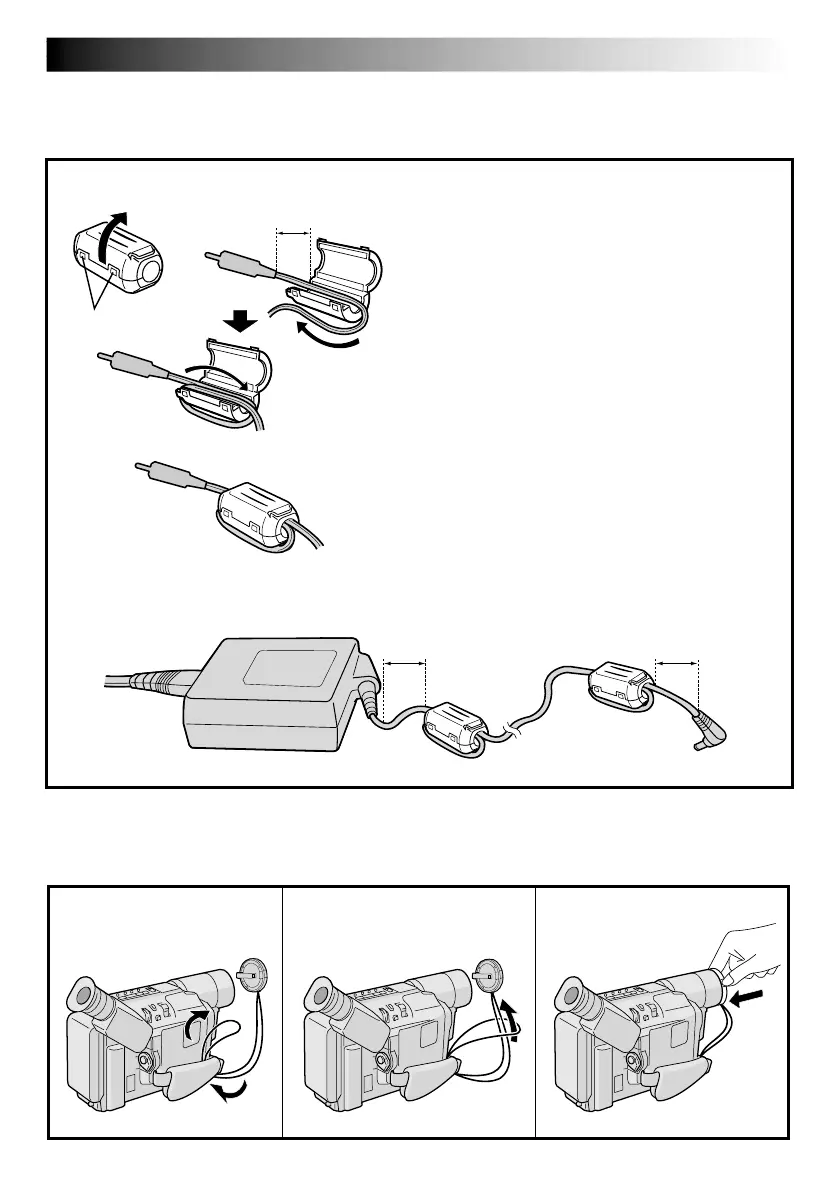

How To Attach The Core Filter
Attach the provided Core Filter to the provided A/V Cable, S-Video Cable and AC Adapter.
The Core Filter reduces interference.
1
Release the stoppers on both ends of the Core
Filter.
2
Run the cable through the Core Filter, leaving
approx. 5 cm of cable between the cable plug
and the Core Filter. Wind the cable around the
outside of the Core Filter as shown in the
illustration.
•Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
3
Close the Core Filter until it clicks shut.
Connect the end of the cable with the Core
Filter to the camcorder.
5 cm
Stopper
132
How To Attach The Lens Cap
To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.
With the provided AC Adapter, attach Core Filters to both ends of the cable as shown below.
5 cm
5 cm
To Next Page
