Page 4 November 7, 2002 12:51 pm
— 4 —

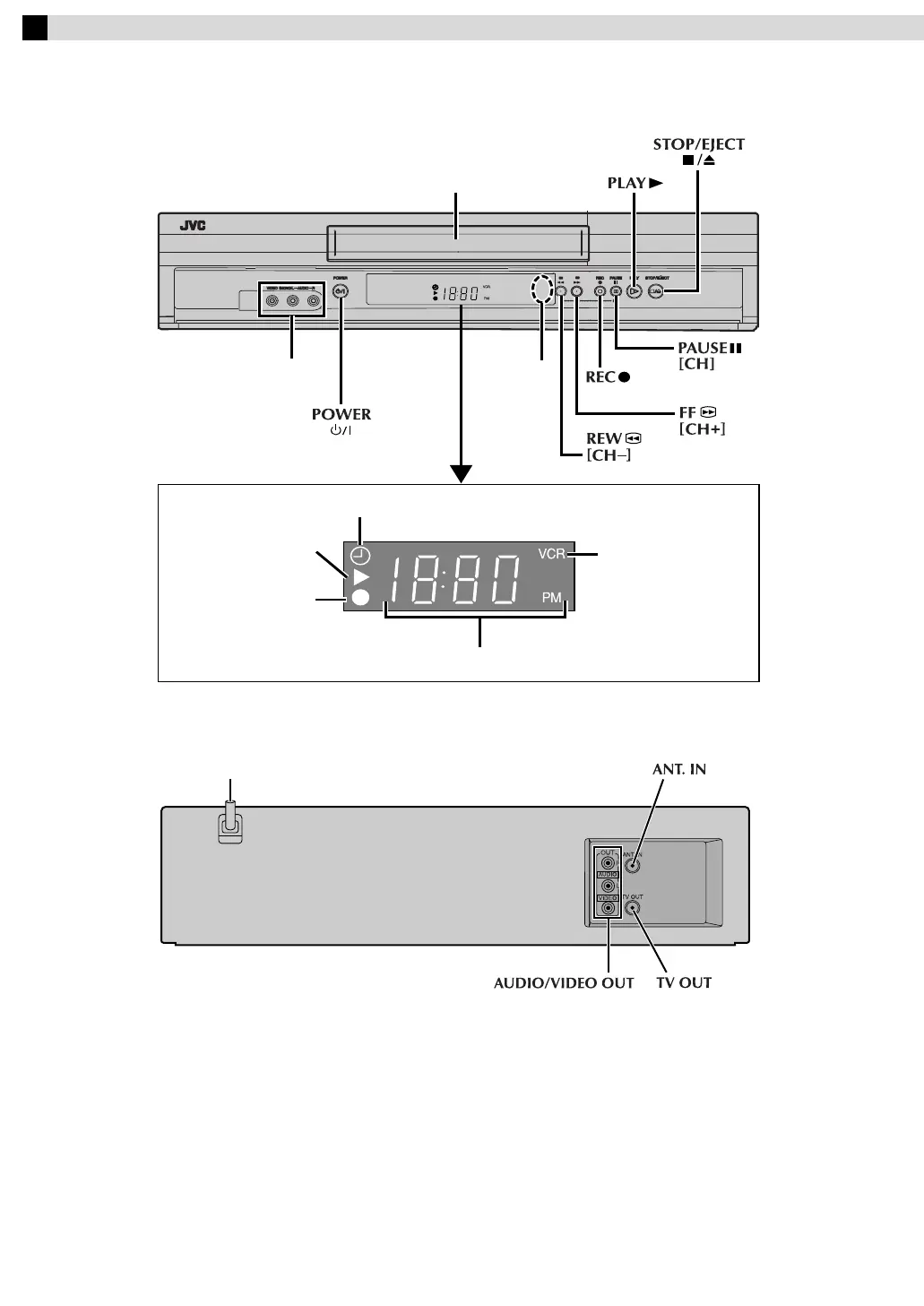

Buttons, Connectors and Indicators
Front Panel
Rear Panel
Display panel
Timer mode indicator
VCR mode
indicator
Play indicator
Record
indicator
Channel and auxiliary input/Clock timer
Infrared beam
receiving
window
VIDEO/AUDIO
input connectors
Cassette loading slot
AC power cord
CONTINUED ON NEXT PAGE
