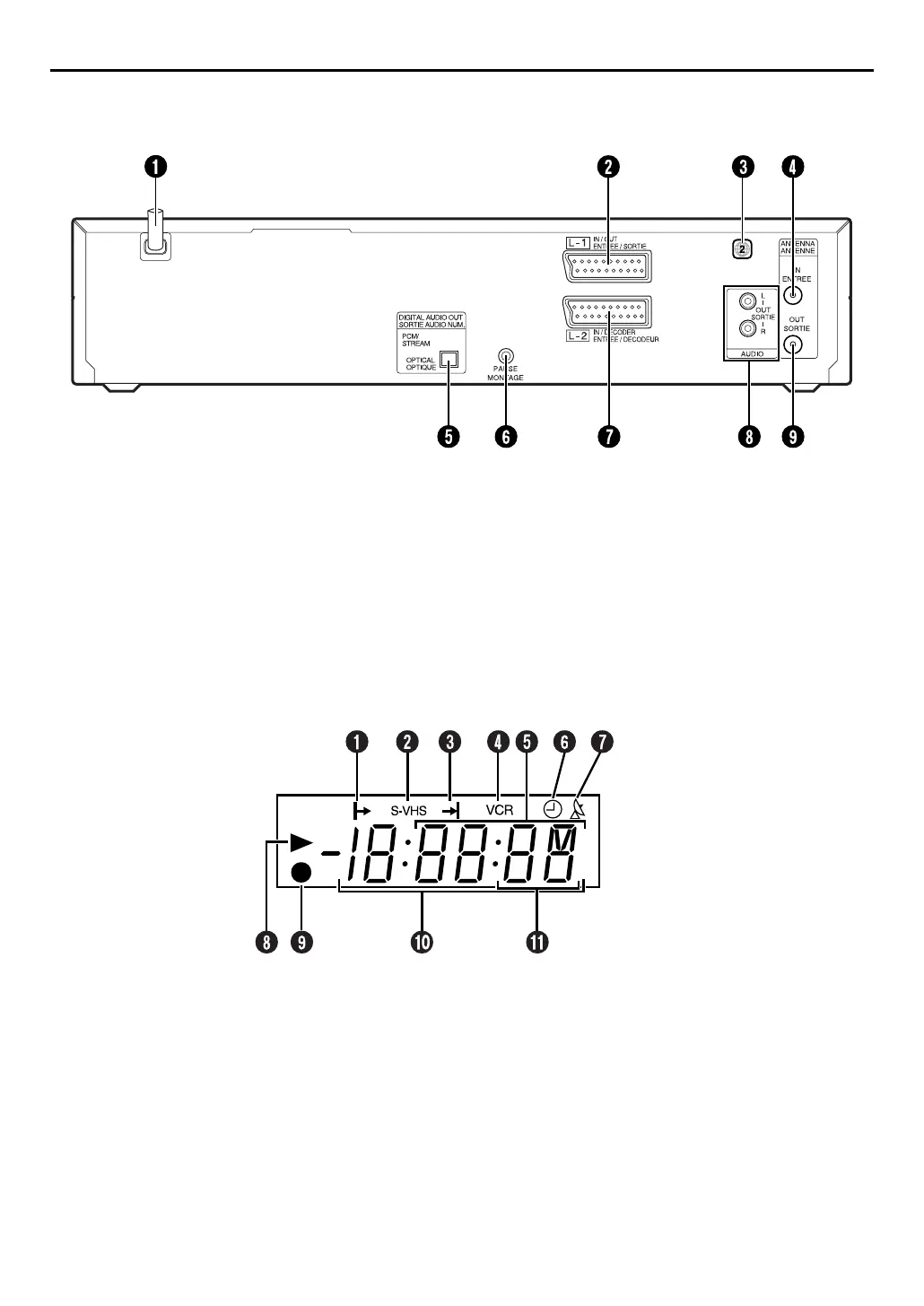

REAR VIEW
A
Mains Power Cord
墌
pg. 12
B
L-1 Input/Output Connector (L-1 IN/OUT)
墌
pg. 12, 59, 66, 67
C
Region Number Label
墌
pg. 5
D
Antenna Input Connector (ANTENNA IN)
墌
pg. 12
E
Digital Audio Output Connector
(DIGITAL AUDIO OUT)
墌
pg. 63
F
Remote Pause Connector (PAUSE)
墌
pg. 58
G
L-2 Input/Decoder Connector
(L-2 IN/DECODER)
墌
pg. 59, 66, 67
H
Audio Output Connectors
(AUDIO OUT (L/R))
I
Antenna Output Connector (ANTENNA OUT)
墌
pg. 12
FRONT DISPLAY PANEL
A
Start Time Indicator (
V
) (S-VHS deck only)
墌
pg. 32
B
S-VHS Indicator (S-VHS deck only)
墌
pg. 71, 73
C
Stop Time Indicator (
v
) (S-VHS deck only)
墌
pg. 32
D
VCR Indicator (S-VHS deck only)
墌
pg. 27
E
Channel/Clock
Remain Display (S-VHS deck only)
墌
pg. 28
Mode Display (L-1, L-2, F-1, S-1 or SAT*)
(S-VHS deck only)
* When “L-2 SELECT” is set to “SAT” (
墌
pg. 61), “SAt” appears
instead of “L-2”.
F
“Timer” Indicator (S-VHS deck only)
墌
pg. 31, 33
G
Automatic Satellite Programme Recording
Indicator (
N
) (S-VHS deck only)
墌
pg. 35
H
Play Indicator
I
Record Indicator (S-VHS deck only)
J
Multi-information window* (DVD deck)
Counter Display (S-VHS deck)
* The current group/title/track/chapter number(s), time and status
information.
K
Tape Speed (SP/LP/EP) (S-VHS deck only)
墌
pg. 26
