6
English
~

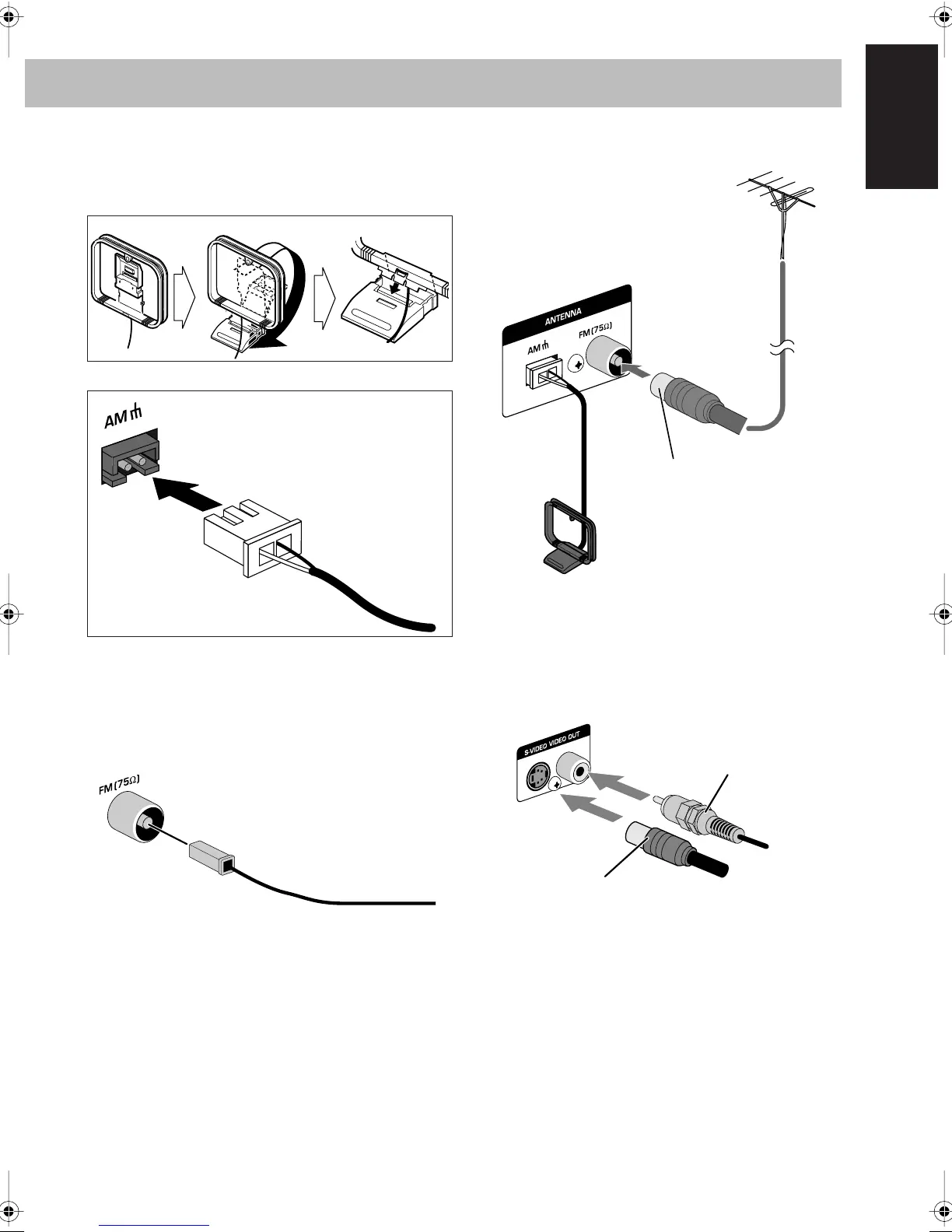

To assemble and connect the AM loop
antenna
To assemble the AM loop antenna
To connect the AM loop antenna cords
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System, connecting
cords, and the AC power cord. This could cause poor
condition.
To connect the FM antenna
Extend the supplied FM antenna horizontally.
For better FM/AM reception
Ÿ
TV/monitor
Connect the S-VIDEO or VIDEO jacks which you want
to use.
• The video signals from the external equipment connected
to GAME/AUX jack are output as composite video signal.
The system does not output S-video signals for these
external equipment.
AM loop antenna cord
(supplied)
FM antenna (supplied)
Outdoor FM
antenna
(not supplied)
AM loop antenna
Keep it connected.
Disconnect the supplied FM
antenna, and connect to an
outdoor FM antenna using a 75
Ω wire with coaxial type
connector (IEC or DIN45325).
Composite video cord
(supplied)
S-video cord
(not supplied)
EN_HX-D77[C]_f.book Page 6 Thursday, February 23, 2006 5:14 PM
