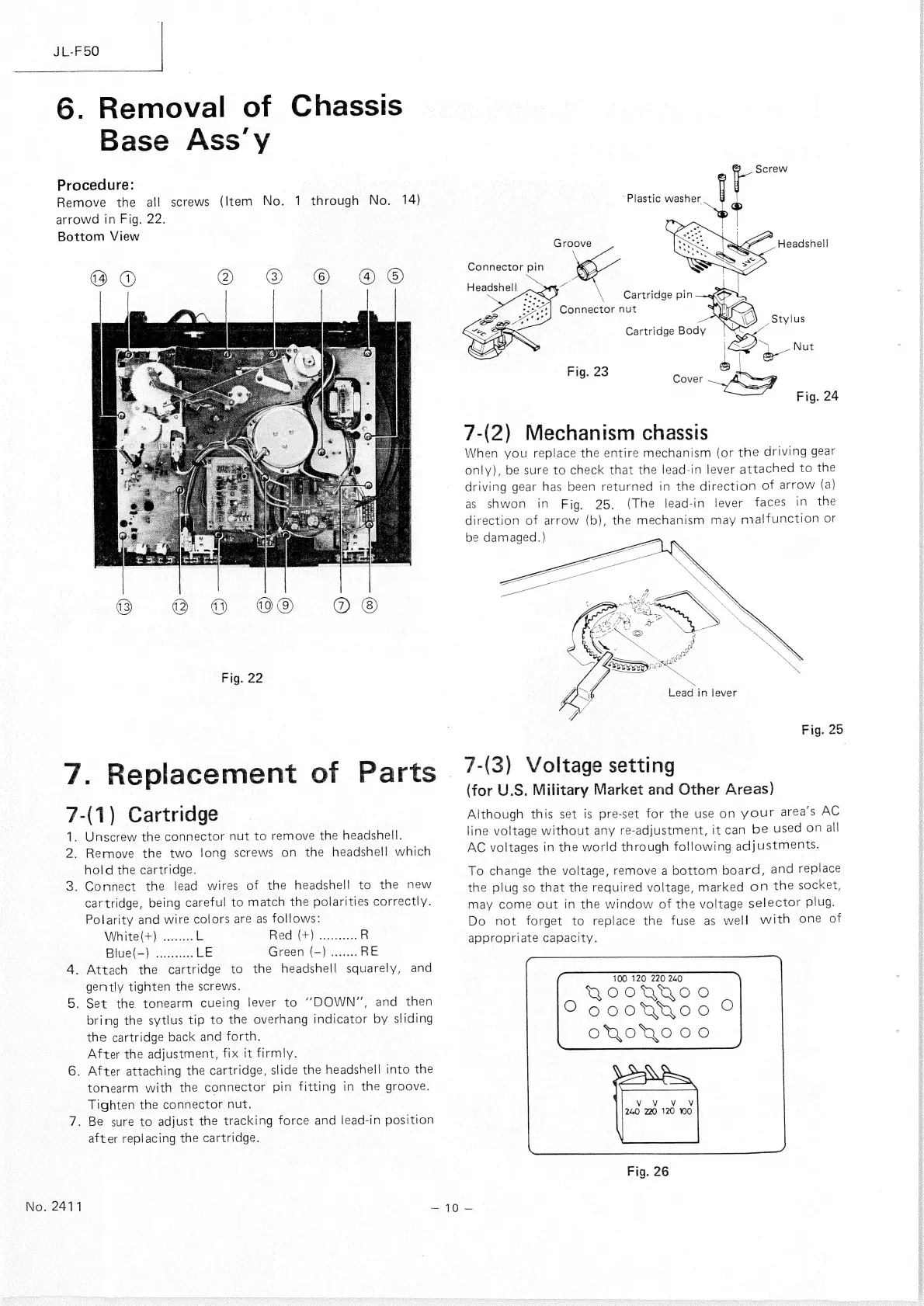

No.
2411
JL-F50
6.
Removal
of
Chassis
Base
Ass’
y
Procedure:
Remove
the
all
screws
(Item
No.
1
through
No.
14)
arrowd
in
Fig.
22.
Bottom
View
@
®@
®
©
©©
Oo
OM.
O@.
2.
O
®
Fig.
22
7-(1)
Cartridge
1.
Unscrew
the
connector
nut
to
remove
the
headshell.
2.
Remove
the
two
long
screws
on
the
headshell
which
hold
the
cartridge.
3.
Connect
the
lead
wires
of
the
headshell
to
the
new
cartridge,
being
careful
to
match
the
polarities
correctly.
Polarity
and
wire
colors
are
as
follows:
White(+):
secae
Ls
Red
(4a
R
Blue(—)
os.
EE
Greer:
(=)...
RE
4.
Attach
the
cartridge
to
the
headshell
squarely,
and
gently
tighten
the
screws.
5.
Set
the
tonearm
cueing
lever
to
““DOWN"”,
and
then
bring
the
sytlus
tip
to
the
overhang
indicator
by
sliding
the
cartridge
back
and
forth.
After
the
adjustment,
fix
it
firmly.
6.
After
attaching
the
cartridge,
slide
the
headshell
into
the
tonearm
with
the
connector
pin
fitting
in
the
groove.
Tighten
the
connector
nut.
7.
Be
sure
to
adjust
the
tracking
force
and
lead-in
position
after
replacing
the
cartridge.
Groove
~
Headshell
Connector
pin
Headshell
Cartridge
pin
Connector
nut
_
Stylus
Cartridge
Body
ay
_
Nut
&
Fig.
23
ee
-
Fig.
24
7-(2)
Mechanism
chassis
When
you
replace
the
entire
mechanism
(or
the
driving
gear
only),
be
sure
to
check
that
the
lead-in
lever
attached
to
the
driving
gear
has
been
returned
in
the
direction
of
arrow
(a)
as
shwon
in
Fig.
25.
(The
lead-in
lever
faces
in
the
direction
of
arrow
(b),
the
mechanism
may
malfunction
or
be
damaged.)
lead
in
lever
Fig.
25
7-(3)
Voltage
setting
(for
U.S.
Military
Market
and
Other
Areas)
Although
this
set
is
pre-set
for
the
use
on
your
area's
AC
line
voltage
without
any
re-adjustment,
it
can
be
used
on
all
AC
voltages
in
the
world
through
following
adjustments.
To
change
the
voltage,
remove
a
bottom
board,
and
replace
the
plug
so
that
the
required
voltage,
marked
on
the
socket,
may
come
out
in
the
window
of
the
voltage
selector
plug.
Do
not
forget
to
replace
the
fuse
as
well
with
one
of
appropriate
capacity.
100
120
220
240
(OO
GO
sis]
oO
Soothe
O
Fig.
26
