2-1
CN601
SW1
SW2
REST
SWITCH
LOAD/FEED
MOTOR
SPINDLE
MOTOR
PICK UP
CN601
SW1
SW2
REST
LOAD/FEED+
LOAD/FEED-
SPINDLE+
SPINDLE-
FOCUS+
FOCUS-
TRACKING+
TRACKING-
VA,VB,VE,VF
MD,LD
IC601
CD RF
IC621
D.SERVO
& DSP
IC681
CD DRIVER
VA,VB
VE,VF
MD,LD
VREF
RWSEL,IOP
IC501
CPU
IC571
24bit DAC
IC572
CD LPF
IC503
J-BUS BUFF
CN501
RFGC
RF,FE,TE
RFRP
SEL,TEB
RFDC
REST,SW1,SW2
LOAD/FEED+
LOAD/FEED-
SPINDLE+
SPINDLE-
TRACKING+
TRACKING-
FOCUS+
FOCUS-
VREF
CDON
LD/FE
FMO
DMO
TRO
FOO
BUS0 to BUS3
BUCK,CCE
DSPRST
DACML
DACMC
DACMD
CDRESET
B.DET,P.DET
CDMUTE,CDREQ
BUSSO,BUSSI
BUSIO,/BUSIO
BUSSCK
BUSSI/SO
BUSCLK
VOUTL
VOUTR
CD.L-CH
CD.R-CH
IC652
MP3 DEC
SDO
BCK
LRCK
DATA
BCK
LRCK
MP3DA
MP3CK
MP3STB
MP3RST

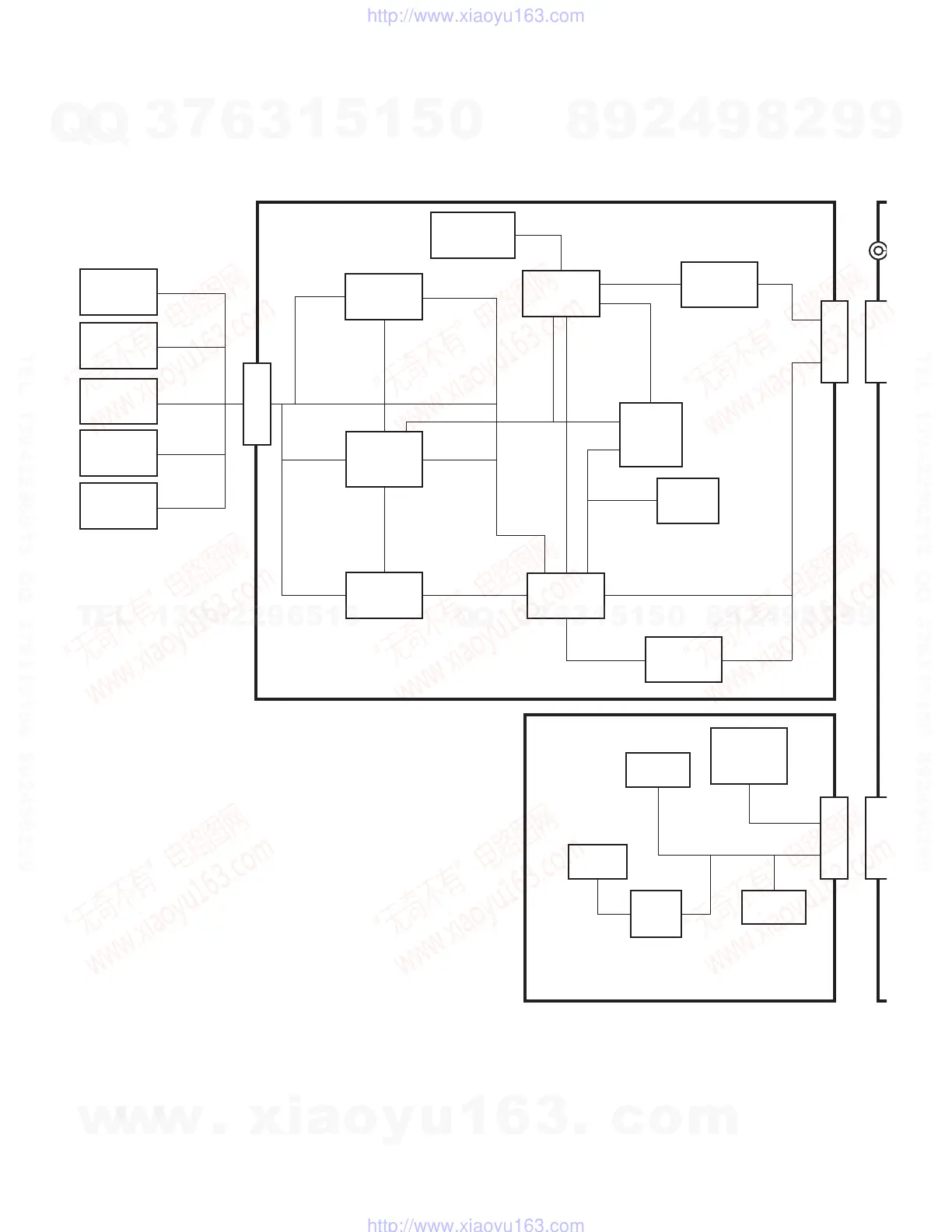

Block diagram
J1
ANT
CN101CN702
VREF
IC573
X571
CLOCK GEN.
SCK
IC502
EPROM
MP3DA
MP3CK
S601 to S603
S605 to S617
SD601,SD602
KEY MATRIX
KEY0
KEY1
KEY2
IC601
LCD
DRIVER
LCD1
COM1
to COM10
S1 to S73
LCDCL
LCDDA
LCDCE
IC602
REMOCON
REMOCON
JS601
ENCODER
ENC1
ENC2
