JVC KD-AVX44 User Manual

2

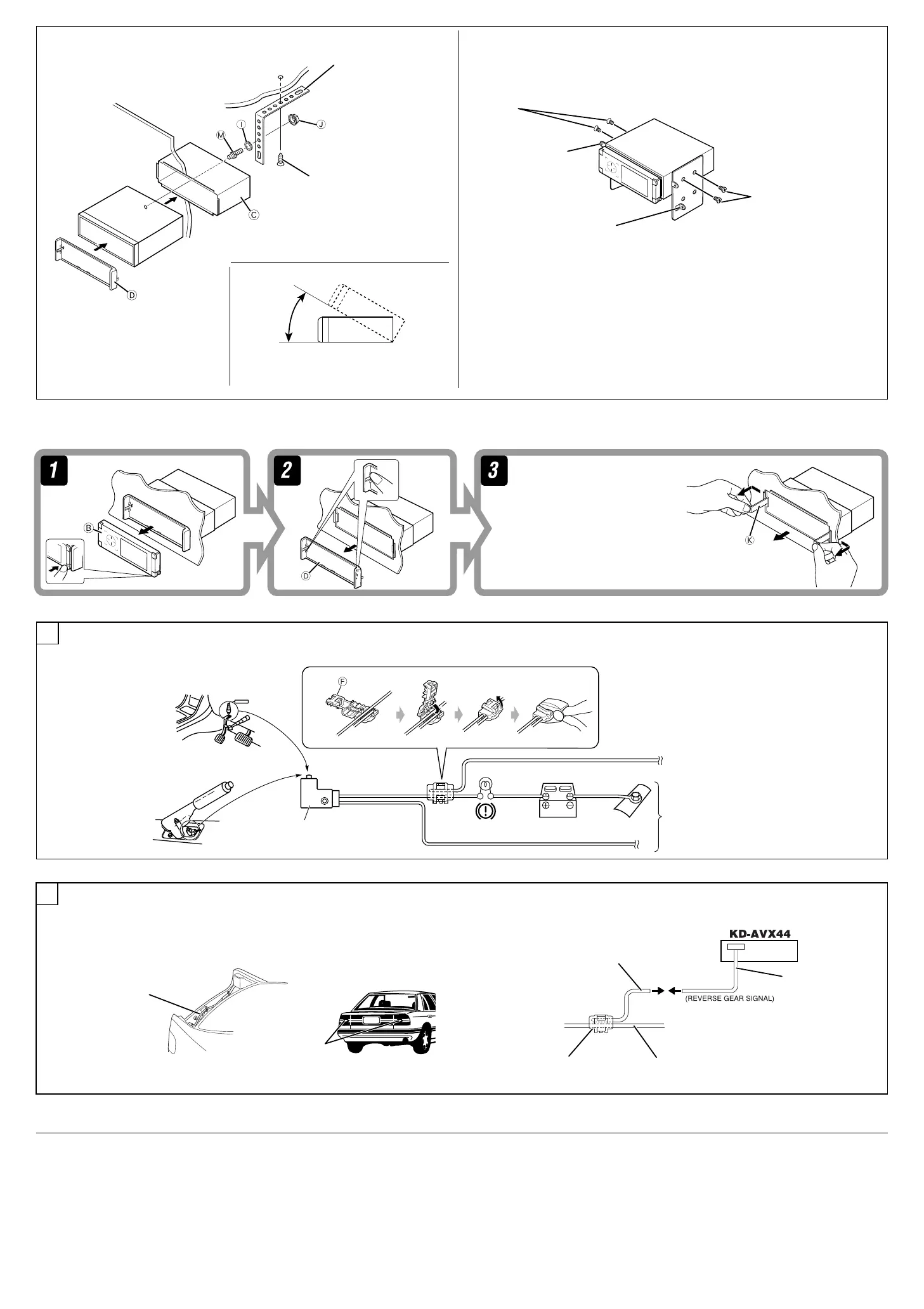

When using the optional stay When installing the unit without using the sleeve
In a car having the “Required space for installation” (see page 1), first remove the car radio and install the
unit in its place.
Screw (option)
Stay (option)
Fire wall
Dashboard
Bracket
*
2
*
2
Not included for this unit.
Flat type screws—M5 x 8 mm
*
2
Bracket *
2
Install the unit at an angle of less than 30˚.
Note: When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws.
If longer screws are used, they could damage the unit.
Removing the unit
Before removing the unit, release the rear section.
Insert the two handles, then pull them as
illustrated so that the unit can be removed.
30˚
Flat type screws—M5 x 8 mm
*
2
Connect the parking brake lead to the parking brake system built in the car.
Parking brake lead (light green)
To metallic body or chassis of the car
Parking brake switch (inside the car)
Parking brake
Connecting the parking brake lead
A
Connecting the reverse gear signal lead (for rear view camera) (REVERSE GEAR SIGNAL)
Locate the reverse lamp lead in the trunk.
To reverse lamp
Reverse lamp lead
Reverse lamp lead
To car battery
Purple with white stripe
Reverse lamps
Extension lead (not supplied)
Crimp connector
(not supplied)
B
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
TROUBLESHOOTING
Insta_KDAVX44[A]1.indb 2Insta_KDAVX44[A]1.indb 2 08.2.4 10:18:44 AM08.2.4 10:18:44 AM

JVC KD-AVX44 Specifications

General

Audio system	DTS / 5.1-channel Dolby Digital / MPEG
MP3 playback	Yes
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	7
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	94 dB
FM band range	87.5 - 108 MHz
LW band range	144 - 279 kHz
Display type	TFT
Display diagonal	3.5 \
File type	AAC/WAV/MP3/WMA, DivX/JPEG/MPEG1, 2

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 52 x 160 mm
