JVC KD-G202 Service Manual

(No.MA039)1-7
SECTION 3
DISASSEMBLY

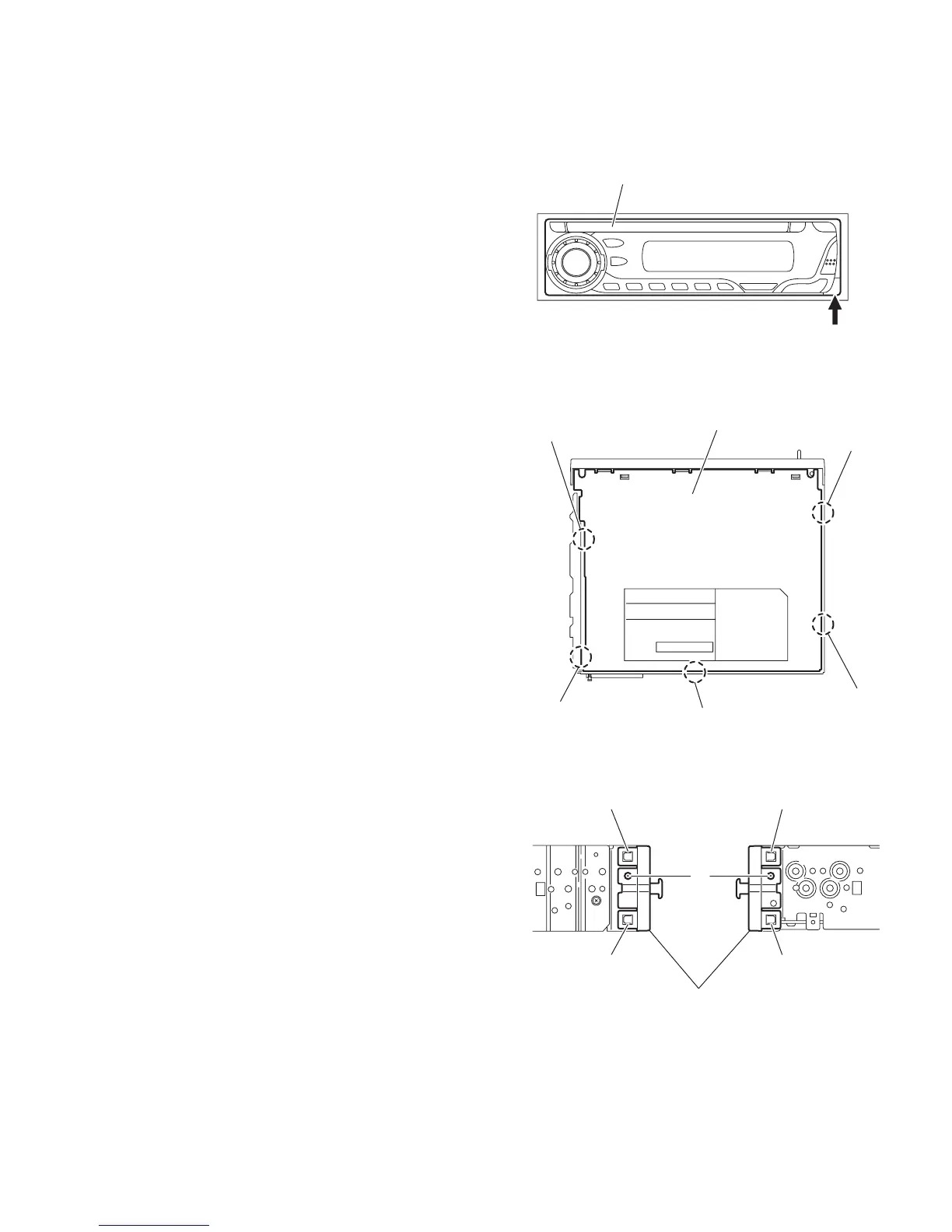

3.1 Main body
3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly and remove the front panel assembly.
Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
(1) From the bottom side of the main body, release the two
joints a, two joints b and joint c.
CAUTION:
Do not damage the main board when releasing the joints using
a screwdriver.
Fig.2
3.1.3 Removing the front chassis assembly
(See Fig.3)
• Prior to performing the following procedures, remove the front
panel assembly and bottom cover.
(1) Remove the two screws A on the both sides of the main
body.
(2) Release the two joints d and two joints e on the both sides
of the main body, then remove the front chassis assembly
toward the front.
Fig.3
Front panel assembly
Detach button
Bottom cover
Joint b
Joint b
Joint c
Joint a
Joint a
Joint d
Front chassis
A
Joint e
Joint d Joint e
