ENGLISH

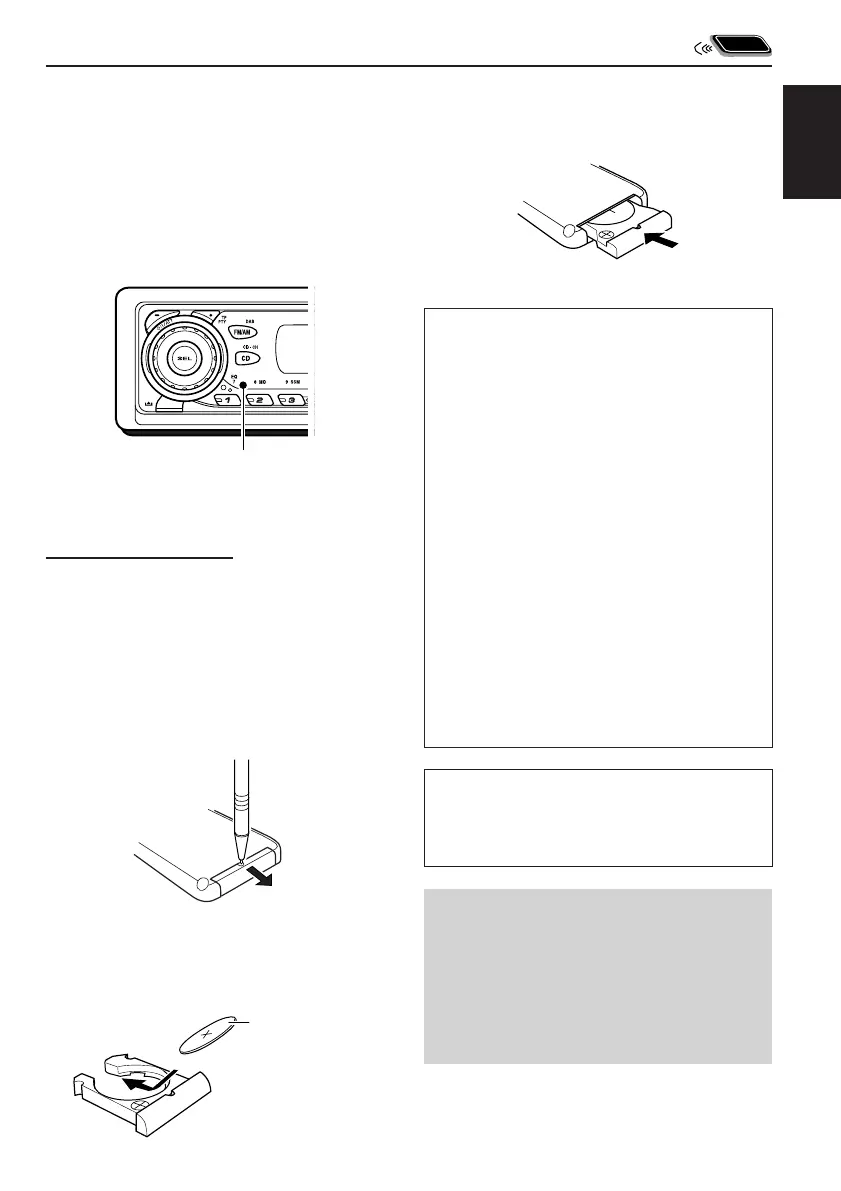

This unit can be remotely controlled as instructed
here (with an optionally purchased remote
controller). We recommend that you use remote
controller RM-RK50 or RM-RK60 with your unit.
(Ex.: When you are using RM-RK60)
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the main unit. Make sure there is no
obstacle in between.
• Do not expose the remote sensor to strong
light (direct sunlight or artificial lighting).
Installing the battery
When the controllable range or effectiveness
of the remote controller decreases, replace
the battery.
1. Remove the battery holder.
1) Push out the battery holder in the
direction indicated by the arrow using a
ball point pen or a similar tool.
2) Remove the battery holder.
2. Place the battery.
Slide the battery into the holder with the
+ side facing upwards so that the battery
is fixed in the holder.
Remote sensor
Lithium coin
battery (product
number: CR2025)
USING THE REMOTE CONTROLLER
(back side)
(back side)
3. Return the battery holder.
Insert again the battery holder by pushing it
until you hear a clicking sound.
WARNING:
• Store the battery in a place where children
cannot reach.
If a child accidentally swallows the battery,
consult a doctor immediately.
• Do not recharge, short, disassemble, or heat the
battery or dispose of it in a fire.
Doing any of these things may cause the battery
to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic
materials.
Doing this may cause the battery to give off
heat, crack, or start a fire.
• When throwing away or saving the battery,
wrap it in tape and insulate; otherwise, the
battery may start to give off heat, crack, or start
a fire.
• Do not poke the battery with tweezers or similar
tools.
Doing this may cause the battery to give off
heat, crack, or start a fire.
CAUTION:
DO NOT leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time. Otherwise, it may be damaged.
KD-G501 is equipped with the steering wheel
remote control function.
If your car is equipped with the steering wheel
remote controller, you can operate this unit
using the controller.
• See the Installation/Connection Manual
(separate volume) for connection to utilize
this function.
EN43-44_KD-G501[E_EX_EU]f.p65 10/4/03, 2:35 PM43

JVC KD-G501 Specifications

Audio Amplifier Specifications

maximum power output front	50 W per channel
maximum power output rear	50 W per channel
continuous power output front	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output rear	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
tone control range bass	±10 dB at 100 Hz
tone control range treble	±10 dB at 10 kHz
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	2.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player Specifications

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions installation size	182 mm × 52 mm × 150 mm
dimensions panel size	188 mm × 58 mm × 12 mm
mass	1.4 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate	320 Kbps

Tuner Specifications

frequency range FM	87.5 MHz to 108.0 MHz
frequency range AM (MW)	522 kHz to 1 620 kHz
frequency range AM (LW)	144 kHz to 279 kHz
usable sensitivity FM	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity (400 kHz) FM	65 dB
frequency response FM	40 Hz to 15 000 Hz
stereo separation FM	30 dB
capture ratio FM	1.5 dB
sensitivity MW	20 µV
selectivity MW	35 dB
sensitivity LW	50 µV
