ENGLISH
17
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

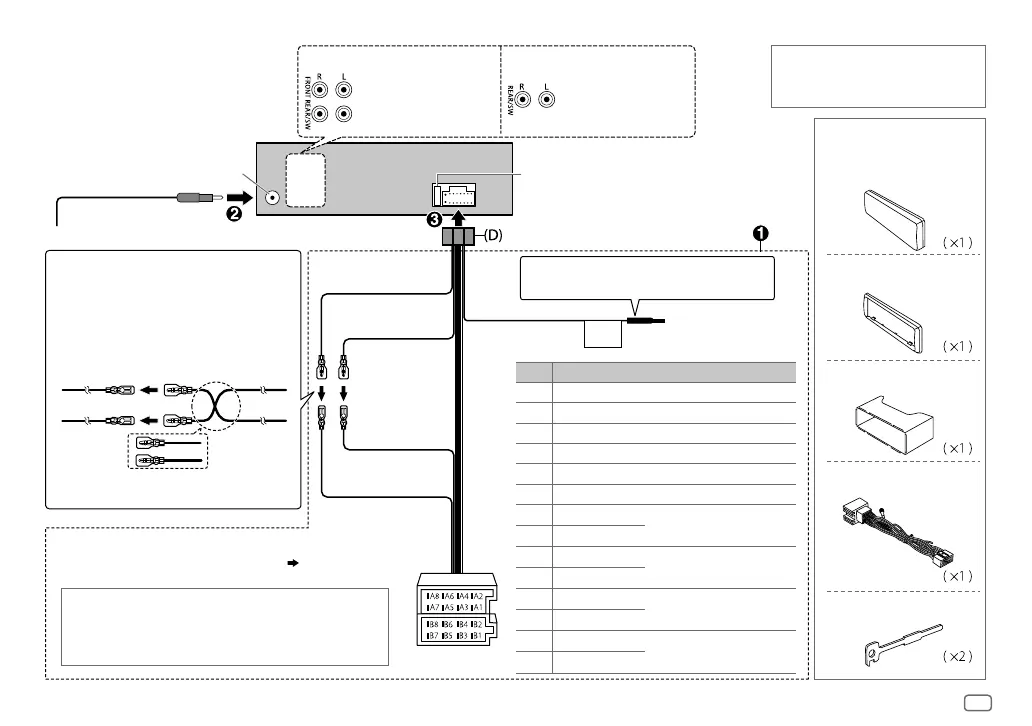

Part list for
installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.
STEERING
WHEEL
REMOTE
KD-R671 KD-R571 / KD-R474 / KD-R472 /
KD-R471
Wiring connection
Fuse (10A)Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel
remote control adapter
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Pin
Color and function
A2 Brown : Mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
B8
Green/black
[
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the
supplied wiring harness as illustrated below.
Unit
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If no connections are made, do not let the wire
come out from the tab.
Rear/subwoofer output
* You can also connect a subwoofer speaker directly without
an external subwoofer amplifier. For setting,
10
.
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially available
custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
Front output
Rear/subwoofer output
JS_JVC_KD_R671_E_EN_7.indd 17JS_JVC_KD_R671_E_EN_7.indd 17 3/8/2015 2:08:52 PM3/8/2015 2:08:52 PM
