JVC KD-R671 User Manual

1818
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
KD-R671 KD-R571 / KD-R476 /
KD-R471
Car fuse block
Ignition switch
Recommended connection
Light blue/yellow
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your
vehicle factory wiring harness
does not have “12V ignition
switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (200mA max.)
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key

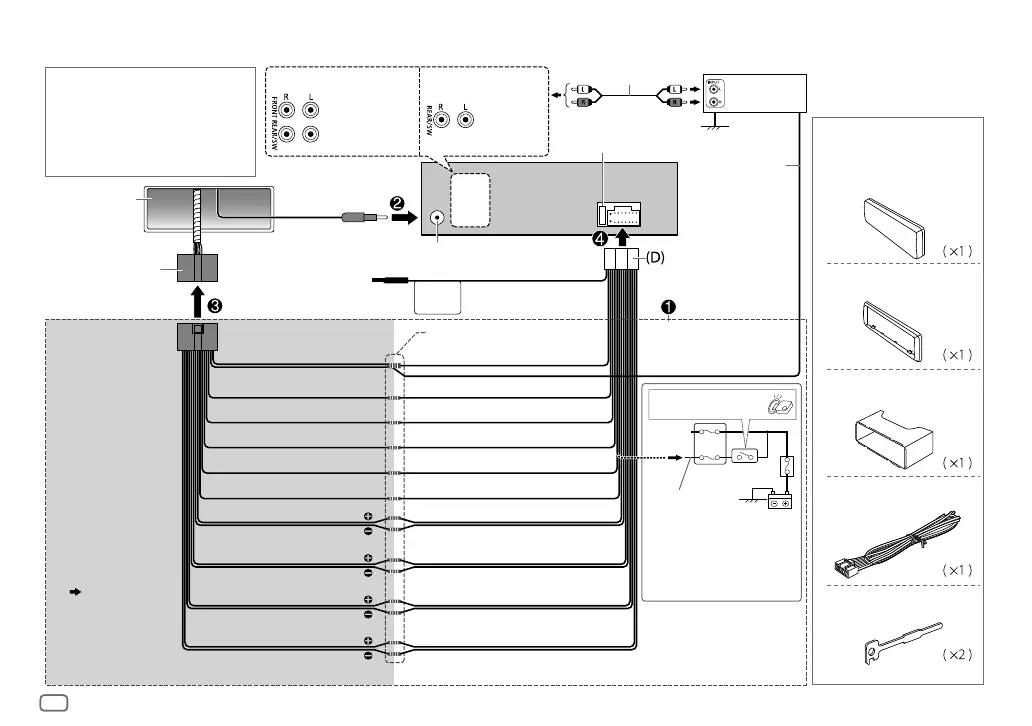

Wiring connection
Green: Rear speaker (left) *
2
Green/black *
2
*
2
You can also connect
a subwoofer speaker
directly using this
lead without an
external subwoofer
amplifier. For setting,
 11 , 12 .
Brown: Tel muting
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
IMPORTANT
We recommend installing the unit with
a commercially available custom wiring
harness specific for your car and leave
this job to professionals for your safety.
Consult your car audio dealer.
Custom wiring harness
(separately purchased)
Front output
Rear/subwoofer
output
Rear/
subwoofer
output
JS_JVC_KD_R671_M_EN_3.indd 18JS_JVC_KD_R671_M_EN_3.indd 18 10/7/2015 4:55:58 PM10/7/2015 4:55:58 PM
