ENGLISH
25
KD-R680S KD-R480
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle factory wiring harness
does not have “12V ignition switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
Output terminals
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Brown (not used)
Blue/white: Remote (200mA max.)

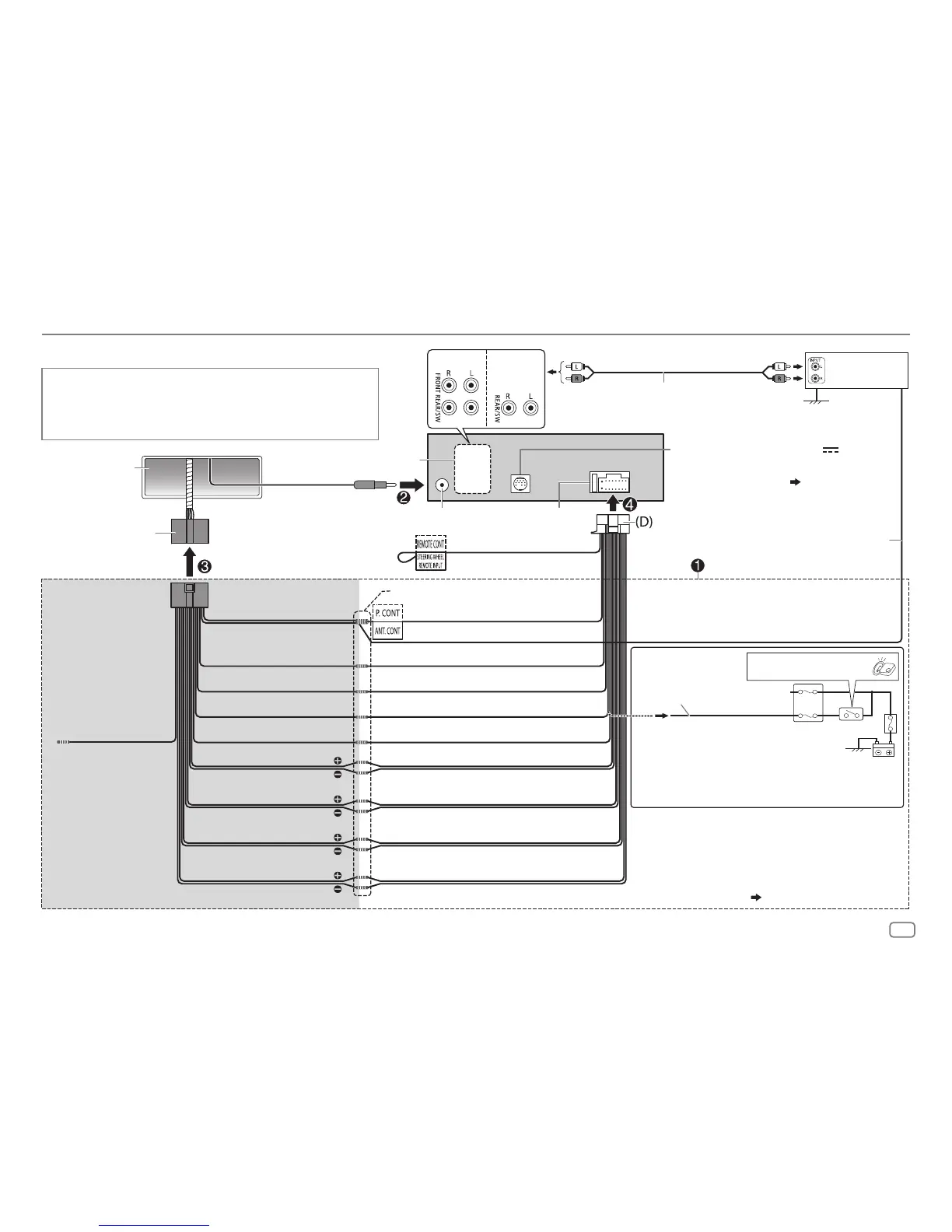

Wiring connection
Green: Rear speaker (left) *
2
Green/black *
2
KD-R680S : Expansion port (12 V 500mA)
To the optional SiriusXM Vehicle Tuner
(commercially available)
( 11)
*
1
Firmly connect the ground wire of the amplifier to the
car’s chassis to avoid damaging the unit.
*
2
KD-R480 : You can also connect a subwoofer speaker
directly using this lead without an external subwoofer
amplifier. For setting,
 16 .
IMPORTANT
We recommend installing the unit with a commercially available custom
wiring harness specific for your car and leave this job to professionals for
your safety. Consult your car audio dealer.
Custom wiring harness
(separately purchased)
Antenna terminal
INSTALLATION/CONNECTION
