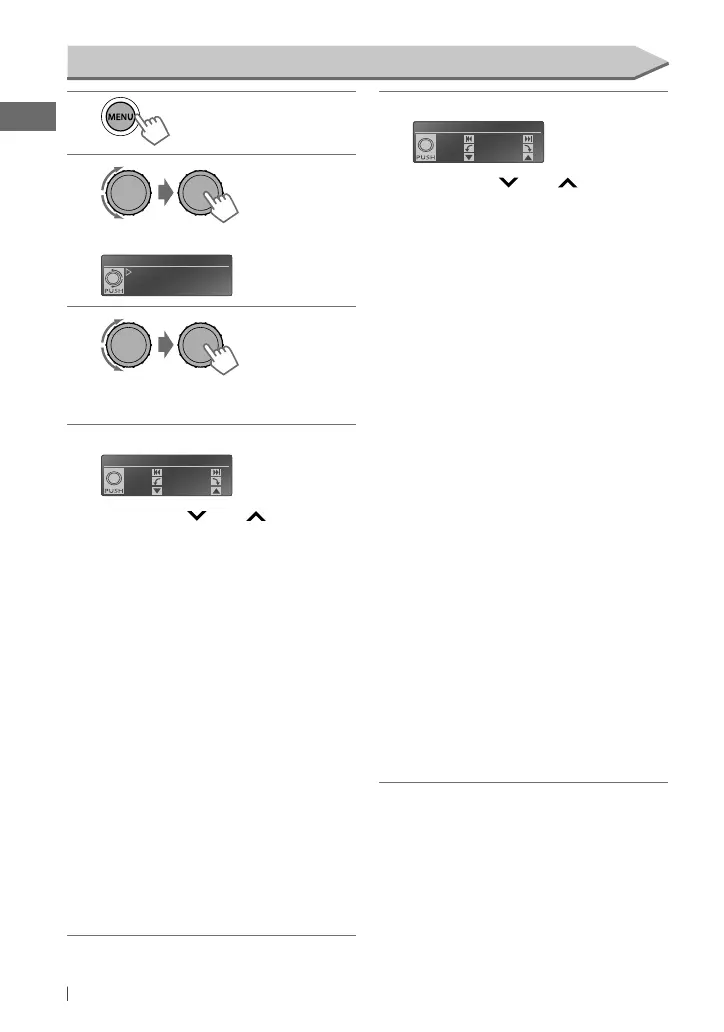

26 ENGLISH
1
2
]
<Audio>
]
<X’over HPF/LPF>
X’over HPF/LPF
Easy
Pro
3
]
Select the adjustment method
[
Easy
/
Pro
].
4
If “Easy” is selected in step 3...
HPF/LPF
Front
Full
cm/inch
1
Press
4
/
¢
to select the
speaker [ Front/ Rear/ Subwoofer * ].
*
Displayed only when <On> is selected for
<Subwoofer On/Off>. (page 29)
2
Turn the control dial to select the
speaker size.
Front/ Rear :
Full
[
Initial
]/
10cm
(
4”
)/
13cm
(
5-1/4”
)/
16cm
(
6-1/2”
)/
17cm
(
6-3/4”
)/
18cm
(
7”
)/
10x15cm
(
4x6”
)/
13x18cm
(
5x7”
)/
15x20cm
(
6x8”
)/
15x23cm
(
6x9”
)/
18x25cm
(
7x10”
)
Subwoofer :
Full
/
16cm
(
6-1/2”
)/
20cm
(
8”
)/
25cm
(
10”
) [
Initial
]/
30cm
(
12”
)/
38cm over
(
15” over
)
3
Press
5
/
∞
to select the
measurement unit [ cm/ inch ].
4
Press the control dial to confirm the
settings.
If “Pro” is selected in step 3...
HPF/LPF
Front
HPF Off
–18dB/Oct
1
Press
4
/
¢
to select the
speaker [ Front/ Rear/ Subwoofer * ].
*
Displayed only when <On> is selected for
<Subwoofer On/Off>. (page 29)
2
Turn the control dial to select the cut
off frequency.
Front/ Rear :
HPF 30Hz — HPF 200Hz : Activates
the High Pass Filter (HPF). Frequencies
lower than the selected frequency are
cut off from the front/rear speakers.
HPF Off
[
Initial
]
: Deactivates HPF
(all signals are sent to the front/rear
speakers).
Subwoofer :
LPF 30Hz — LPF 200Hz :
[ Initial: LPF 80Hz ] : Activates the Low
Pass Filter (LPF). Frequencies lower
than the selected frequency are sent
to the subwoofer.
LPF Off : Deactivates LPF (all signals
are sent to the front/rear speakers).
3
Press
5
/
∞
to select the quality of
HPF/LPF [ –12dB/oct/ –18dB/oct/
–24dB/oct ].
[ Initial:
Front/ Rear : –18dB/oct,
Subwoofer : –12dB/oct ]
4
Press the control dial to confirm the
settings.
[Hold]
Setting the crossover High/Low Pass Filter—X’over HPF/LPF
EN02-37_KD-R921BT_003A_f.indd 26EN02-37_KD-R921BT_003A_f.indd 26 2/18/11 9:52:03 AM2/18/11 9:52:03 AM
