NOTE : When reassembling, be sure to use a new
mylar washer.
1.
2.
3.
Remove the head relay ass'y.
Remove the load arm ass'y.
Remove the Mylar washer h fixing the worm gear.
(see Fig.11)
4.
5.
Remove the screw H fixing the loading motor ass'y.
(see Fig.11)
Remove the two screws I fixing the loading motor
ass'y. (see Fig 11)
NOTE : The set arm ass'y and the mode gear
should be positioned as shown in Fig.12.
3. Attach the cassette holder as shown in Fig.13. In this
case, first pass the tab of the section i through the
mechanism j, then attach the cassette holder in the
direction shown by the arrow.
Removing the loading motor ass'y
(see Fig. 11)
(Procedures for reassembling)
1.
2.
Insert the mode gear into the sub chassis ass'y.
Install the sub chassis ass'y and secure it with the
two screws C and D as shown in Fig.12.
Loading motor ass'y
Worm gear
Motor bracket
H
h
I
Sub chassis ass'y

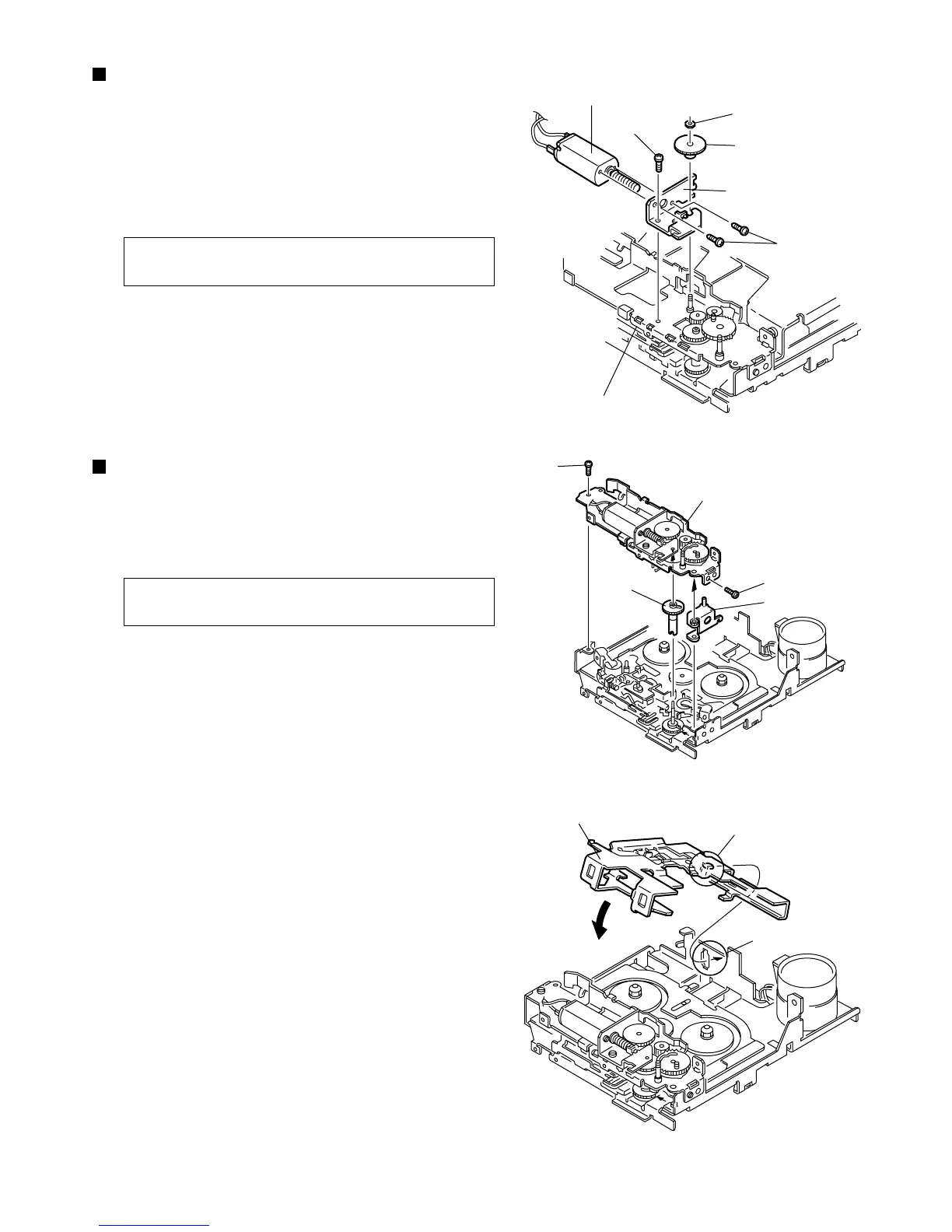

Fig.11
C
D
Sub chassis ass'y
Mode gear
Set arm ass'y
Fig.12
Cassette holder
i
j
Fig.13
