(No.49834)1-7

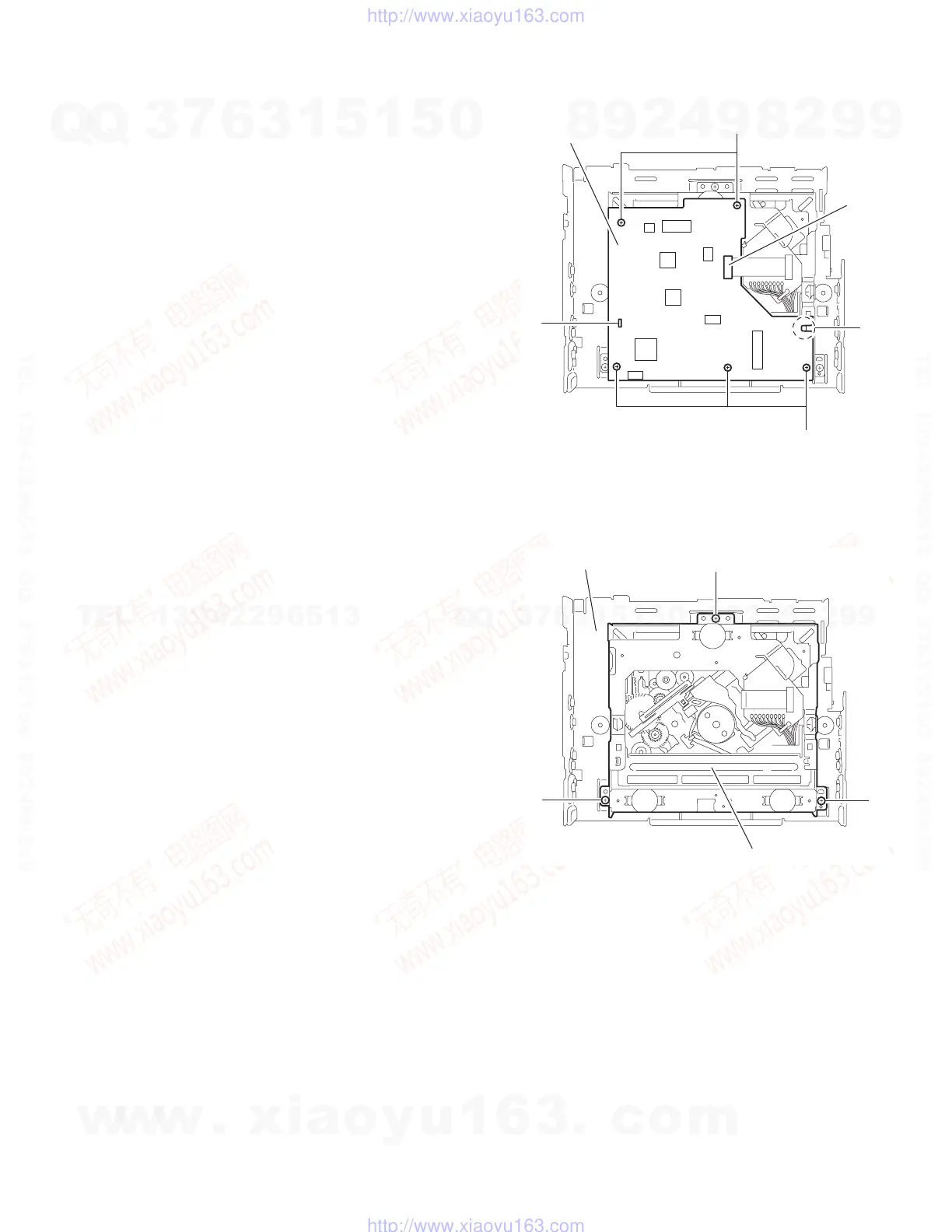

3.1.3 Removing the mecha control board
(See Fig.7)
• Prior to performing the following procedures, remove the top
chassis.
(1) Disconnect the card wire from the connector CN601 on the
mecha control board.
(2) Remove the five screws G attaching the mecha control
board.
(3) Release the joints a and b, remove the mecha control
board.
Fig.7
3.1.4 Removing the CD mechanism assembly
(See Fig.8)
• Prior to performing the following procedure, remove the top
chassis.
(1) Remove the three screws H from the inside of the top chas-
sis and remove the CD mechanism assembly.
Fig.8
CN601
b
a
G
G
Mecha control board
H
HH
CD mechanism assembly
Top chassis
