ENGLISH
19
STEERING
WHEEL
REMOTE
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
*
1
Firmly connect the ground wire
of the amplifier to the car’s
chassis to avoid damaging the
unit.

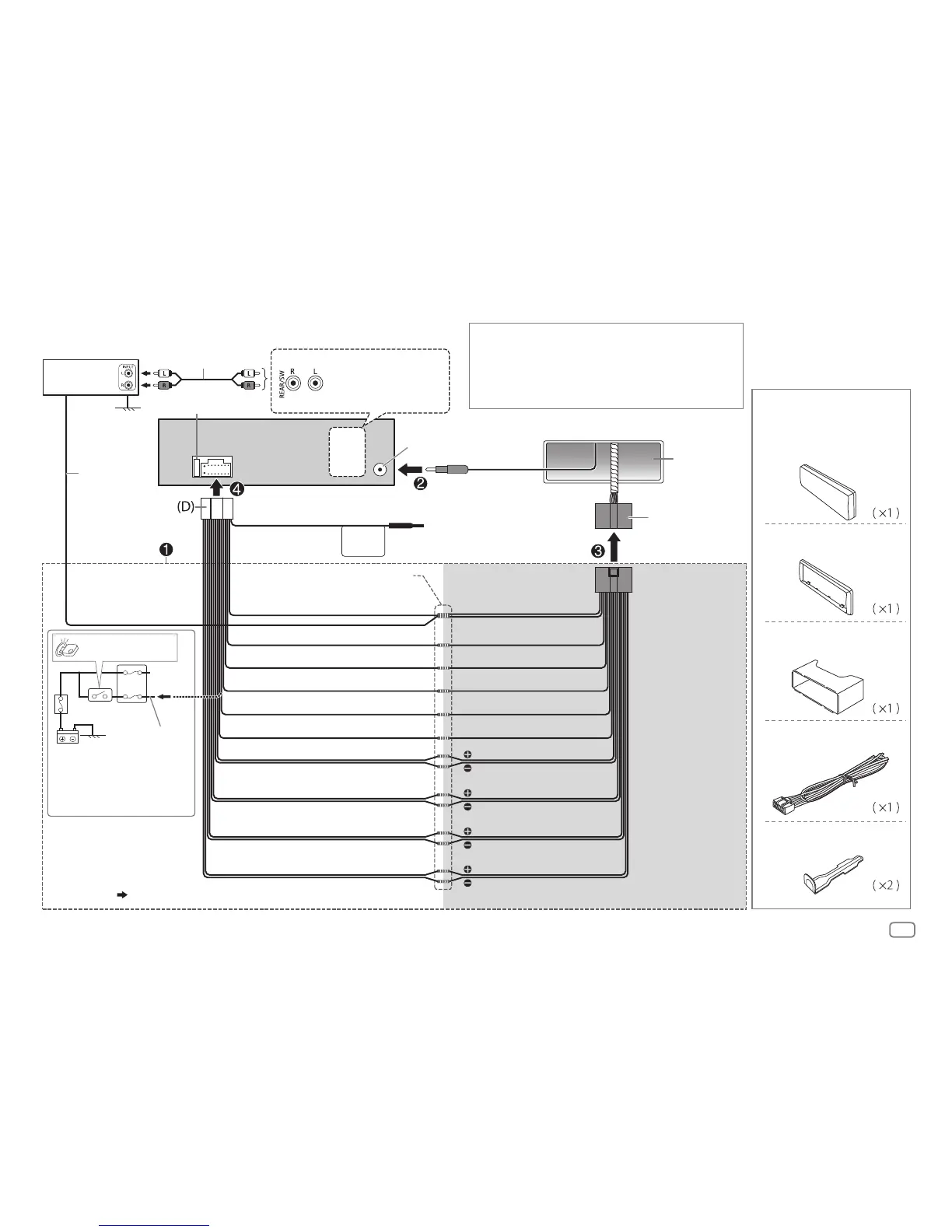

Wiring connection
Car fuse block
Ignition switch
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your
vehicle factory wiring harness
does not have “12V ignition
switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
*
2
Green/black *
2
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Brown: Tel muting
Blue/white: Remote (200mA max.)
Light blue/yellow
To the steering wheel
remote control adapter
*
2
You can also connect a
subwoofer speaker directly
using this lead without an
external subwoofer amplifier.
For setting,
 12 .
JVC Amplifier
*
1
Custom wiring harness
(separately purchased)
Recommended connection
Rear/subwoofer output
IMPORTANT
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
