KS-AX4700
1-7
Test method
1.
.
Check the voltage and frequency of the secondary
toroidal coil.
2.
Measure the secondary toroidal coil, if the standard
frequency value of 36.0 kHz ± 50 Hz is not attained,
measure the R60 terminal, then adjust the SV01 so
that the R60 terminal becomes 36.0 kHz ± 50Hz.
Note:

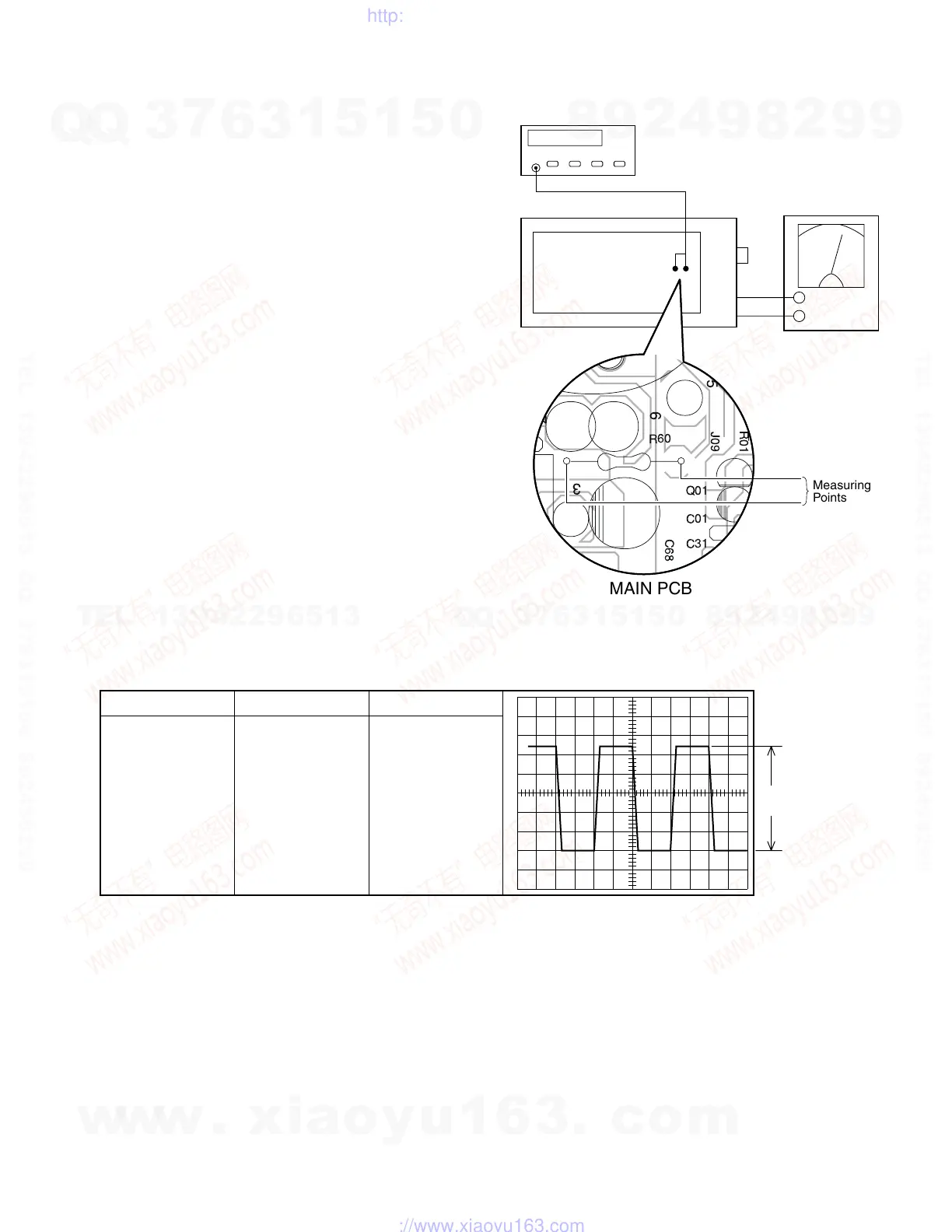

TEST SET
FREQUENCY COUNTER
MAIN PCB
(+)
(
-
)
POWER SUPPLY
14.4V
75Vp-p
±2.5V
DC/DC CONVERTER SECOND GENERATOR SWITCHING
TEST ITEM
VOLTAGE TEST
FREQUENCY CHECK
75Vp-p±2.5V
36.0KHz±50Hz
OSCILLOSCOPE
VOLT/DIV: 10
TIME/DIV: 10mcec
SPECIFICATION CONDITION
FREQUENCY:36.0kHz ± 50Hz
VOLTAGE VALUE:75Vp-p ± 2.5V
When measuring, adjust and apply power
with no signal or load on each board.
