2.3 Removing the CCFL board (see Fig. 9 to 12)
(1) Remove the bottom cover.
(2) Then remove the Main board.
(3) From the bottom side of the main unit, remove the 4 screws
G retaining the CCFL cover.
(4) Then remove the insulation sheet on top of the CCFL
board.
(5) Remove the 4 screws H retaining the CCFL board.
(6) Remove the CCFL board by sliding it a little towards the
arrow mark.

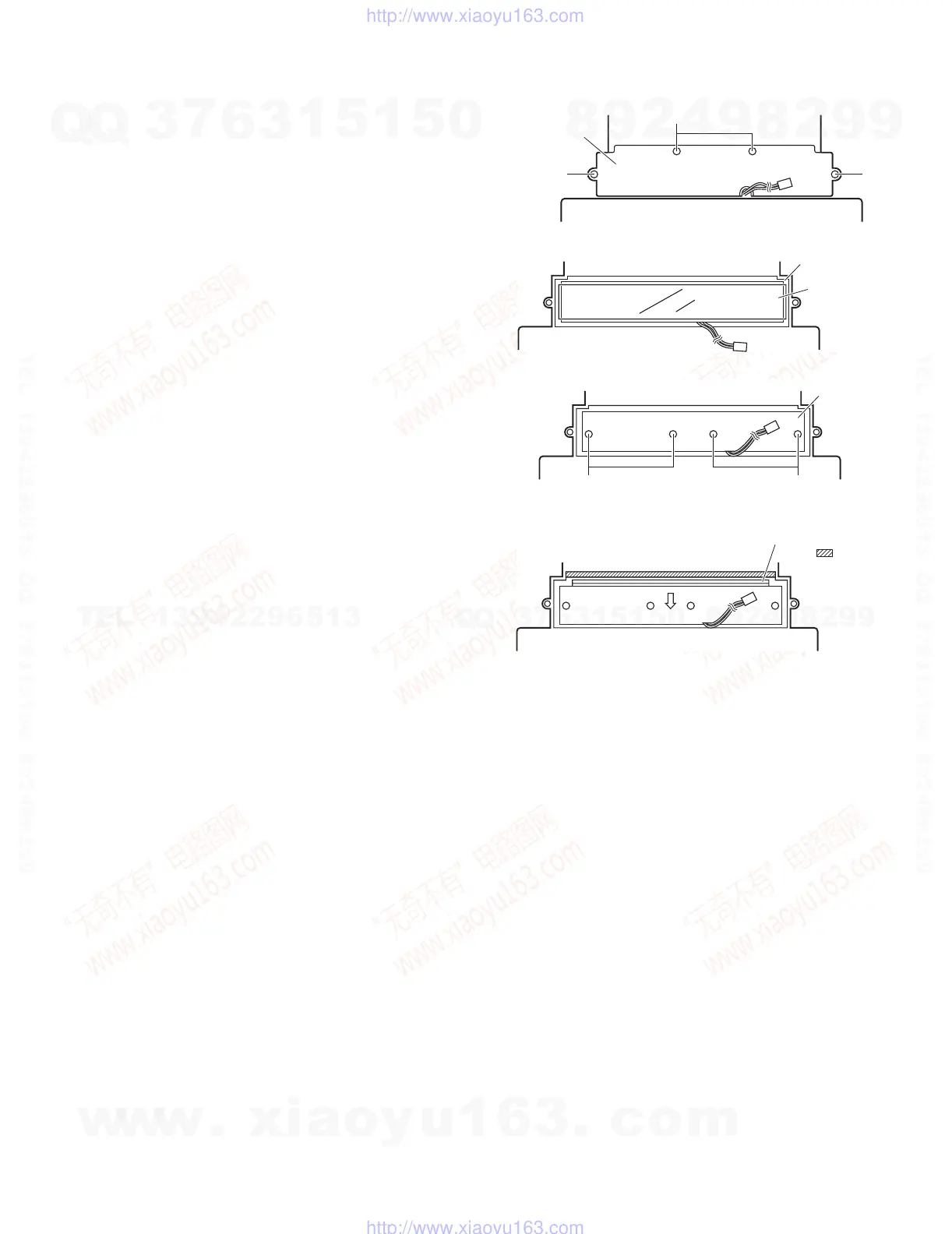

Fig.9
Fig.10
Fig.11
Fig.12
CCFL cover
G
G G
CCFL PCB
Insulation sheet
H
CCFL PCB
H
This section is cought
by the portion.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

JVC KS-AX7300 Specifications

General

Channels	4
Total Power Output	400 W
RMS Power at 4 Ohms	70 W x 4
RMS Power at 2 Ohms	100W x 4
Bridged RMS Power at 4 Ohms	200W x 2
Total Harmonic Distortion (THD)	0.05%
Frequency Response	5 - 50000 Hz
Crossover Frequency	50Hz - 200 Hz
Bass Boost	0-12dB
Amplifier Class	Class AB
