JVC KW-R515 User Manual

15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
Purple/black
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not have
“12V ignition switch” wire.
Separate red wire

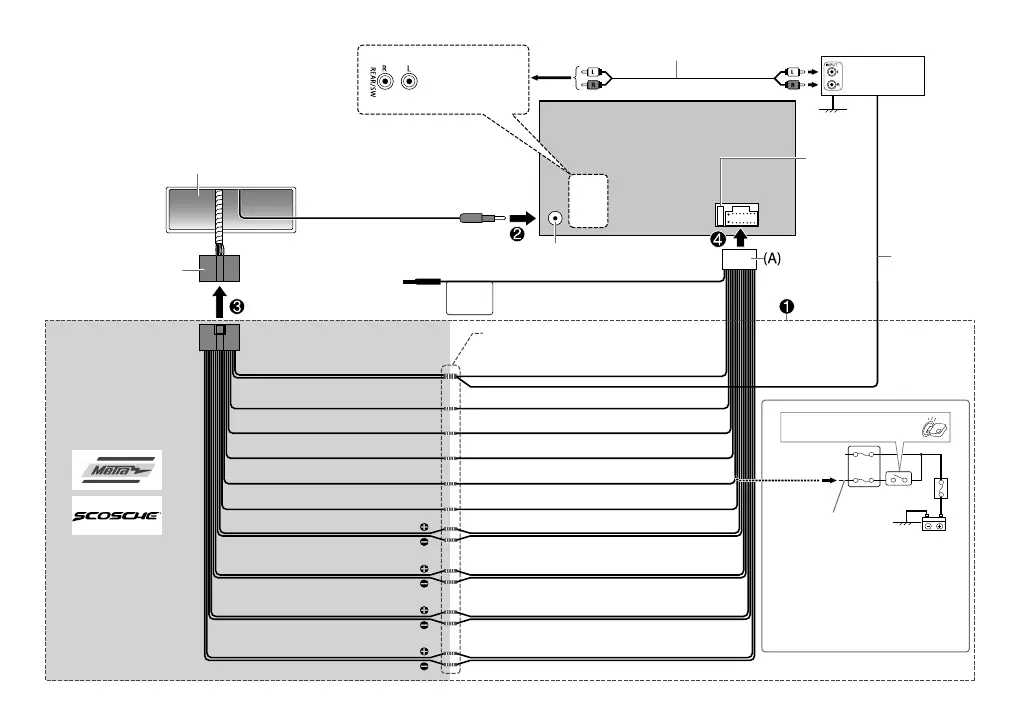

Wiring connection
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Brown: Tel muting
Blue/white: Remote (200mA max.)
Rear/subwoofer
output
JS_JVC_KW_R515_U_EN_1.indd 15JS_JVC_KW_R515_U_EN_1.indd 15 4/7/2014 12:44:17 PM4/7/2014 12:44:17 PM

JVC KW-R515 Specifications

General

Brand	JVC
Model	KW-R515
Category	Car Receiver
Language	English
